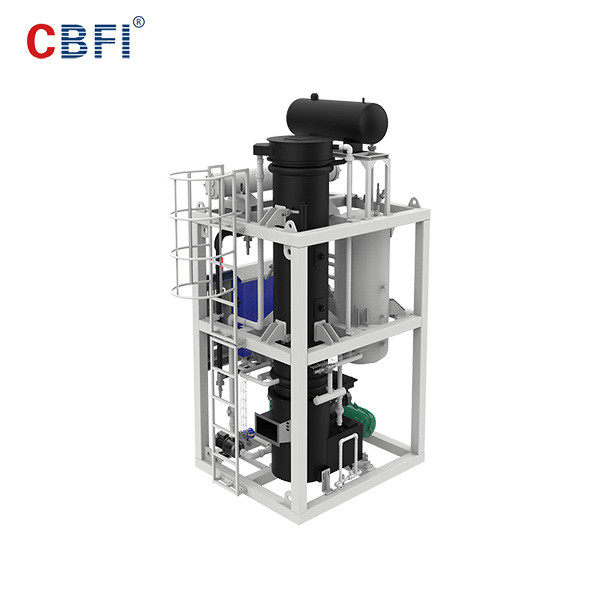

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system
CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

Large Image :  CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

Product Details:
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

Description
Compressor: Germany Compressor Tube Ice Diameter: 35mm, 28mm, 22mm
Evaporator: Stainless Steel 304 Seamless Pipe Cooling Way: Water Cooling
Daily Capacity: 1000kg/24h PLC: Siemens System
Material: 304 Stainless Steel
High Light:

Tube Ice Machine

,

Ice Tube Maker

CBFI stainless steel evaporator energy saving 1 ton tube ice machine for ice seeling



1. Tube ice picture

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system 0







2. CBFI 1 ton tube ice machine

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system 1



1 ton tube ice machine



CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system 2



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5



5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system 3



4. Machine base detail :

* Tube ice size : 22mm, 28mm, 35mm for option , the length of the tube ice can be designed     as customer need

* Long life span: The tube we will import the Japan 304 SUS Seamless steel pipe,which         can at least use for 20years.

* World famous brand components: most of the machine components we will use the world     famous brand like Germany compressor , South Korea LG electricity components,         Denmark danfoss Expansion valve ect,.





   CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system 4

5. Machine parameters

1 ton / 24 hours ice tube machine parameters

Working condition Power supply 380v/50Hz/3phase , 380v/60Hz/3phase ,
220v/50Hz/3phase, 220v/60Hz/3phase
Refrigerant R507 / R 404a
Cooling way Water cooling / Air cooling
Max. Ambient temp. +45 ℃
Supply water temp 23 ℃
Evaporating temp. -12 ℃
Condenser temp. +40 ℃
Relative humidity 85 %
Noise 55dB



Compressor Brand Name (From Germany)
Type Semi-Hermetic Piston type
Product Model 4EES-4 (4HP)
Power 7.2 kw
Refrigerating Capacity 17.8 kw
Cooling Tower Brand Name CBFI
Size Φ930*1640 mm
Power of Cooling Water Pump 1.1 kw
Power of Cooling Fan 0.48 kw
Cooling Water Consumption 0.05 m3/h
Ice making water Circulating pump Brand Name Nanfang
Power 0.55 kw
Ice Cutter Motor Brand Name Rador
Power

0.75 kw
