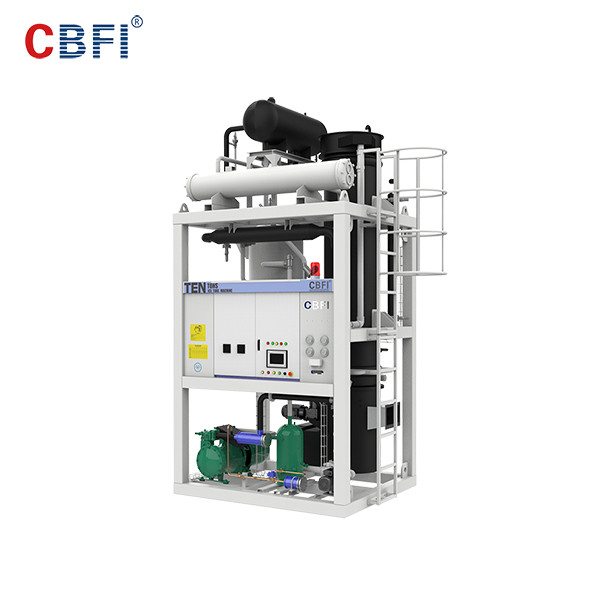

Full Automatically Ice Tube Machine For Freezing Drinks And food

Full Automatically Ice Tube Machine For Freezing Drinks And food
Full Automatically Ice Tube Machine For Freezing Drinks And food Full Automatically Ice Tube Machine For Freezing Drinks And food Full Automatically Ice Tube Machine For Freezing Drinks And food

Large Image :  Full Automatically Ice Tube Machine For Freezing Drinks And food

Product Details:
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV10
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD1 - USD999999
Packaging Details: Standard wooden case for the 1 ton Tube ice machine
Delivery Time: 30 work days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 60 set per month

Full Automatically Ice Tube Machine For Freezing Drinks And food

Description
Compressor: Germany / Germany Bock/ America Copeland Solenoid Valve: Italy Castel
Refrigerant: R507/R404a Ice Shape: Tube Ice/ Shell Ice
Ice Diameter: 22mm; 28mm; 35mm Evaporator Material: Stainless Steel SUS304
Daily Production: 1 Ton Machine Weight: 900KG
Voltage: 380/3/50
High Light:

Tube Ice Machine

,

Ice Tube Maker

Full Automatically Ice Tube Machine For Freezing Drinks And food






Product Description



1.  Ice tube machine for produce food grade ice too, tube ice is edible ice.
2.  Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,Length of ice is about 30mm to 50 mm.
3.  Daily capacity of ice tube machine can be from 1ton to 40tons.
4.  Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.

Full Automatically Ice Tube Machine For Freezing Drinks And food 0



TV10 1 ton Tube Ice Machine Parameters
Name Unit Parameter
Tube Diameter mm Φ22 Φ28 Φ35





Compressor Parameter

Model 4EES-4
Cooling Capacity(kW) 11.04
Power(kW) 4.1



Condenser

Model WN-5
Heat Exchange(kW) 19.4
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -12
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant   R507
Voltage V/P/HZ 380/3/50



Motor Power

Ice Cutting Motor(kW) 0.75
Recircling Pump(kW) 0.37



Cooling Tower

Model LX-8
Power(kW) 0.25



Cooling Pump

Model GD40-15
Power 1.1
Cooling Fan Power Power(kW) 0.18
Water Cooling Machine Dimension L*W*H(mm) 1100*900*1780
Refrigerant Quantity kg 50 53 58
Machine Weight kg 900


Application:
1.  It can be directly eaten
2.  It can be used to freeze drinks
3.  Mix wines
4.  Cool food stuffs
5.  Make ice pastries and keep fresh


Features:
1.  Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
2.  Health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
3.  Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
4.  Full automatically: PLC system controls the whole ice making process.

Full Automatically Ice Tube Machine For Freezing Drinks And food 1

Note:
The above information is according to adopt water cooled condenser.
Size of machine is before installation. Size of machine is the same with the size before
installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.

Machine running condition:
1. water temperature: 28Centi degree,
2. evaporate temperature: -12Centi degree,
3. condensing temperature: 40Centi degree,
4. reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
Full Automatically Ice Tube Machine For Freezing Drinks And food 2




Our Services



1. We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
2.The warranty of the whole machine is 12 months.
 Full Automatically Ice Tube Machine For Freezing Drinks And food 3

Packaging & Shipping



1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.




FAQ


some questions and answers here:

1.  Q: are you add refrigerant in the ice machine?
     A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.

2.  Q: do you test the ice machine in your factory?
     A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.

3. Q: can you load ice machine into container?
    A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.

4. Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
    A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
