5 Tons Tube Ice Maker With Bin / CBFI Freon Refrigeration System

Basic Information
Place of Origin: Guangzhou, Guangzdong, China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV50
Minimum Order Quantity: 1 set
Price: USD10000 - USD999999
Packaging Details: Standard wooden case
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 60-70 set per month
Contact Now
Detail Information
Machine Brand: CBFI Original Place: Guanzghou, China
Machien Name: 5 Tons Daily Ice Production Capacity Tube Ice Machine Solenoid Valve: Italy Castel
Refrigerant: R22/R404a Ice Shape: Tube Ice/ Shell Ice
Ice Diameter: 22mm; 28mm; 35mm Cooling System: Air Cooled, And Water Cooled
Ice Length: 30mm To 50mm Payment Terms: CIF, CFR, FOB, Etc.

Product Description

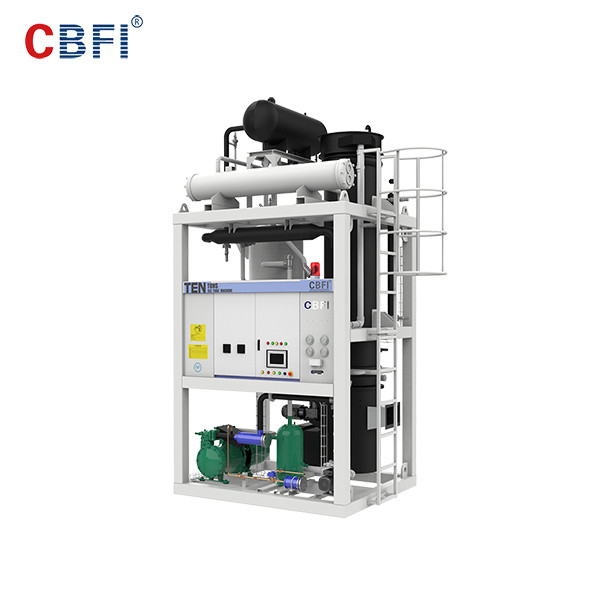

China Guanzghou CBFI Freon Refrigeration System 5 Tons Tube Ice Machine With Ice Bin



Technical Parameters of 5 Tons Tube Ice Machine

Machine Name 5 ton daily ice prodution capacity tube ice machine
Machine Dimension 1600*1400*2250 mm
Machine Model TV50
Machine Weight 18000kg

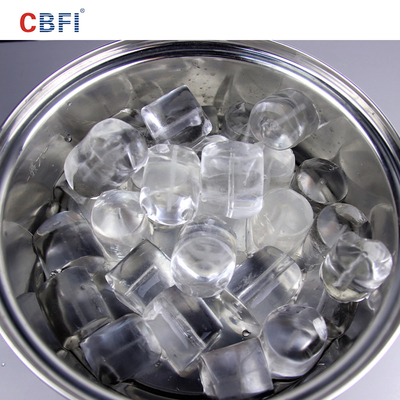

Ice shape tube
ice diameter 22mm/28mm/35mm
ice density 500kg/m³~550kg/m³
Ice Mould Material

Seamless Stainless Steel 304 Tube

(Made In Japan)

Material of evaporator stainless steel
Power supply 380V-50Hz-3P
Refrigerant R22/ R404/ R507
Cooling way water cooling
Compressor German Bitzer
Total Power consumption : 80 kw.h per ton ice

5 Tons Tube Ice Maker With Bin / CBFI Freon Refrigeration System

Supporting Equipment



  • 500 kg Ice Bin
  • Ice Storage room(4x3x2.5M)
  • Ice Packing Equipment
  • 500 L/H Water Filter
  • 500 L SUS Water Tank(with water pump)
  • 420L/H Water Chiller(with insulated tank)
  • Ice Crusher


5 Ton Tube Ice Factory Drawing



5 Tons Tube Ice Maker With Bin / CBFI Freon Refrigeration System



From above drawing, the size of 5 ton tube ice factory is 12*6m, there is a whole set of machine equipment including ice bin, cold room, water chiller, water treatment, tube ice machine, ice packing equipement, etc.



Advantages of CBFI Tube Ice Machine



  1. CBFI tube ice machine adopts oil balance equipment and oil reservoir. It is to keep enough oil to come back to compressor and lubricate it .Maybe it is small things, it is very important for compressor to run for long time.
  2. Evaporator is very important to tube ice machines. CBFI Evaporator adopts PU insulation that is formed with stainless steel cover together. It can improve refrigeration capacity and save power, and also the material can keep ice clean.
  3. Our machines’ cutting knifes are absolutly vertical and keep rotating at constant speech to make water frozen evenly.
  4. What’s more, our machines have the heat exchanger, which can lower the temperature of refrigerant going to the expansion valve and improve the gasification effect of refrigerant going back to the compressor, and thus it can improve the efficiency and ice production.

Q&A


some questions and answers here:

1.  Q: Can you offer the ice factory drawing sample?
     A: Of cource, we can offer you the drawing sample first, and then we will revise the drawing based on the size of your factory area.


2. Q: can you load ice machine into container?
    A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.

3. Q: Your machine can fit solar power?
    A: Yes, all machines can equipped with solar power.
