Product Details:
|
| Capacity: | 1-30 Ton | Compressor: | Frascold, Bitzer, Copeland |
|---|---|---|---|
| Material: | 304 Or 316 Stainless Steel | Application: | Industrial Or Commercial |
| Cooling Way: | Water Cooling/Air Cooling | Ice Diameter: | 22mm,28mm,35mm |
| Ice Making Cycle: | 16~22 Min | Refrigerant: | R404a/R507 |
| High Light: | Tube Ice Machine,Ice Tube Maker |
||

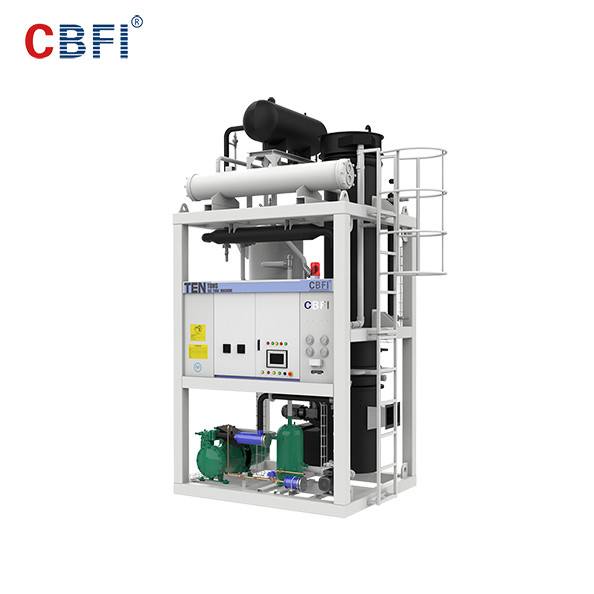

1 - 30 Ton Daily Capacity Tube Ice Machine For Bar , Restaurant , Hotel
The tube ice machine has the advantages of small footprint, fast start-up, and easy operation. It is suitable for fishery, food processing, railway transportation and other industries. The working principle of the tube ice machine is shown in Figure 1. Its ice-making evaporator is also called a generator. In fact, it is a vertical shell-and-tube heat exchanger with a special structure, and the ice is continuously sent by the circulating water pump in the pipe.
Commercial Tube Ice Machine
1. Daily Capacity : 1 ~ 30 ton
2. Ice making cycle : 16 ~ 30 mins
3. Ice Diameter : 22mm,28mm,35mm.
Tube Ice Machine Features:
Health: All CBFI Tube Ice Machine Evaporator are food grade stainless steel 304(SUS304) material, come from Japan. Same daily capacity may have different price according to the different ice diameter and gas.
Easy to Operate : Germany Siemens CPUmonitor the machine making ice and drop ice automatically, machine working condition display on the touch screen clearly, operate the machine by touch screen like your smart phone.
Turn key project : CBFI supply every necesary for completed tube ice plant to our customer, like ice storage bin for ice packing, ice packing machine and ice storage room. Customer just need to prepare the power and water supply when you got the machine.
CBFI 10 Tons Tube Ice Machine In Djibouti - CBFI
http://www.icemakerchina.com/projects/cbfi-10-tons-tube-ice-machine-in-djibouti.html
Tube Ice Maker Machine Models for Reference
| Item No. | Production | Compressor Rated Power | Circulating Water Pump Power | Cooling Water Pump Power | Cooling Fan Power | Ice Cutter Motor Power |
Machine Dimension |
Weight of Machine |
| Ton/24H | KW | KW | KW | KW | KW | L*W*H | KG | |
| TV10 | 1.0 | 3.69 | 0.37 | 1.1 | 0.18 | 0.75 | 1320*950*1800 | 900 |
| TV20 | 2.0 | 7.11 | 0.55 | 1.1 | 0.18 | 0.75 | 1400*1100*1800 | 1200 |
| TV30 | 3.0 | 9.68 | 0.55 | 1.1 | 0.37 | 0.75 | 1500*1100*1950 | 1500 |
| TV50 | 5.0 | 17.47 | 0.55 | 1.5 | 0.75 | 0.75 | 1600*1250*2200 | 1800 |
| TV100 | 10.0 | 30.89 | 0.75 | 2.2 | 1.5 | 1.5 | 1700*1300*2200 | 3500 |
| TV150 | 15.0 | 42.6 | 1.5 | 2.2 | 2.2 | 1.5 | 3000*1500*2200 | 4250 |
| TV200 | 20.0 | 53.2 | 1.5 | 2.2 | 2.2 | 1.5 | 3500*1500*2200 | 6500 |
| Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature |
Installation:
1. Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.
2. Installing by our engineers:
1. We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.
2. Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.
3. All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
4. 2~ 3 workers are required to assist the installation for big project.
We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
