Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

Basic Information
Place of Origin: Guangzhou,China
Brand Name: CBFI
Certification: CE, ISO
Model Number: BBI
Minimum Order Quantity: 1 set
Price: $100,000
Packaging Details: International Standard Wooden Case
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detail Information
Compressor: Germany Bitzer Cooling Way: Water Cooling
Size Of Ice: 5kg,10kg,15kg,20kg…… Evaporator: Coil Pipe
Daily Capacity: 1ton To 120ton Refrigerant: R22 Or R404a Or R507
Packing: International Standard Wooden Case Electrical Components: South Korea LG
Certification: CE

Product Description



CBFI Energy Saving Coil Pipe Evaporator with German Bitzer Compressor Block Ice Machine



1. Block ice:

For Africa: 5kg, 10kg, 15kg, 20kg, 25kg more popular

For Mid-East: 15kg, 20kg, 25kg more popular

For Asia: 25kg more popular



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

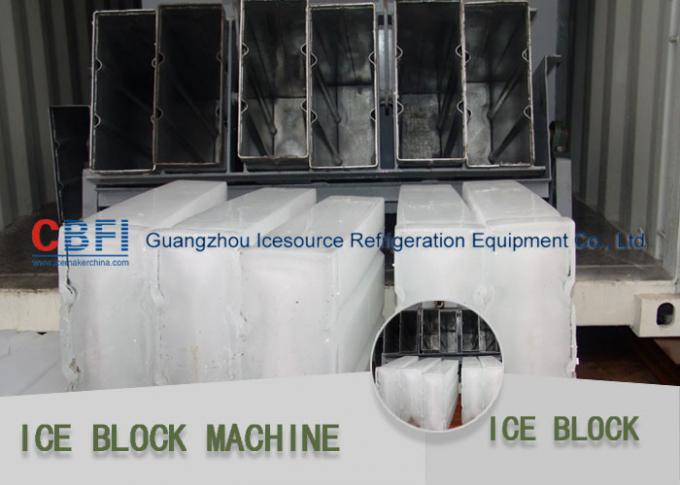

5kg block ice



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

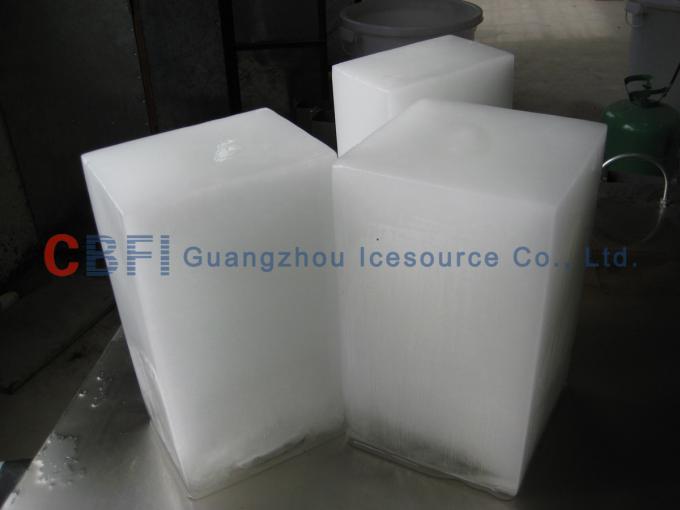

25kg block ice



2. Application:

  • Ice factory of the ports and docks,
  • Fressh for aquatic products
  • Distance transportation
  • Fishery
  • Food preservation
  • Special areas of cooling
  • Ice sculpture.





3. Machine details:

  • Capacity: 1 ton to 100 ton per 24 hours
  • Power consumption: 75kw.h per ton
  • Working condition: environmental temperature 32℃,water supply temperature 20℃

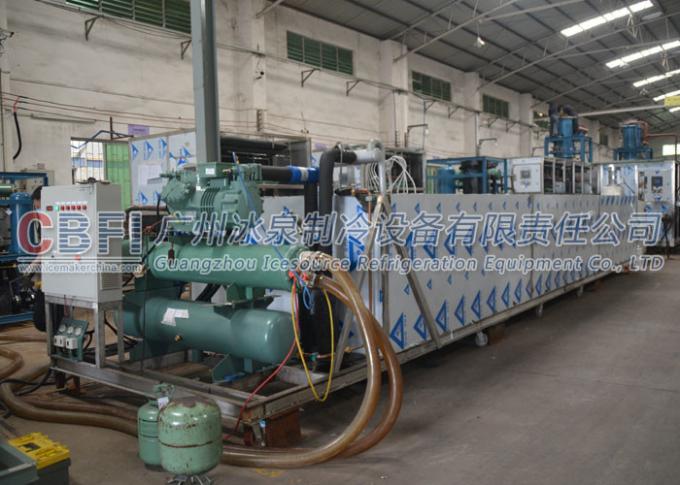

1 ton block ice machine



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

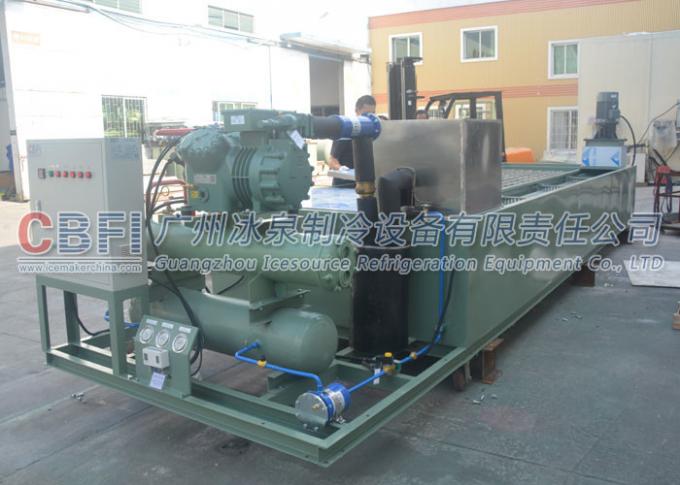

5 ton block ice machine



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

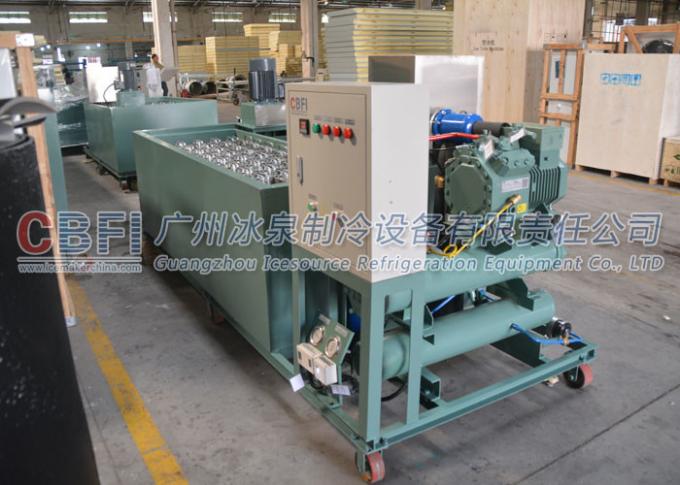

10 ton block ice machine



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor





4. Machine modle:



Model Ice Making
Capacity
Rated
Power
Agitator
Power
Cooling Pump
Power
Cooling Fan
Power
Machine
Dimension
Weight
NO. Ton/24h KW KW KW KW L*W*H(mm) KG
BBI-01-s2 1 3.92 1.5 1..1 0.18 2600*1400*830 990
BBI-02-s2 2 6.42 1.5 1.5 0.37 3600*1700*795 1100
BBI-03-s2 3 8.66 2.2 1.5 0.56 4320*1670*795 1300
BBI-04-s2 4 11.19 2.2 2.2 0.75 2000*800*1600
/3110*1470*1075
1500
BBI-05-s2 5 13.07 2.2 2.2 0.75 6690*1880*800 1700
BBI-06-s2 6 16.79 3 2.2 0.75 2000*800*1600
/5340*1380*1150
1900
BBI-08-s2 8 19.61 4 4 1.5 8490*2000*1370 2300
BBI-10-m2 10 24 4 4 1.5 2500*1200*2000
/6360*3710*1565
2700
BBI-15-m2 15 47.54 8 7.5 1.5 3100*1200*2000
/9280*2260*1560
3700
BBI-20-l2 20 71.5 8 7.5 2.2 3500*1500*2200
/11560*4200*1565
4700
BBI-30-l2 30 107.7 16 15 4 3500*1500*2200
/11560*5430*1600
6700
BBI-40-l2 40 156 16 15 4.4 2*3500*1300*2200
/11560*7080*1600
8700
BBI-50-l2 50 183.5 16 11 3 2*3500*1300*2200
/14170*7080*1600
10700
BBI-100-l2 100 274.8 30 30 15 4*3500*1300*2200
/12000*13500*1450
21400





5. Machine feature:

  • Ice block machine have brine design, containerized design and direct evaporate design use stainless stee l make ice cans).
  • Ice block machine for producing big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg...... the size all depends on customers' demands.
  • It is big ice so can keep for long time. For some countries, specially, Africa country the power supply is n ot steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
  • Daily capacity of ice block machine can be from 1ton to 100tons.
  • The ice- making tank adopt the Polyurethane foam technology. it promises a good heat insulation.
  • The large ice block machine use the crane to take ice, so the work quantity is small.
  • The integrity design and installation conveniece , it can be used if you install electricity and water.

6. Machine running condition:

  • 1.water temperature: 28 Centi degree
  • 2.evaporate temperature:-12 Centi degree
  • 3.condensing temperature: 40 Centi degree
  • 4.reference valve under 50Hz power supply.
  • Real production of machine will have a little change according to change of water temperature and ambient temperature.

7. Customer cases:

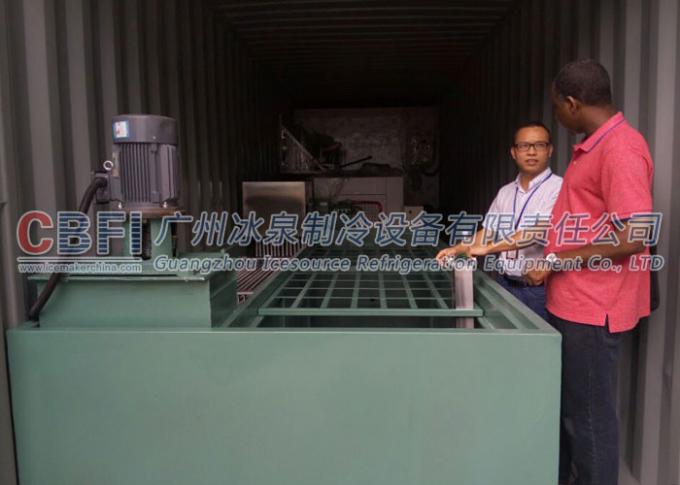

CBFI container block ice machine for Chad



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

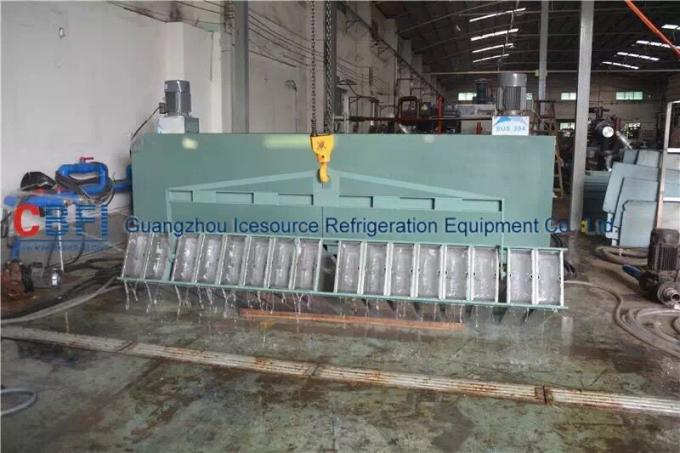

CBFI 20 ton block ice machine in South Sudan, 2015



Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor

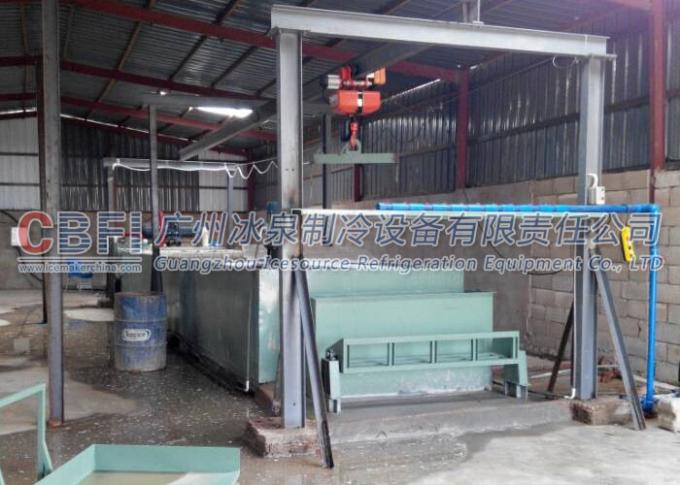

CBFI 20 ton block ice machine for Yemen client, 2016

Energy Saving Block Ice Machine Coil Pipe Evaporator with German Bitzer Compressor
