Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h

Basic Information
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV10
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
Contact Now
Detail Information
Compressor: Germany Bitzer Compressor Tube Ice Diameter: 35mm, 28mm, 22mm
Evaporator: Stainless Steel 304 Seamless Pipe Cooling Way: Water Cooling
Daily Capacity: 1000kg/24h Control System: Touch Screen With English
PLC: Siemens System Origin: Guangzhou, China
Material: 304 Stainless Steel Refrigerant: R404A

Product Description

CBFI stainless steel evaporator energy saving 1 ton tube ice machine



1. Crystal tube ice

Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h

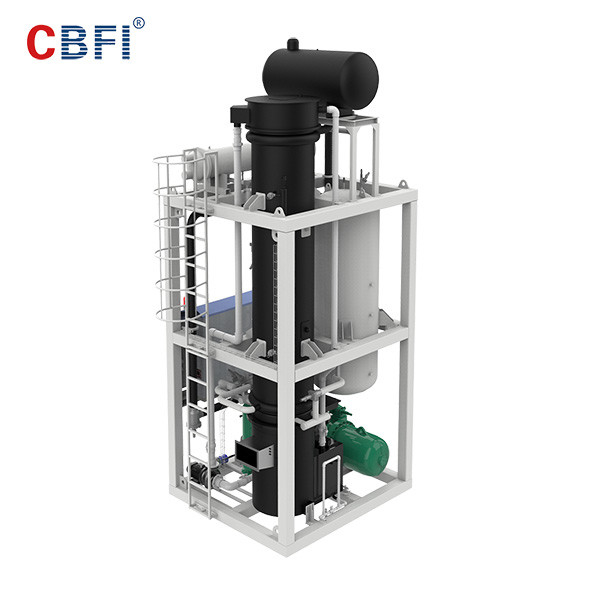

2. CBFI tube ice machine pictures

Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h



1 ton tube ice machine



Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h

4. Machine feature

  * Automatic ice out let: no need hand operation, save labor cost.

  * PLC controller: german siemens PLC controller control automatically,

    only need 2 people operate ( one people to pack the ice, one people to

    put the ice into cold storage).

  * Japan 304 SUS seamless steel pipe: make the ice more clean and make

    sure the machine have longer life span.

  * Different ice size for choice : 22mm , 28mm and 35mm .





Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h



   Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h





6. Ice Tube Machine Main components

Item No. Name of Components Brand Name
1 Compressor Germany Bitzer/Bock
2 PLC Germany SIMENS
3 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Electrical components South Korea LG (LS)
8 Circulating water pump China Nan Fang
9 Evaporator Material Stainless Steel 304 (SUS304)



6. Customer cases

CBFI 30 ton tube ice machine in Malaysia

Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h



CBFI 10 ton and 15 ton tube ice machines in Indonesia

Energy Saving 1 Ton Ice Tube Making Machine , Daily Capacity 1000kg/24h
