PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control

PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control
PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control
PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control

Large Image :  PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control

Product Details:
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
Contact Now

PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control

Description
Compressor: Germany Compressor Tube Ice Diameter: 35mm, 28mm, 22mm
Evaporator: Stainless Steel 304 Seamless Pipe Daily Capacity: 3000kg/24h
PLC: Siemens System Material: 304 Stainless Steel
Refrigerant: R404A
Highlight:

Tube Ice Machine

,

Ice Tube Maker

Long life easy control energy saving 3 ton tube ice machine for starting ice business



1. Edible tube ice Application



PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control 0

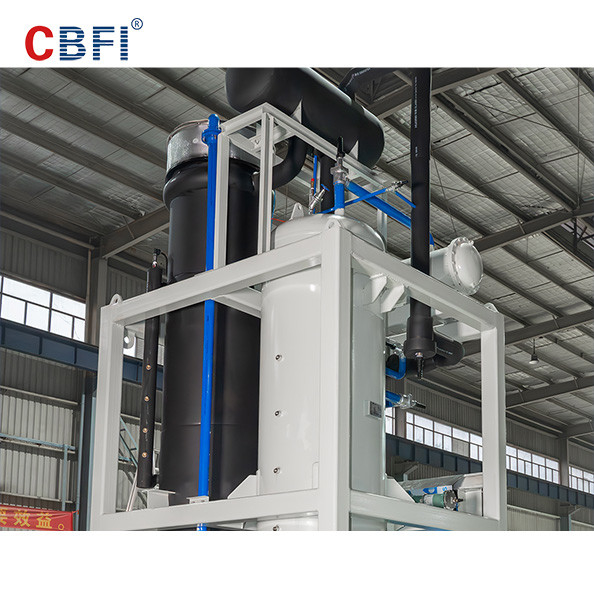

2. CBFI tube ice machine pictures

PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control 1



3 ton tube ice machine in cleaning area



PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control 2



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
 Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
 kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
 0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
 0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
 0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
 1.5
1600*1400*2250
1800

 TV100

    10.0
29.2
1.5
4
1.5
 1.5
1200*1200*3100

 2300*1550*1800
3500
TV150
15.0
49
2.2

5.5
1.5
 1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
 2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
 2.2
3000*2200*2500

 2200*1900*6200
7200







4. Ice Tube Machine Main components

Item No. Name of Components Brand Name
1 Compressor Germany /Bock
2 PLC Germany SIMENS
3 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Electrical components South Korea LG (LS)
8 Circulating water pump China Nan Fang
9 Evaporator Material Stainless Steel 304 (SUS304)



5. Customer cases

CBFI 3 ton tube ice machine in Indonesia





PLC Siemens System 3 Ton Ice Tube Machine Long Life Easy Control 3
