High Efficiency 10 ton Ice Tube Machine with Touch Screen CE ISO

Certification
China Guangzhou Icesource Refrigeration Equipment Co., LTD certification
China Guangzhou Icesource Refrigeration Equipment Co., LTD certification
Customer Reviews
Your service good, and we contact for a long, your cube ice machine reliable -- Mentor, Kosovo

—— Mentor from Kosovo

Because CBFI block ice machine, cube ice machine, cold room quality good. so i choose your company

—— Haitham from Saudi Arabia

Emily - I hope you are healthy and happy. I am glad to receive all cold room containers and it looks very good like we expected. Thanks Rusty.

—— Rusty Brown from CA , USA

the ice block ice machine is operating well thanks

—— Ismaila Silue

let me inform you, that both CS's are assembled and our grantee is very satisfied! thanks for good cooperation!

—— Malkhaz Bregadze

we are very happy with the quality of the work done by CBFI for manufacture and installation of Freezer and cooler rooms in our facility in Chicago

—— Soni

I'm Online Chat Now

High Efficiency 10 ton Ice Tube Machine with Touch Screen CE ISO

High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO
High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO
High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO

Large Image :  High Efficiency 10 ton Ice Tube Machine with Touch Screen CE ISO

Product Details:
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV100
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month

High Efficiency 10 ton Ice Tube Machine with Touch Screen CE ISO

Description
Compressor: Germany Compressor Tube Ice Diameter: 35mm, 28mm, 22mm
Evaporator: Stainless Steel 304 Seamless Pipe Cooling Way: Water Cooling
Daily Capacity: 10,000kg/24h Control System: Touch Screen With English
PLC: Siemens System Origin: Guangzhou, China
Material: 304 Stainless Steel Refrigerant: R404A/R507
High Light:

Tube Ice Machine

,

Ice Tube Maker

energy saving water cooling edible level 10 ton tube ice machine



1. Crystal tube ice



High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO 0

High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO 1

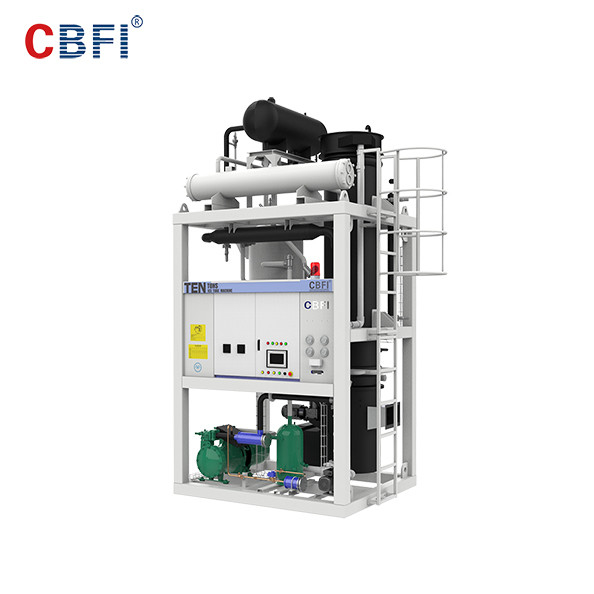

2. CBFI tube ice machine pictures

High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO 2



10 ton tube ice machine



High Efficiency 10 ton Ice Tube Machine with Touch Screen CE  ISO 3





3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


4. Main Features

1:Perfect design: adopting 3D simulation assembly, compact structure, small land area.
2:Full automatically: the whole ice making process is automatically controlled by PLC system.
3:Healthy ice: all the parts which contact with ice making water is made of SUS304 material to ensure totally clean ice
4:Low power consumption: the evaporator adopts special alloy material and is processed by special heat treatment to ensure best heat conductibility.
5:No ice dropping problem:CBFI’s patent hydraulic expansion technique can avoid ice dropping problem.
6:Fast ice dropping:the whole ice dropping process takes within 120 seconds making full use of hot Freon gas in the system.



5. Tube Evaporator Features:
1.Adopting Stainless Steel 304 ensures totally clean tube ice.
2.The adoption of middle partition can avoid ice forming on the evaporator floor freezing and breaking down the ice cutter.
3.Using patent hydraulic expansion technique makes sure water freezing equally, which avoids ice dropping problem.

tube-ice-machine-304stainless-steel-evaporator





6. Touch Screen Features

1. Easy to operate like the smartphone.
2. Display the machine running situation clearly.
3. It can be designed to control the machine to start or stop by phone

cube-ice-machine-touch-screen



FAQ

1:Q: Can the power supply be single phase? A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.

2:Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.

Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice

3:Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.

4:Q: As for the edible ice making machine, which one is more popular, tube ice machine or cube ice machine?
A: The popularity depends on customers' habits. And both our cube ice machine and tube ice machine have a good marketing. According to our marketing experience, customesr from Southeast Asia and South America prefer tube ice; and customers from Middle East countries prefer cube ice.
