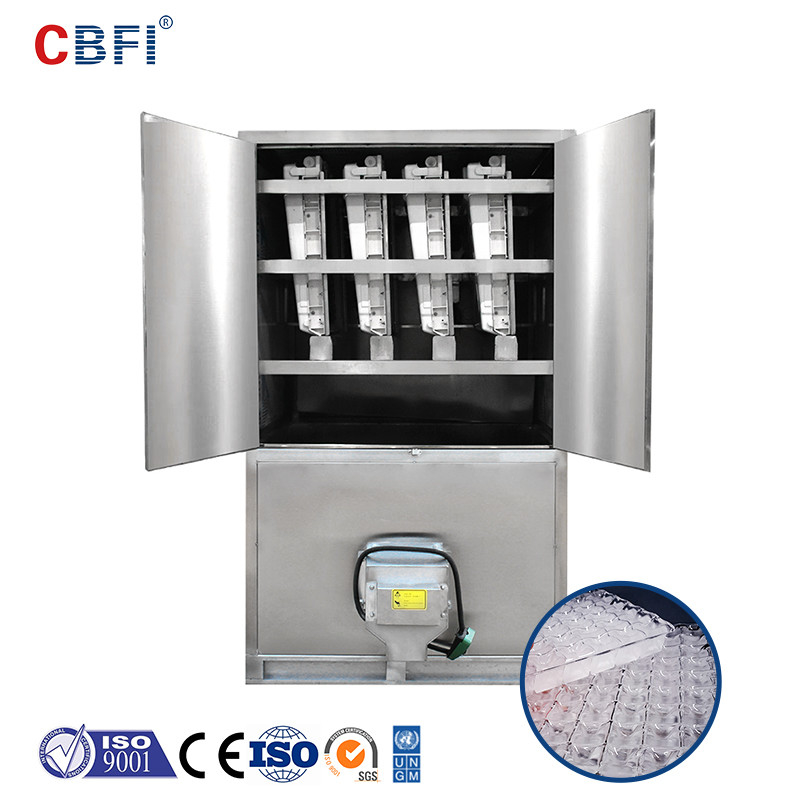

1 Ton Industrial Automatic Edible Large Ice Cube Maker With CE Certificate

China 1 Ton Industrial Automatic Edible Large Ice Cube Maker With CE Certificate supplier
1 Ton Industrial Automatic Edible Large Ice Cube Maker With CE Certificate supplier 1 Ton Industrial Automatic Edible Large Ice Cube Maker With CE Certificate supplier

Large Image :  1 Ton Industrial Automatic Edible Large Ice Cube Maker With CE Certificate

Product Details:

Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO,CE,FE, ETC.
Model Number: CV1000~CV20000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $12000
Packaging Details: Internation Standard Wooden Case
Delivery Time: 10~35 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detailed Product Description
Compressor: Germany Bitzer(or Adjust According To Your Requirement) Cooling Way: Water Cooled Or Air Cooled
Ice Size: 22*22*22mm, 29*29*22mm Or 38*38*22mm Evaporator: Nickeled Cube Ice Mould
Material: 304 Stainless Steel For Completed Frame Daily Capacity: 1 Ton To 20 Tons Per Day
Refrigerant: R22, R404a, R507 Electricity Components: South Korea LG(or Adjust Depends On Your Requirement)

1 Tons Industrial Automatic Edible Large Ice Cube Maker with CE Certificate

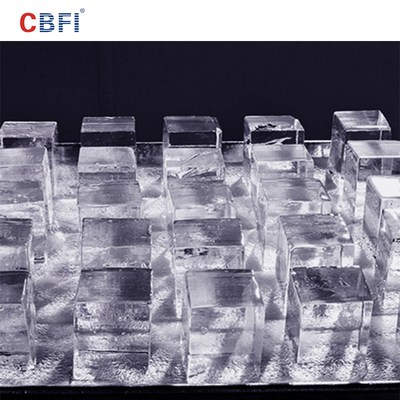

1. Cube ice

Nice edible ice, can be used in different places. For example fast food restaurant, hotel, bar, vegetable market and ect.

Making cooling drinks, adding into wine and keep food fresh and so on.


1 Ton Industrial Automatic Edible Large Ice Cube Maker With CE Certificate




2. 1 ton per day ice cube machine

edible ice cube maker

Integrated Cube Ice Machine, it will help you saving more places so that you will better to rational distribution other machines or cargoes.



3. Machine Parameter



1 ton per day ice cube machine Parameters



Working Conditions

Refrigerant R22/ R404a
Cooling way Water cooling / Air cooling
Power supply 380v/50Hz/3phase , 380v/60Hz/3phase ,
220v/50Hz/3phase, 220v/60Hz/3phase
Ambient temp. +32 ℃
Supply water temp +20 ℃
Evaporating temp. -12 ℃
Condenser temp. +40 ℃
Relative humidity 85 %
Noise 55dB



Compressor

Brand Name Bitzer(Germany)
Product Model 4EES-4
Power 4.3 kw
Refrigerating Capacity 9.4 kw



Cooling Tower
(Water cooling)

Brand Name CBFI
Size 930*1460 mm
Power 0.18 kw
Flow 6.23m³/h
Heat exchange 36kw
Ice making water Circulating pump Brand Name Nanfang
Power 0.37 kw



Ice Outlet Motor

Brand Name Nord
Power 0.75kw
Delivery time 30 days after the receipt of deposit



4. Main components brand of 1 ton per day ice cube machine



Item No. Name of Components Brand Name
1 Compressor Germany BITZER
2 PLC Germany SIMENS
3 Expansion valve Denmark DANFOSS
4 Solenoid valve of Water supply Denmark DANFOSS
5 Oil filter America Emerson
6 High and low pressure meter Switzerland REFCO
7 Circulating water pump China NanFang
8 Touch Screen China MCGS



5. Supporting equipment

Cold room: storage ice and keep the ice in high quality.

RO water treatment equipment :Purify the water , make cube ice more clean and crystal.

Sealer: sealing the ice bag

Digital scale: scale the bag ice
