Product Details:
|
| Compressor: | Semi Hermetic Piston Compressor | Tube Ice Diameter: | 35mm, 28mm, 22mm, 38 Mm |
|---|---|---|---|
| Evaporator: | Stainless Steel 304 Seamless Pipe, Janpanese | Cooling Way: | Water Cooling, Air Cooling |
| Daily Capacity: | 1-50 Ton | Control System: | Touch Screen With English |
| PLC: | Siemens System | Refrigerant: | R404A/R507 |
| High Light: | Tube Ice Machine,Ice Tube Maker |
||

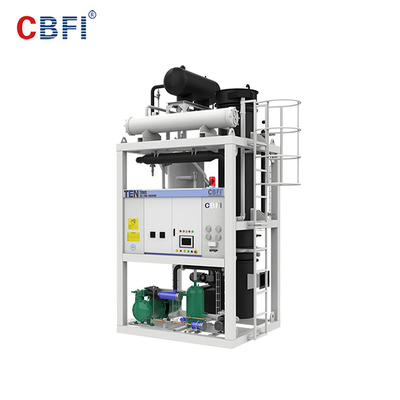

Touch screen Water Cooling Ice Tube Maker Machine Daily Capacity 1 ton to 30 tons
As technology continues to evolve, so does the Ice industry.
Advantages
1. High Production Capacity: With a daily production capacity of 1-30 tons, these machines are capable of meeting the needs of both commercial and industrial scale operations. Their high production rates ensure an uninterrupted supply of ice for different applications.
2. Touchscreen Control: The Touchscreen control panel makes operations simple and easy. It is an intuitive interface that allows operators to monitor and adjust the ice-making process while providing real-time data and monitoring.
3. Energy-Efficient: These machines are designed to be energy efficient, which means they consume less energy for the same production capacity compared to other conventional ice making machines. This translates into lower energy costs, which can help businesses save on expenses.
4. Water-Cooled Condensers: The water-cooled condensers make these machines more efficient compared to air-cooled versions. They use less electricity and tend to last longer due to the absence of dirt and dust buildup.
5. Compact Design: The Touchscreen Water-Cooled Tube Ice machines have a compact design, which makes them easier to install and operate even in confined spaces. Their modest footprint also makes them more versatile, allowing them to be used in a wide range of applications, from food and beverage to pharmaceutical, and even for mining and construction uses.
6. High-Quality Ice: Ice produced from these machines is of high quality, and the tube design ensures uniformity, providing a clear and clean product. This makes tube ice ideal for cocktails, smoothies, and other beverages where clear ice is desired.
7. Easy Maintenance: These machines are made with high-quality components, which makes them easy to maintain and repair. The touchscreen interface provides real-time updates allowing users to detect any malfunctions quickly. This leads to less downtime and increased productivity.
8. Variety of Options: The Touchscreen Water-Cooled Tube Ice machines come with a variety of options, including different production capacities and customizations to meet the specific needs of various industries.
Tube Ice Machine Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
