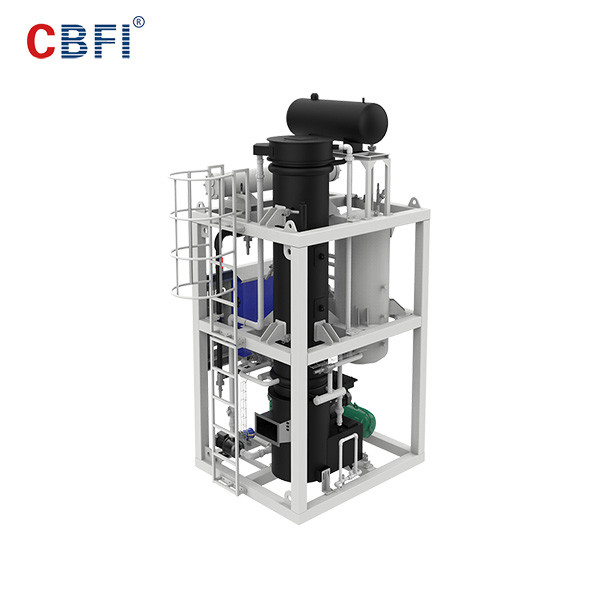

28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator

28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator
28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator

Large Image :  28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator

Product Details:
Place of Origin: Guangzhou, Guangdong, China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV10-TV500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 45 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 70 sets/month

28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator

Description
Compressor: Semi Hermetic Piston Tube Ice Diameter: 35mm, 28mm, 22mm, 38mm
Evaporator: SUS 304 Pipe For All Evaporator Pipes Cooling Way: Water Cooling, Air Cooling Both Are Ok
Control System: Touch Screen With English, Chinese, And Other PLC: Siemens System
Origin: Guangzhou, Guangdong, China Material: 304 Stainless Steel
Refrigerant: R507/R404A/ R507
High Light:

Tube Ice Machine

,

Ice Tube Maker

CBFI 28mm, 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator



1. Tube Ice Application:



Human consumption

Drinks & coffee shop, bar, hotel, restaurant

Supermarket, stores, food market

Food Processing factory

Poultry processing factory

Chemical and concrete project

Hospital & Medical care





2. Tube Ice Machine Facture:



1)Daily capacity from 1000 kg to 50,000 kg for optional, price different according to the machine capacity



2)Tube ice diameter 22 mm, 28mm, 35 mm for optional



3)Ice Making Automatically, monitored by Germany Siemens, no need people stand by



4) High efficiency running, power consumption 68 kw.h per ton ice



5) Ice output



28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 028mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 1

3. Tube Ice Machine Advantage:

1) Stainless 304 steel outer cylinder evaporator, improve the insulation performance

2) Seamless Stainless 304 evaporator tube made in Japan

3)Touch Screen Controller, operate the machine like your smart phone

4) Uniform tube ice length and smooth incision

5) Transparent ice, hard and not easy to melt

6) Heat Exchanger: improve the gas evaporation efficiency and make compressor  not be impacted by liquid gas

7) Oil Balance and oil resorvoir maintain enough oil



28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 2





4. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200






5. Company Introduction



Guangzhou Icesource Co,.Ltd was established in 2004, specialized in ice machine and cold room manufacture, including cube ice machine, tube ice machine, block ice machine, flake ice machine, plate ice machine, water chiller and cold room and so on. Our products has been exported to Europe, North and South America, Asia, Middle East, Africa, more than130 countries.

The headquarter of CBFI located in beautiful Guangzhou city, with branch companies include Huibo Electromechanical Installation Project Co,. Ltd.,and Icesouce (Nigeria).



28mm , 35mm Diameter Tube Ice Machine Stainless Steel 304 Evaporator 3





FAQ

1:Q: Can the power supply be single phase? A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.

2:Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.

Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice

3:Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.

4:Q: As for the edible ice making machine, which one is more popular, tube ice machine or cube ice machine?
A: The popularity depends on customers' habits. And both our cube ice machine and tube ice machine have a good marketing. According to our marketing experience, customesr from Southeast Asia and South America prefer tube ice; and customers from Middle East countries prefer cube ice.
