|Place of Origin:||Guangzhou, China|
|Certification:||ISO, CE, BV, SGS|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Standard wooden case for the 1 ton Tube ice machine|
|Delivery Time:||30 work days|
|Payment Terms:||T/T, Western Union, L/C, MoneyGram|
|Supply Ability:||60-70 set per month|
|PLC:||Germany Brand Siemens||Compressor:||Germany Bitzer/ Germany Bock/ America Copeland|
|Expansion Valve:||Denmark Brand Danfoss||Solenoid Valve:||Italy Brand Castel|
|Ice Shape:||Tube Ice||Ice Diameter:||22mm;28mm;35mm|

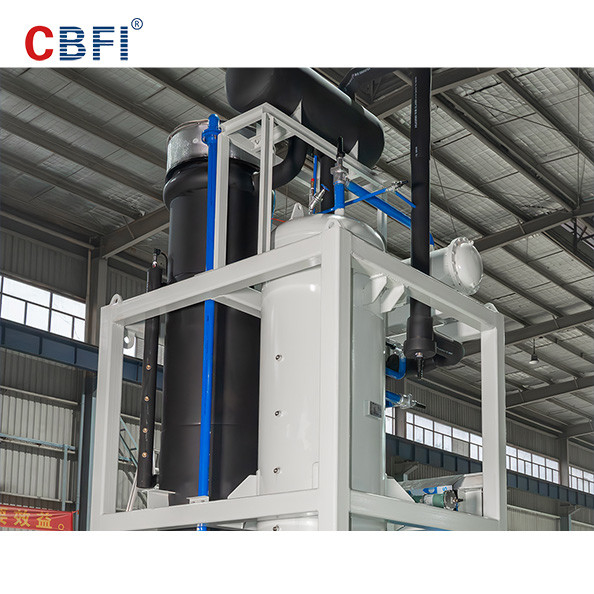

20 Tons Stainless Steel Evaporator Ice Tube Machine With PLC Controller
1. Tube ice is edible ice.
2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,
Length of ice is about 30mm to 50 mm.
3. Daily capacity of ice tube machine can be from 1ton to 50tons.
4. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.
Tube ice machine for acctually use:
1. It can be directly eaten
2. It can be used to freeze drinks
3. Cool food stuffs
4. Make ice pastries and keep fresh
5. Mix wines
6. It is widely used in restaurant, hotels, bars, cold drink stores and so on.
Tube ice machine features
1. Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
2. health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
3. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
4. Full automatically: PLC system controls the whole ice making process.
5. Oil balance equipment: there is an oil reservoir in the tube ice machine to keep enough oil into compressor, making compressor operate smoothly.
Tube ice maker machine technical parameters:
|Item||Compressor||Water circulating pump||Ice cutter||Cooling tower||Water pump|
|Cooling capacity||Power||Power||Power||Fan Motor Power||Power|
|1 ton||17.8 KW||7.2 KW||0.37 KW||0.75 KW||0.18 KW||1.1 KW|
|2 tons||22.3 KW||7.9 KW||0.55 KW||0.75 KW||0.37 KW||1.5 KW|
|3 tons||30.1kw||10.6 kw||1.1 KW||0.75 kw||0.56 KW||1.5 KW|
|5 tons||60.2 kw||21 kW||1.5 KW||1.5 KW||0.75 kw||2.2 KW|
|10 tons||83.3 kW||29.2 kW||1.5 KW||1.5 KW||1.5 KW||4 kw|
|15 tons||139 kw||49 kW||2.2 KW||1.5 kw||1.5 kw||5.5 kw|
|20 tons||166.6 kw||58.5 kw||2.2 kw||2.2 kw||2.2 kw||5.5 kw|
|30 tons||249.9 kw||87.6 kw||2.2 kw||2.2 kw||2.2 kw||7.5 kw|
The above information is based on water cooling condenser.
Size of machine is the same with the size before
It didn’t mention size of cooling tower, cooling tower is usually installed in the outside.
Machine running condition:
1. referenced valve is under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
2. water temperature: 28℃,
3. evaporate temperature:-12℃,
4. condensing temperature: 40℃,
1. We have a large after-sale service team. All the technicians are very experienced, they always go to different countries to serve customers like you.
2. We can offer design drawing to you and gine you professional information
3. The warranty of the whole machine is 12 months.
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings.
3. Customer only need prepare electricity and water for the machine.
4. All required components for installing the machine will be provided.
1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before delivery.
3. The delivery time normally is 30 days after receive the deposit.
4. If necessary, we will arrange the shipping for you.
some questions and answers here:
1. Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work.
2. Q: do you test the ice machine in your factory?
A: yes, ice machine is carefully tested for 3 to 5 days after it was produced. And when we install them at customer’s factory, we retest the ice machines.
3. Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
4. Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
