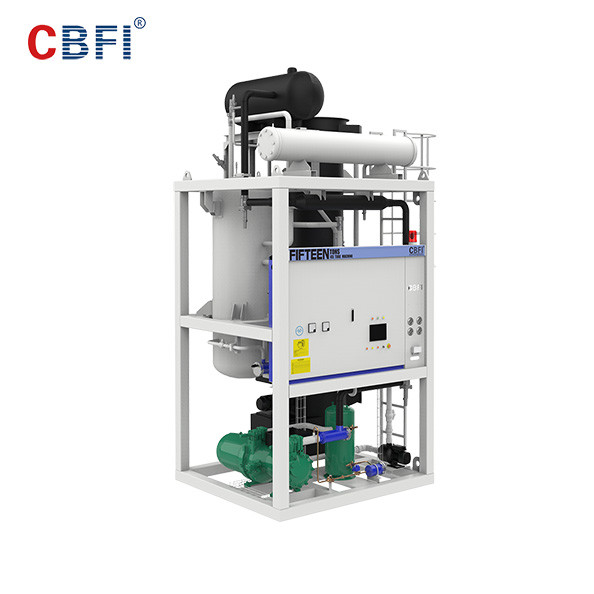

Stainless Steel 5000kg Daily Capacity Ice Tube Machine With 500kg Ice Bin

Basic Information
Place of Origin: Guangzhou,China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV50
Minimum Order Quantity: 1 set
Price: USD2000 - USD5000
Packaging Details: Standard wooden case for the 1 ton Tube ice machine
Delivery Time: 30 work days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 60-70 set per month
Contact Now
Detail Information
Compressor: Germany Bitzer Conpressor Model: 6FE-28
Ice Shape: Tube Ice Diameter: 35mm;28mm;22mm
Ice Production Capacity: 5 Tons Per 24 Hours Refrigerant: R22/R404A/R507
Power: 380V-50HZ-3P(or For Your Request)

Product Description

China Guangzhou CBFI Stainless Steel 5000kg Daily Capacity Tube Ice Maker Machine With 500kg Ice Bin



Basic Information



Name: 5 ton/24h Edible Tube Ice Machine

Daily Capacity: 5000kg Per 24 hours

Machine Demension: 1600*1400*2250mm

Model: TV 50

making ice water: clean water

Stainless Steel 5000kg Daily Capacity Ice Tube Machine With 500kg Ice Bin

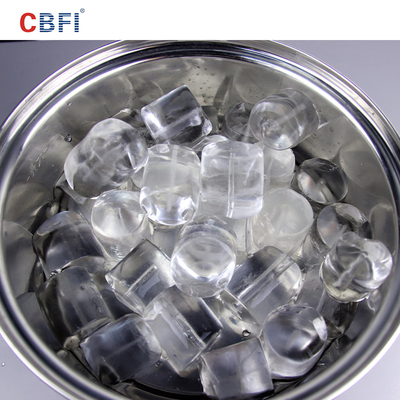

Ice Output Information:



Ice Shape: Tube

Ice Diameter: 22mm, 28mm, 35mm

Freezing Time: 16~22min

Ice Density: 500kg~550kg

Ice Mould Material: Seamless Stainless Steel 304 Tube (Made In Japan)




Application:


1. It is edible
2. Be put in wine
3. Cool food stuffs

4. Widely used in restaurants, cold drink stores, bars, hotels and so on.


Tube ice machine features:


1. Perfect design: adopt 3D simulation assembly, compact structure,easy to operate and maintain
2. Evaporator and water tank is made from stainless steel, it can keep the ice making water clean and the ice can be edible.
3. PLC system control the machine automatically. The machine can produce ice, clean itselfe, deal with problems automatically.




Stainless Steel 5000kg Daily Capacity Ice Tube Machine With 500kg Ice Bin



1 ton to 30 tons parameters

Item Compressor Water circulating pump Ice cutter Cooling tower Water pump
Cooling capacity Power Power Power Fan Motor Power Power
1 ton 17.8 KW 7.2 KW 0.37 KW 0.75 KW 0.18 KW 1.1 KW
2 tons 22.3 KW 7.9 KW 0.55 KW 0.75 KW 0.37 KW 1.5 KW
3 tons 30.1kw 10.6 kw 1.1 KW 0.75 kw 0.56 KW 1.5 KW
5 tons 60.2 kw 19.9 kW 1.5 KW 1.5 KW 0.75 kw 2.2 KW
10 tons 83.3 kW 29.2 kW 1.5 KW 1.5 KW 1.5 KW 4 kw
15 tons 139 kw 49 kW 2.2 KW 1.5 kw 1.5 kw 5.5 kw
20 tons 166.6 kw 58.5 kw 2.2 kw 2.2 kw 2.2 kw 5.5 kw
30 tons 249.9 kw 87.6 kw 2.2 kw 2.2 kw 2.2 kw 7.5 kw



Note:
The above information based on water cooling condenser.
Size of machine is the same with the size before
installation.
It didn’t mention size of cooling tower, because cooling tower usually install in the outside.




Stainless Steel 5000kg Daily Capacity Ice Tube Machine With 500kg Ice Bin


Our Services:



1. Our professional after-sale team and techicians are ready to help with your project all the time.

2. We offer you the comprehensive manual book, installation video and pictures.

3. We can provide you with the design drawing and our technicians can install the machine for you.
4. The warranty of the whole machine is 12 months.



Packaging & Shipping:



1. Standard wooden case.
2. Whole set of ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings and other spar parts.
4. All required components for installing the machine will be provided by us.

5. We will deliver the goods in 35 days since the advanced payment arrived at our bank account


Payment:



1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.

Company Profile:



As the largest supplier of large edible ice machines, large industrial ice machines, cold rooms, etc. in the world, Guangzhou Icesouce Co., Ltd.(CBFI) is a high-tech company setting R&D, production, sales and service in one. Our products are sold to European Union, North America, Africa, South America, South-east Asia and so on, more than 100 countries or areas. We have professional technical personnel and R&D staff to ensure high-quality machines. What’s more, we have achieved many certificates, like CE and patents.


 Stainless Steel 5000kg Daily Capacity Ice Tube Machine With 500kg Ice Bin





If you are interested in our products, please contact us. We would be very glad to be on service of you.



As the most professional ice machine manufacturer in China, we are pleased to do our best offer to open a good market for you.



We are definitely to contact you within 24 hours after getting your inquiry.
