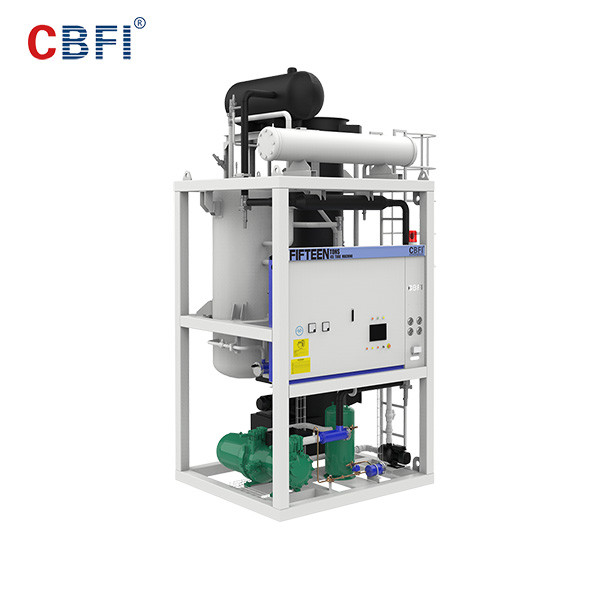

R404a Refrigerant Seperated Unit Ice Tube Machine with Satinless Steel Evaporator

Basic Information
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV200
Minimum Order Quantity: 1 set
Price: USD100- USD999999
Packaging Details: Standard wooden case for the 1 ton Tube ice machine
Delivery Time: 30 work days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 60-70 set per month
Contact Now
Detail Information
PLC: Germany Brand Siemens Compressor: Germany Bitzer/ Germany Bock/ America Copeland
Solenoid Valve: Italy Brand Castel Power Supply: LG
Refrigerant: R22/R404a Ice Shape: Tube Ice
Ice Diameter: 22mm;28mm;35mm Ice Making Shifts: 72
Evaporator Materail: Satinless Steel

Product Description

Ice storage cold room



Water tank



Water filter



Water chiller



Ice packing equipment



Ice crusher

A Whole Set of 20 Tons Seperated Machine Unit Ice Tube Machine Equipment



Product Features

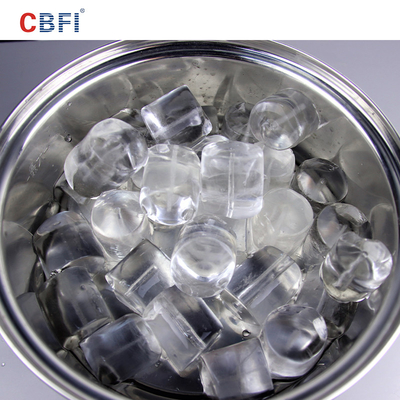

1. The ice produced by this machine is tube shape.

2. The tube ice is edible and totally transparent.
3. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,Length of ice is about 30mm to 50 mm.
4. Daily capacity of ice tube machine can be from 1ton to 50tons.
5. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.

6. The machine is seperated and it can make 20 tons tube ice per day.

7. The tube ice is widely used to cool drinks in restaurant, hotels, bars, cold drink stores and can be used to cool stuffs like meat and fish.


Advantages of CBFI Tube ice machine


1. Clean and stainless steel material: the parts that water will go through are stainless steel to keep ic emaking water clean and then tube ice will be always transparent and reach food grade.
2. Efficient performance: the machine adopts heat exchanger to improve condensing  and evaporation efficiency.

3. Oil balance equipment: there is an oil reservoir in the tube ice machine to keep enough oil into compressor, making compressor operate smoothly.

4. Our machines’ cutting knifes are absolutly vertical and keep rotating at constant speech to make water frozen evenly.



A whole set of tube ice machine equipment

  • Ice storage cold room
  • Water tank
  • Water filter
  • Water chiller
  • Ice packing equipment
  • Ice crusher



1 ton to 30 tons parameter

Item Compressor Water circulating pump Ice cutter Cooling tower Water pump
Cooling capacity Power Power Power Fan Motor Power Power
1 ton 17.8 KW 7.2 KW 0.37 KW 0.75 KW 0.18 KW 1.1 KW
2 tons 22.3 KW 7.9 KW 0.55 KW 0.75 KW 0.37 KW 1.5 KW
3 tons 30.1kw 10.6 kw 1.1 KW 0.75 kw 0.56 KW 1.5 KW
5 tons 60.2 kw 21 kW 1.5 KW 1.5 KW 0.75 kw 2.2 KW
10 tons 83.3 kW 29.2 kW 1.5 KW 1.5 KW 1.5 KW 4 kw
15 tons 139 kw 49 kW 2.2 KW 1.5 kw 1.5 kw 5.5 kw
20 tons 166.6 kw 58.5 kw 2.2 kw 2.2 kw 2.2 kw 5.5 kw
30 tons 249.9 kw 87.6 kw 2.2 kw 2.2 kw 2.2 kw 7.5 kw




Note:
1.The above information is based on water cooling condenser.
2.The standard electricity power supply is 380v 50hz 3p, if your power supply is not this, we can customize for you to meet your need.

3. water temperature: 28℃, evaporate temperature:-12℃, condensing temperature: 40℃,Real production of machine will have a little change according to change of water

temperature and ambient temperature.




Our Services



1. We will offer you design drawing of your factory area to show you how to arrange the machine equipment.

2. We can offer you installation manual and video to teach you how to opearte and install it. And we offer online service to talk with you. And if you need, we can send you techinicians to help you install it.
3. The warranty of the whole machine is 12 months, within the warranty, if the machine meet some problems we can send you free parts and technicians to help you.





Payment



1. Customers can pay by T/T,L/C,Western Union, Money Gram and in Cash.
2. 30% is deposit,  70% is balance.

Q&A

1.  Q: Will you add refrigerant in the ice machine?
     A: yes, we will fiil the machine with refrigerant, once with water and electric it can work.

2.  Q: do you test the ice machine in your factory before delivery?
     A: yes, ice machine is carefully tested  for 3 to 5 days after it was produced. And when we install them at customer’s factory, we retest the ice machines.


3. Q: can you load ice machine into container?
    A: we have containerized ice block machine. We can design the machine in the container like 20 feet and 40 feet containers.

4. Q: Your standard power supply is 380v 50hz 3p, can you design it  as other power supply like 440v, 415v,etc.?
    A: Our standard power supply is
380v 50hz 3p, but if your local power supply is not this, we can customize for you to make the power supply meet your need.
