Product Details:
|
| Brand Name: | CBFI | Certification: | CE |
|---|---|---|---|
| Cooling Pump: | 4KW | Dimension: | 2300*1550*1800mm (Machine Unit) 1200*1200*3100mm(Evaporator) |
| Machine Weight: | 3500 Kg | Daily Ice Production Capacity: | 10000kg |
| Ice Shape: | Tube Ice | Refrigerant: | Ammonia R717 |
| Evaporating Temperature: | -12℃ | Power Supply: | 380v 50hz 3phase |
| Cooling Way: | Water Cooling | ||
| High Light: | Tube Ice Machine,Ice Tube Maker |
||

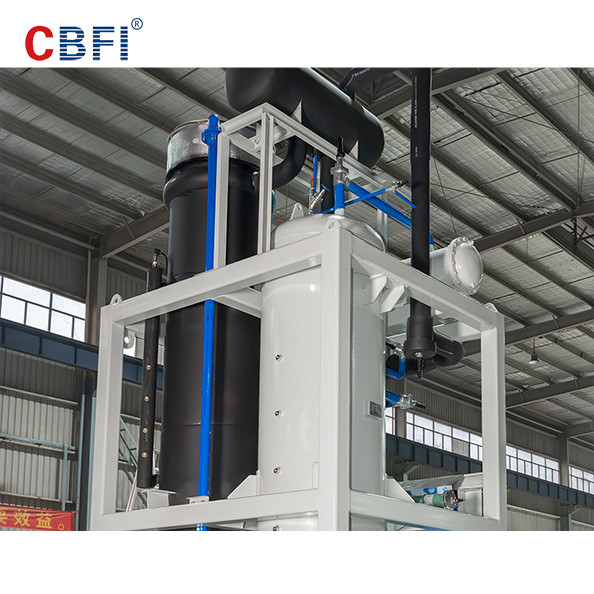

High Efficient 10 Ton Ice Tube Machine Stainless Steel 380v 50hz 3 Phase
10 ton tube ice machine is a split type ice machine. The ice making part is set apart from the main body, so that you can design the ice plant in a better way to use all the space. It is recommended to equip a screw type ice storage with cold source. Then the tube ice could last over night before packing.
Technical Specifications
| TV100 10 ton Tube Ice Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
|
Compressor Parameter |
Model | 6FE-50 | ||
| Cooling Capacity(kW) | 79 | |||
| Power(kW) | 27.9 | |||
|
Condenser |
Model | WN-55 | ||
| Heat Exchange(kW) | 164.5 | |||
| Condensing Temperature | Degree Celsius(℃) | 40 | ||
| Evaporating Temperature | Degree Celsius(℃) | -12 | ||
| Ambient Temperature | Degree Celsius(℃) | 32 | ||
| Water Temperature | Degree Celsius(℃) | 20 | ||
| Refrigerant | Ammonia R717 | |||
| Voltage | V/P/HZ | 380/3/50 | ||
|
Motor Power |
Ice Cutting Motor(kW) | 1.5 | ||
| Recircling Pump(kW) | 1.5 | |||
|
Cooling Tower |
Model | LX-60 | ||
| Power(kW) | 1.5 | |||
|
Cooling Pump |
Model | GD80-21 | ||
| Power | 4 | |||
| Cooling Fan Power | Power(kW) | 1.5 | ||
| Water Cooling Machine Dimension | L*W*H(mm) | 1900*1600*1850 | ||
| Refrigerant Quantity | kg | 250 | 275 | 30 |
| Machine Weight | kg | 3500 | ||
Working Conditions
Product Characteristics
1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. Making every ton of ice just need 80kw.h, saving electricity power
5. Use of stainless steel SUS304, make sure the ice is purified and safe.
6. Adopt PLC control system, make ice, deice, clean machine and check problems automatically.
7. Tube ice is 100% transparent, purified, bacteria-free, reaching food grade.
Application
A Whole Set of Tube Ice Maker Machine Equipment
