Product Details:
|
| Capacity: | 1-80 Ton | Refrigerant: | R507,R404a Or R507 |
|---|---|---|---|
| Cooling Way: | Water Cooling/Air Cooling Tube Ice Machine | Evaporator Inner Material: | Stainless Steel 304 |
| Control System: | PLC | Tube Ice Diameter: | 30-50mm Tube Ice Machine |
| Electrical Components: | Korea LG | Expansion Valve: | Danmark - Danfoss Brand |
| High Light: | Commercial Ice Making Machines,Drinkable Round Ice Making Machines |
||

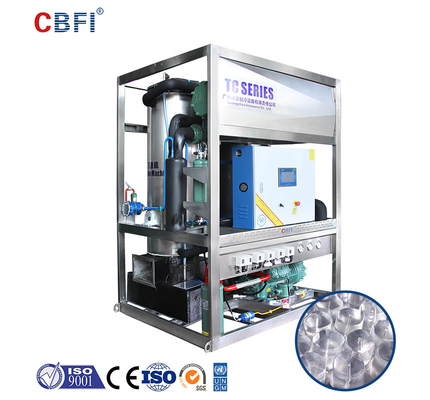

Commercial Drinkable Round Ice Making Machines Tube Ice Machine For Ice Factory Use
Tube ice machines are a great option for you to start your ice making business. Add water filter and packing machine, a complete tube ice factory is all completed. We provide you with the solution design of the pipe ice plant, and help you with the location design, water pipe layout, etc.
Tube ice machine applications

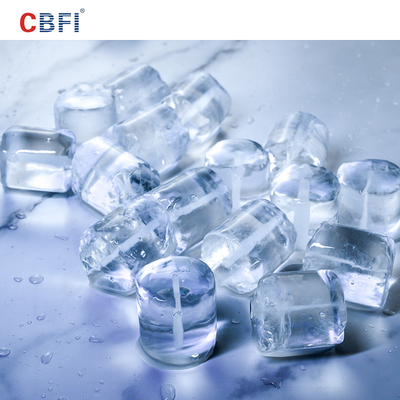

1. Edible tube ice have irregular lenth and with the hole in the middle.Tube ice is favored by lots of clients due to its glittering and translucent and good melting resistance, beautiful look, loong storage life, excellent expansibility.
2. Tube ice used in foods ice preservation and the retain freshness,medical appplication,KTV,banquet hall, drink modulation,western restaurant,hotel,bar,fast food restaurants,cold drinks shops,beer bouse ect.
3. Tube ice size the external ice diameter is 22mm,28mm and 35mm.The hole in the middle can be adjusted according to the ice making time,normally it is between 1mm to 10mm.
Tube ice machine parameters
|
Tube Ice Machine Parameters
|
|||||||
|
Model
|
Daily Output (T/24 h)
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size (L**H *W mm)(Integrated Type)
|
Unit N.W.(KG)
|
|
|
TV 10
|
1
|
4.1 kw
|
0.25 kw
|
1.1 kw
|
1100*900*1780
|
900
|
|
|
TV 20
|
2
|
7.44 kw
|
0.25 kw
|
1.5 kw
|
1250*1000*1950
|
1200
|
|
|
TV 30
|
3
|
10 kw
|
0.55 kw
|
1.5 kw
|
1300*1100*2200
|
1500
|
|
|
TV 50
|
5
|
19.9 kw
|
0.55 kw
|
2.2 kw
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily Output (T/24 h)
|
Compressor Power
|
Fan Power for Cooling Tower
|
Cooling Pump Power
|
Unit Size (L**H *W mm)(Integrated Type)
|
Unit N.W.(KG)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV100
|
10
|
27.9 kw
|
1.5 kw
|
4 kw
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV100+
|
10
|
39.8 kw
|
1.5 kw
|
4 kw
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV150
|
15
|
46.4 kw
|
1.5 kw
|
5 kw
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV200
|
20
|
55.7 kw
|
2.2 kw
|
7.5 kw
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV300
|
30
|
83.6 kw
|
2.2 kw
|
7.5 kw
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV400
|
40
|
111.4 kw
|
2.2 kw
|
11 kw
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV500
|
50
|
139.3 kw
|
3.75 kw
|
15 kw
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ). 3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
