Product Details:
|
| Voltage: | 380V/50Hz/3Phase Or Other | Application: | Industrial Or Commercial |
|---|---|---|---|
| Ice Temperature: | -5℃ | Ice Shape: | Flake Ice |
| Ice Thickness: | 1mm-2mm | 1mm-2mm: | Water Cooling/Air Cooling/Evaporative Cooling |
| Control System: | PLC System | Electrical Components: | South Korea LG |
| High Light: | Stainless Steel Portable Flake Ice Maker,Fully Automatic Portable Flake Ice Maker,Supermarket Flake Ice Machine |
||

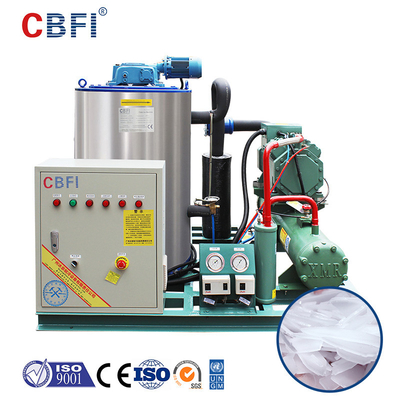

Stainless Steel 304 Fully Automatic Portable Flake Ice Maker For Supermarket
Product Description
1. Space saved: the structure is compact and simple.
2. Full automatically: the whole ice making and droping process are controlled by PLC controller.
3. High refrigeration efficiency: the latest evaporator with vertical spiral ice cutter is adopted. Water is sprayed by the sprinkler on the inner wall of the evaporator, forming ice quickly. At the same time, the spiral cutter cuts the forming ice, which makes full use of the evaporator surface and increases the efficiency of ice making.
Product Parameters
|
Model
|
Ice Making Capacity
|
Capacity of Refrigeration
|
Machine Dimension
|
Weight of Machine
|
|
No.
|
Ton / 24 h
|
kw
|
L*W*H(mm)
|
KG
|
|
BF 1000
|
1
|
8.85
|
1300*960*1200
|
210
|
|
BF 2000
|
2
|
17.84
|
1500*1200*1350
|
360
|
|
BF 3000
|
3
|
24.15
|
1800*1250*1400
|
1000
|
|
BF 5000
|
5
|
35.1
|
2100*1250*1500
|
1100
|
|
BF 6000
|
6
|
45.85
|
2500*2040*2200
|
1100
|
|
BF 8000
|
8
|
52.7
|
2100*1250*1500
|
1300
|
|
BF 10000
|
10
|
76.1
|
2300*1750*1740
|
1500
|
|
BF 15000
|
15
|
110.9
|
3200*2100*2000
|
3200
|
|
BF 20000
|
20
|
151
|
3400*2200*2560
|
4200
|
|
BF 30000
|
30
|
180
|
3800*2300*2560
|
5000
|
|
BF 35000
|
35
|
214.2
|
4500*2300*2800
|
6000
|
|
BF 40000
|
40
|
226.1
|
7800*2100*3000
|
7500
|
|
BF 50000
|
50
|
268.1
|
5000*2300*3000
|
10000
|
|
BF 60000
|
60
|
278.4
|
5500*2300*3200
|
12000
|
|
Specifications For Flake Ice Machine
|
||||
|
Working Conditions
|
Power Supply
|
380V/50Hz/3P / 220V/60Hz/3P / 460V/60Hz/3P
|
||
|
Refrigerant
|
R507/R404A
|
|||
|
Cooling Way
|
Water Cooling/Air Cooling/Evaporative Cooling
|
|||
|
Max. Ambient Temp.
|
+45℃
|
|||
|
Supply Water Temp.
|
+23℃ to 18 ℃
|
|||
|
Condenser Temp.
|
+40℃
|
|||
|
Noise
|
55dB
|
|||
Detailed Images
Features:
1. Ice thickness: 1mm - 2mm.
2. The ice temperature can reach -8℃.
3. The flake shape ensures excellent cooling effect in large area.
4. No sharp edges and will not destroy refrigerating items, which is beneficial for storage and transportation.
Features:
1. Stainless steel 304 for food industry and 316L for seawater evaporator.
2. Every batch of materials must get a quality report and pass X-Ray flaw detection.
