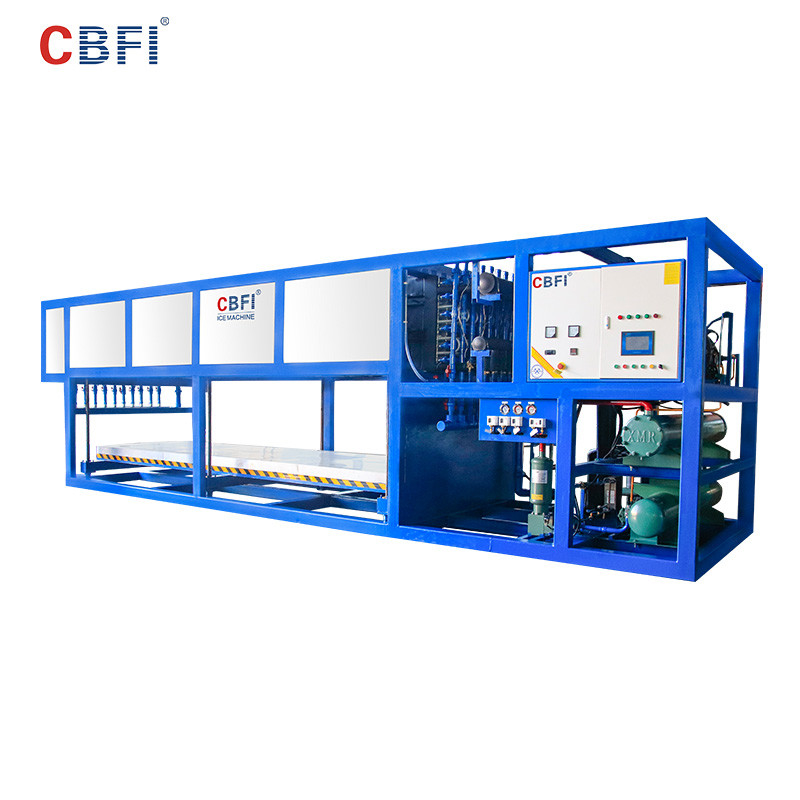

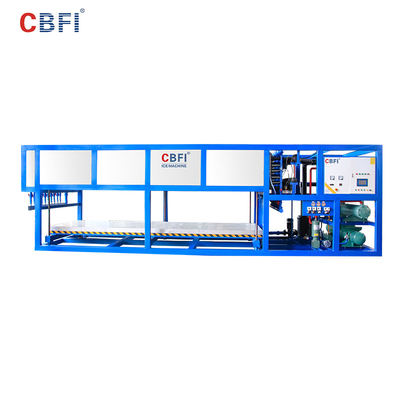

Direct Cooling Automatic Block Ice Machine With 10 Tons Capacity

Direct Cooling Automatic Block Ice Machine With 10 Tons Capacity

The direct cooling block ice machine adopts the ice-making principle that the refrigerant directly enters the evaporator and water for heat exchange. It directly evaporates and makes ice without a central heat transfer medium, which avoids the energy loss caused by the use of refrigerant for heat exchange. You bring excellent work efficiency. Greatly increased heat transfer power. The thermal conductivity of aluminum is 3.2 times that of steel, the weight is only 1/3 of steel, and it will not rust. After repeated tests, it saves more than 30% energy than traditional ice machines; and because no intermediate cooling medium such as salt water is needed, the ice making process is pollution-free. Under the premise that the water supply reaches drinking water, the ice cubes can meet the edible standard requirements, breaking through the large-scale ice machine. Block machine inedible puzzle.

Direct Cooling Automatic Block Ice Machine Features

1.  Aluminum alloy evaporator has high heat transfer efficiency and remarkable energy-saving effect. Focusun aluminum alloy evaporator has good thermal conductivity, and the thermal conductivity of aluminum is 2.9 times that of iron. The heat transfer coefficient of the energy-saving aluminum alloy evaporator is 1.43 times that of the ice bucket of the salt water machine. It only needs to be turned on for a short time to meet the cooling capacity requirement, saving 30% of the energy, and the overall cost performance is high.
2.  The aluminum alloy evaporator has high efficiency. The projected area of the aluminum alloy evaporator and the evaporation area ratio can be 1:3 or 1:4. In this way, the evaporator ice mold made of aluminum alloy can increase the heat transfer capacity per unit area. It is much more efficient than using a salt water tank, and the refrigerant circulates directly in the aluminum alloy evaporator to achieve instant cooling effect. When the compressor is working, ice can be made, and the temperature of the brine is lowered before the brine tank, which saves power consumption and time consumption.
3.  Aluminum alloy evaporation is light in weight and easy to install Under the same evaporation area, the weight of aluminum alloy is one-sixth of that of steel row + salt water tank, which greatly reduces the occupied area, facilitates installation, and reduces payment costs.
4.  The aluminum alloy evaporator system uses less refrigerant. The aluminum alloy evaporator has a reasonable structure, which reduces the heat exchange steps with water when the refrigerant evaporates. The evaporator directly contacts with water, which greatly improves the utilization rate of the refrigerant.
5.  The aluminum alloy evaporator has a reasonable structure and accelerates convection. The inner tubes of the fast cooling evaporator are connected in parallel in series to form several parallel convection channels. Fast, the cooling speed is accelerated.
6.  The aluminum alloy evaporator system is clean, prolonging the service life of the compressor. The aluminum alloy has been specially treated to ensure internal cleanliness, strong anti-corrosion performance, no corrosion on the surface, long service life, and in line with food hygiene standards.
7.  Aluminum alloy evaporator hot fluorinated ice function After the ice cubes are frozen, hot fluorinated ice is used to remove the ice from the ice mold quickly, which solves the problem of slow ice melting speed with warm water for ice molds made of salt water.

Direct Cooling Block Ice Machine Parameters

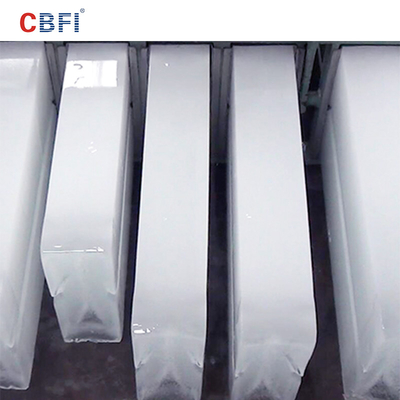

The ice cubes produced by the direct cooling block ice machine have the characteristics of large size among ice products, small contact area with the outside world, and not easy to melt. It can be broken into various forms of ice according to different requirements. The direct cooling block ice machine is used in ice sculpture, ice storage, sea transportation, sea capture, etc., fresh aquatic products preservation, etc. After being broken, it can be used in all places where ice is used. However, after the ice is destroyed, it will partially melt and the amount of ice will be lost. Ice cubes can be divided into transparent ice cubes, milky white ice cubes and colored ice cubes.

Application of direct cooling block ice machine
1.  Caught at sea, the ice cubes produced by the direct cooling block ice machine have the characteristics of large size, small contact area, and not easy to melt. It is more suitable for fishing boats to go to sea to catch. It only needs to install ice storage on fishing boats. When ice is needed, remove ice cubes from the ice storage to keep seafood fresh. Ice cube seafood is suitable for small and medium-sized fishing boats, and the time to go to sea is relatively short.
2.  Ice sculpture. The ice cubes produced by the direct cooling block ice machine can weigh several hundred kilograms and can be used for ice sculpture.
3.  Vegetables and fruits are transported and kept fresh. Transported for a long time, the transported goods are easy to corrode and deteriorate. Stored in ice cubes, it can be used for fresh-keeping transportation of fruits and vegetables, seafood, meat and poultry, and aquatic products at medium-weight intervals.
4.  Preservation of meat and poultry, fruits and vegetables, aquatic products and seafood in the vegetable market.
5.  After the large ice cubes are broken, they can be used to keep seafood, aquatic products, meat and poultry fresh in supermarkets.
6.  The direct cooling block ice machine is used in ice factories, and the ice produced is used for wholesale and retail. It can be used in vegetable markets, transported and kept fresh, etc. It is widely used.
