Product Details:
|
| Capacity: | 10 Tons Per Day | Ice Shape: | Block Ice |
|---|---|---|---|
| Key Selling Points: | Automatic | Refrigerant: | R507 Or R404a |
| Control System: | PLC Automatic Control | Compressor Brand: | Bitzer/Frascold/Refcomp/Hanbell |
| Block Ice Weight: | 25kg-50kg And Customized | Condition: | New |
| High Light: | R404a Block Ice Making Machine,PLC Block Ice Making Machine |
||

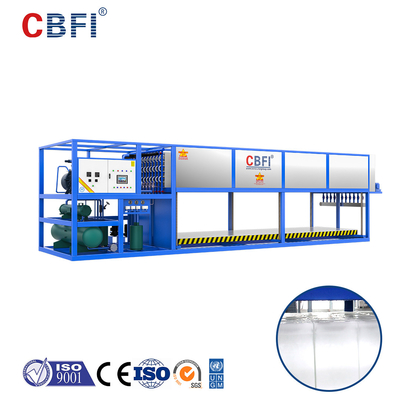

Direct Block Ice Making Machine With Ice Moving Device 10tons Per Day

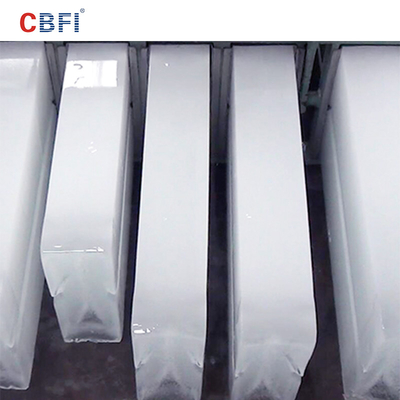

CBFI direct cooling block ice machine is able to produce edible white and transparent block ice, much attractive and quite popular among customers. This kind of block is totally clean enough for drinking, most of our clients are used for human consumption, while it is also used in pelagic fishing, fresh keeping, temperature controlling and ice sculpture. Especially for hot regions, such as Africa, Middle East, Australia, etc. What's more, the block ice has a dominant advantage than other types of ice, it's solid, strong and not easy to melt, so it's perfect matched for transport in long distance and fishing industry.
Product Features
1. Big daily Capacity
2. Machine power supply: 3 phase industrial power supply
3. PLC controlling system, very easy to use.
4. Automatic operation to save your labor work
5. Compact design to save your area need.
6. The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration,
ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination
problems.
7. The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.
Product Parameters
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
20
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1. Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2. The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3. Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
