Product Details:
|
Capacity: | 2 Ton Capacity In 24hours | Ice Shape: | Ice Cube |
---|---|---|---|
Electrical Components: | Korea LG | Material: | Stainless Steel 304 |
Cooling Way: | Water Cooling/Air Cooling | Key Selling Points: | Automatic |
Control System: | Siemens PLC Program Control | Application Fields: | For Hotels Restaurants Fast Food Shop And So On |
High Light: | Automatic 2 Ton Square Ice Machine,2000kg Square Ice Machine |

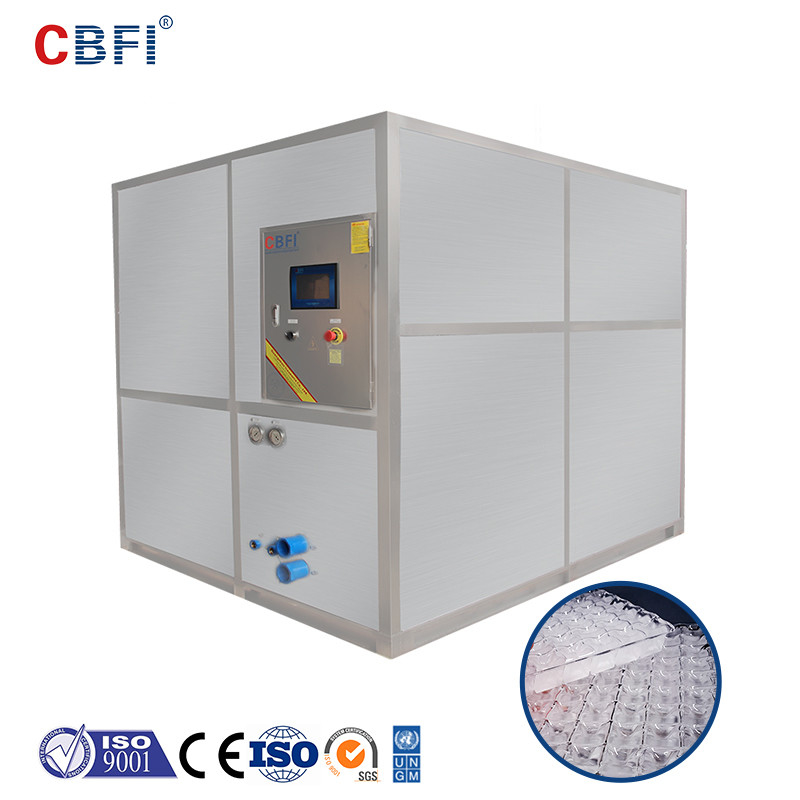

Automatic 2 Tons Electric Square Ice Machine 2000kg Ice Cube Making Maker Machine
Product Features
1. Reasonable design for the framework structure with stainless steel 304, save space, and easy to install;
2. Greatly save energy, only 80-85kw powers are consumed to produce one-ton ice;
3. Ice dropping automatically, No ice dropping auxiliary equipment, lower the error rate ice outgoing;
4. Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice by plastic bags;
5. Equipped with Siemens PLC central program control, which allows multiple functions such as automatic machine start and shut down; Ice stopping production when the ice bins are full, Automatic water making up;
6. Supply Power Form: 380V, 50Hz/60Hz, 3P or 220V, 60Hz, 3P.
7. Cooling System: Water cooling system.
Product Parameters
1 ton per day Large Capacity Cube Ice Machine for hotels & restaurants Parameters | ||||||
Model Parameters | CV1000 | CV2000 | CV3000 | CV5000 | CV10000 | |
Daily output (T/24h) | 1 | 2 | 3 | 5 | 10 | |
Compressor Power | 4.34kw | 7.88kw | 10.58kw | 21kw | 42kw | |
Fan Power for Cooling Tower | 0.18kw | 0.37kw | 0.56kw | 0.75kw | 1.5kw | |
Cooling Pump Power | 1.1kw | 1.5kw | 1.5kw | 2.2kw | 4kw | |
Unit size | L(mm) | 1800 | 1630 | 1980 | 2890 | 5730 |
W(mm) | 1000 | 1600 | 1630 | 1780 | 1780 | |
H(mm) | 1700 | 1706 | 1860 | 1860 | 2130 | |
Unit N.W.(kg) | 800 | 1000 | 1200 | 1600 | 3000 | |
1. Size of cube ice:22*22*22mm / 29*29*22mm / 38*38*22mm 2. Compressor Brand: Bitzer / Frascold; Refrigerant: R507/R404A; Cooling Method: Water Cooling / Air Cooling; 3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-10℃. 5. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 6. (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
FAQ
Why should I choose CBFI large cube ice machine instead small commercial machines?
1. The small-capacity ice-making machine has a small daily output and cannot meet the market demand;
2. Small-scale edible ice-making machines consume high electricity, and consume 160kw of electricity per ton of ice;
3. The capacity of small-scale edible ice-making machines is relatively low. When the ambient temperature is high, the climate is hot and can not reach the standard;
4. The cooling water of the small-scale edible ice machine cannot be recycled, resulting in waste of water;
5. The small-scale edible ice machine still stays in manual operation, and the intelligent operation is low;
6. The small service life of small-sized ice-making ice machines is also a major drawback;
