Product Details:
|
| Name: | Tube Ice Making Machine | Capacity: | 3000kg/24h |
|---|---|---|---|
| Operation: | Automatic | Refrigerant: | R507/R404A |
| Cooling Method: | Air-cooled/Water-cooled | Ice Shape: | Tube Ice |
| Control System: | PLC | Compressor: | High-efficiency |
| High Light: | Edible Tube Ice Machine,PLC Control Edible Tube Ice Machine,Adjustable Thickness Tube Ice Machine |
||

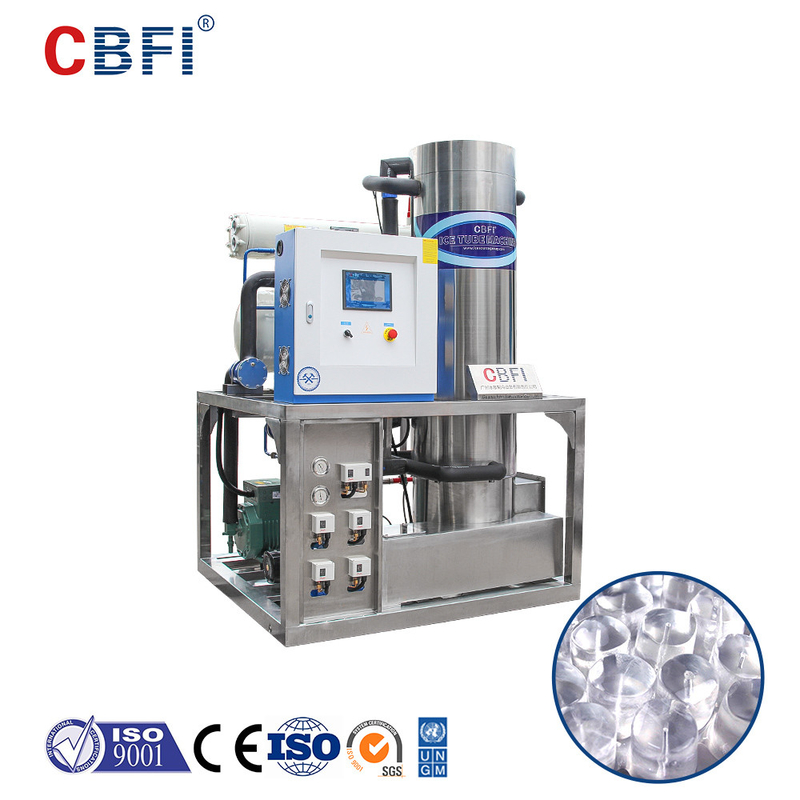

High Quality Factory Manufacturing Edible Tube Ice Machine with Adjustable Thickness 3t / Day
The Adjustable Thickness Edible Control Tube Ice Machine is a top-quality factory-produced machine that can produce three tons of ice per day. This machine has a number of features that make it ideal for a variety of different scenarios, from small businesses to large-scale operations.
One of the main features of the machine is its adjustable thickness capability. This allows the user to easily adjust the thickness of the ice to their specific needs. This is particularly useful in food service operations where different types of food require different types of ice. For example, thicker ice is ideal for use in blended drinks and smoothies, while thinner ice is better suited for use in cocktails and other beverages.
Another key feature of the machine is its high production capacity. With a daily output of three tons of ice, this machine is ideal for use in high-volume operations such as hotels, restaurants, and cafeterias. Its production capacity ensures that it can meet the demands of even the busiest of operations without any downtime or delays.
The machine also boasts a number of safety features that make it ideal for use in a variety of settings. These include features such as automatic shutoff and overheat protection, which help to prevent any potential safety hazards from occurring during operation.
Other features of the machine include a user-friendly interface, easy-to-clean components, and a compact design that makes it easy to store and transport. Additionally, its energy-efficient operation ensures that it is both cost-effective and environmentally friendly.
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change.) |
|||||||
