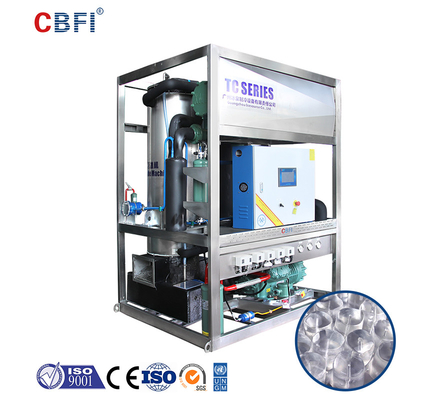

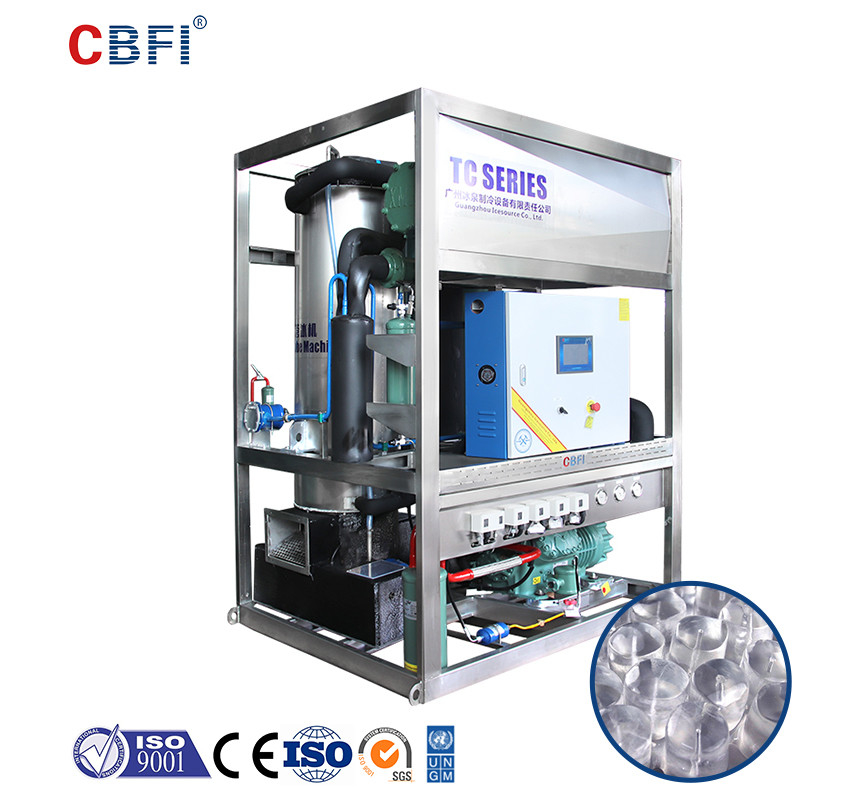

Product Details:
|
| Name: | Tube Ice Making Machine | Capacity: | 5 Tons |
|---|---|---|---|
| Control System: | PLC | Ice Length: | 30~55mm |
| Ice Diameter: | 22mm,28mm,35mm | Cooling Way: | Water Cooling/Air Cooling |
| Key Selling Points: | High-accuracy | Application: | Industrial Or Commercial |
| High Light: | PLC Control Ice Tube Machine,Ice Tube Machine 5 Ton |
||
High Quality Ice Factory Tube Ice Machine 5 Ton for Beverage Drinks in Indonesia Mexico Italy
The popularity of high-quality 5-ton tube ice plants in Indonesia, Mexico, and Italy is on the rise. As these countries continue to expand their economies, the need for effective cooling and preservation techniques increases. With the help of modern technology, industrial-grade tube ice plants have become the go-to choice for many businesses in these countries.
The 5-ton tube ice plants have gained a reputation for reliability and efficiency. They are ideal for large-scale manufacturing, preserving perishable goods, and cooling beverages. The tube ice produced by these plants is crystal clear, uniform in size, and hygienic, making it perfect for displays in bars and restaurants.
In Indonesia, the food and beverage industry has seen tremendous growth in recent years. The 5-ton tube ice plants have become increasingly popular in this sector, as they offer a cost-effective and efficient way of cooling beverages. With the ability to produce up to 5 tons of tube ice per day, these plants have become a key component of many businesses in the food and beverage industry in Indonesia.
Mexico, on the other hand, has a large agricultural sector. The country exports a significant amount of agricultural products, and the 5-ton tube ice plants have become an essential tool for preserving these products. The tube ice plants ensure that the agricultural products are kept at the right temperature and are preserved for longer periods, thereby reducing wastage and increasing profits for farmers and exporters.
In Italy, the food industry is renowned for its quality and innovation. The 5-ton tube ice plants have become an integral part of this industry by providing a reliable and cost-effective way of cooling beverages and preserving perishable goods. They are also used in many other sectors such as healthcare, where cooling is essential to maintain the effectiveness of drugs and other medical products.
| TV50 5 ton Tube Ice Machine Parameters | ||||
| Name | Unit | Parameter | ||
| Tube Diameter | mm | Φ22 | Φ28 | Φ35 |
|
Bitzer Compressor Parameter |
Model | 6HE-28 | ||
| Cooling Capacity(kW) | 56.8 | |||
| Power(kW) | 19.9 | |||
|
Condenser |
Model | WN-25 | ||
| Heat Exchange(kW) | 95.2 | |||
| Condensing Temperature | Degree Celsius(℃) | 40 | ||
| Evaporating Temperature | Degree Celsius(℃) | -12 | ||
| Ambient Temperature | Degree Celsius(℃) | 32 | ||
| Water Temperature | Degree Celsius(℃) | 20 | ||
| Refrigerant | R507 | |||
| Voltage | V/P/HZ | 380/3/50 | ||
|
Motor Power |
Ice Cutting Motor(kW) | 1.5 | ||
| Recircling Pump(kW) | 1.5 | |||
|
Cooling Tower |
Model | LX-30 | ||
| Power(kW) | 0.55 | |||
|
Cooling Pump |
Model | GD65-19 | ||
| Power | 2.2 | |||
| Cooling Fan Power | Power(kW) | 0.75 | ||
| Water Cooling Machine Dimension | L*W*H(mm) | 1600*1400*2250 | ||
| Refrigerant Quantity | kg | 100 | 120 | 140 |
| Machine Weight | kg | 180 | ||
