Product Details:
|
| Name: | Ice Tube Machine | Capacity: | 30Ton/Day |
|---|---|---|---|
| Cooling Method: | Compressor | Control System: | PLC |
| Refrigerant: | R507/R404A | Ice Shape: | Tube Ice |
| Function: | Ice Making & Storage | ||
| High Light: | PLC Tube Ice Machine,Tube Ice Machine 30 Ton / Day |
||

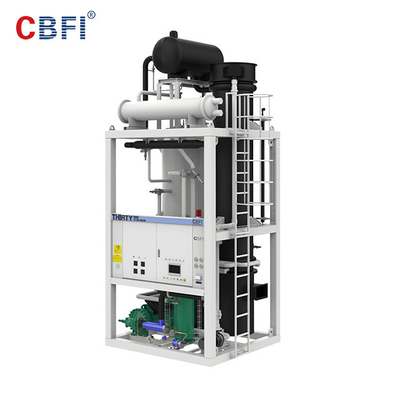

Water Cooler Tube Ice Machine 30Ton/Day for Food Production
With the rising popularity of food grade tube ice machines in Indonesia, it's important to understand the features of a reliable machine.
This type of machine has several advantages. First, it can produce a large amount of food grade tube ice per day, ensuring a steady supply for any restaurant or food manufacturer. Second, water-cooled machines are much more efficient than air-cooled units, which can increase the total energy savings for the facility.
Another key feature is the high-quality materials used in construction. Stainless steel and food-grade plastics are used throughout the machine to ensure that ice produced is safe for consumption. And with easy-to-use controls and automated cleaning cycles, operation is simplified.
In terms of the popularity of food grade tube ice in Indonesia, there has been a steady increase in demand for this product. With its many advantages, including the ability to preserve and carry food ingredients with ease, it's no wonder why pipe ice machines are becoming an integral part of the food industry. Additionally, the ability to control the size and shape of the ice produced can also provide a unique touch to culinary creations.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2.Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3.Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4.(Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5.(The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
