Product Details:
|
| Product Name: | Cube Ice Factory | Capacity: | 10 Tons |
|---|---|---|---|
| Ice Shape: | Cube | Compressor: | High-efficiency |
| Refrigerant: | R507 /R404a | Cooling Method: | Water Cooling / Air Cooling |
| Material: | Stainless Steel | Size Of Cube Ice: | 22*22*22 Mm ; 29*29*22 Mm ; 38*38*22 Mm |
| High Light: | Ice Cube Machine 10 Tons / Day,Edible Ice Cube Machine |
||

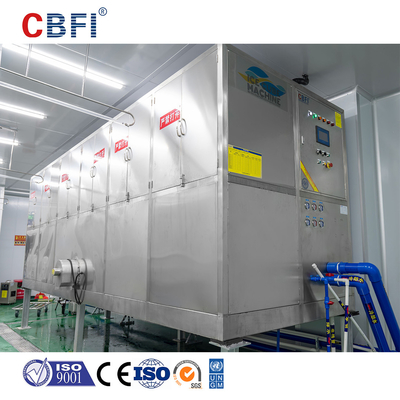

Compact Layout and Fully Equipped High Efficient Factory Supply Ice Cube Machine 10 Tons/Day Edible Cube Ice Factory
With the rise in temperature and humidity, there is a growing demand for ice in various industries such as catering, hotels, bars and even hospitals.
One such factory is the 10-ton/day commercial cube ice maker plant which has the capacity to produce large quantities of high-quality edible ice. With its state-of-the-art equipment and compact layout, this factory is the perfect solution for businesses looking to meet the growing demand for ice in a cost-effective and timely manner.
One of the key advantages of the 10-ton/day commercial cube ice maker plant is its efficient and streamlined process. With a modern and fully-automated system, the factory can produce and package ice in a fraction of the time it takes other factories. This means that businesses can get their bulk orders of ice delivered to them quickly and efficiently, which has a positive impact on their operations.
In addition to being efficient, the factory is also well-equipped to produce different types of edible ice. From clear ice for high-end drinks to flake ice for preserving seafood and other perishables, the factory has the ability to cater to the different needs of its clients. This versatility sets it apart from other factories, which may only specialize in one or two types of ice.
Another advantage of the 10-ton/day commercial cube ice maker plant is its high-quality ice. The factory uses only the best materials to produce its ice, ensuring that it is clean, clear and free from impurities. This not only ensures that the ice is safe for consumption, but also enhances the overall experience for customers.
The factory is located in an area with a high demand for ice, which means that businesses can easily access the ice they need. With a dedicated delivery service, the factory can transport the ice to customers in a timely and cost-effective manner.
|
Large capacity cube ice machine for hotels & restaurants paremeters
|
|||||||
|
Model Parameters
|
CV 1000
|
CV 2000
|
CV 3000
|
CV 5000
|
CV 10000
|
CV 20000
|
|
|
Daily output (T/24 h)
|
1
|
2
|
3
|
5
|
10
|
20
|
|
|
Compressor Power
|
4.34 kw
|
7.88 kw
|
10.58 kw
|
21 kw
|
42 kw
|
73.5 kw
|
|
|
Fan Power of Cooling Tower
|
0.18 kw
|
0.37 kw
|
0.56 kw
|
0.75 kw
|
1.5 kw
|
2.2 kw
|
|
|
Cooling Pump Power
|
1.1 kw
|
1.5 kw
|
1.5 kw
|
2.2 kw
|
4 kw
|
5.5 kw
|
|
|
|
L (mm)
|
1800
|
1630
|
1980
|
2890
|
5730
|
7100
|
|
W (mm)
|
1000
|
1600
|
1630
|
1780
|
1780
|
2250
|
|
|
H (mm)
|
1700
|
1706
|
1860
|
1860
|
2130
|
2300
|
|
|
Unit N.W. (kg)
|
800
|
1000
|
1200
|
1600
|
3000
|
5000
|
|
|

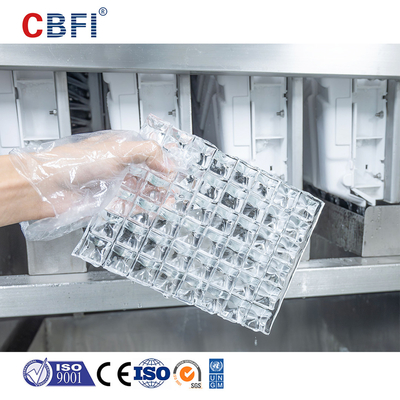

1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.
2. Compressor brand: Bizter / Frascold; refrigerant: R507/ R404A;Cooling Method: Water Cooling / Air Cooling.
3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icesource, there will be further notice, if there any technical change. |
|||||||
