Product Details:
|
| Product Name: | Cube Ice Machine | Ice Shape: | Cube Ice |
|---|---|---|---|
| Material: | Stainless Steel | Key Selling Points: | High-accuracy |
| Refrigerant: | R507 /R404a | Cooing Way: | Water Cooling, Air Cooling, Evaporative Cooling |
| Compressor Brand: | Frascold, Bitzer, Hitachi, Copeland | Cube Ice Size: | 22mmx22mmx22mm Or 29mmx29mmx22mm |
| High Light: | Stainless Steel Ice Cube Machine,Industrial R404a Ice Cube Machine |
||

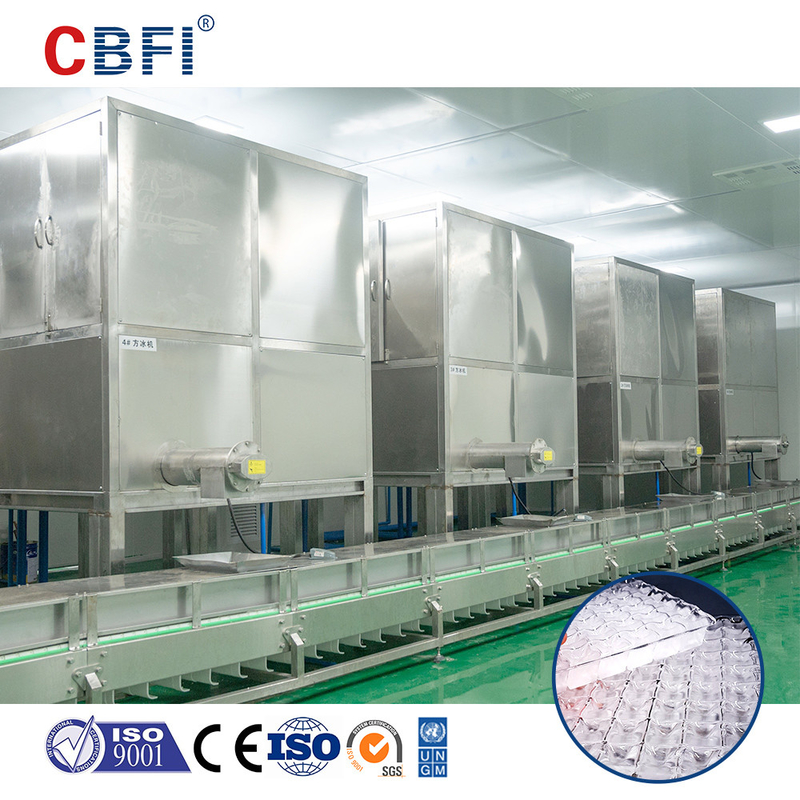

Cube Ice Machine Industrial Cube Ice Production Plant China Manufacturer
The industrial cube ice plant is designed to produce large amounts of ice for industrial use. It is a comprehensive equipment system that includes several important elements, such as cooling systems, ice machines, ice storage tanks, and ice delivery systems.
Here are some of the characteristics of the industrial square ice plant:
1. High Production Capacity: Industrial cube ice plants are designed to produce large amounts of ice. They can produce up to 50 tons of ice per day, making them the ideal solution for industries that require a lot of ice, such as fishing, food processing, and chemical manufacturing.
2. Efficiency: The ice production process in an industrial cube ice plant is highly efficient. These plants use the latest technology, such as automatic ice-making systems, which reduces energy consumption and increases efficiency.
3. Customization: Industrial cube ice plants can be customized to meet the specific needs of different industries. This means that the size, capacity, and features of the plant can be adjusted to match the requirements of the industry that it serves.
4. Durability: Industrial cube ice plants are built to last. They are made from high-quality materials that can withstand harsh environments and heavy usage. This means that they require minimal maintenance and have a long lifespan.
5. Environmental Friendliness: Modern industrial cube ice plants are designed to be energy-efficient and environmentally friendly. They use refrigerants that are safe for the environment and can recycle waste heat to produce hot water, reducing the overall energy consumption of the plant.
The industrial cube ice plant has a bright future in terms of its development prospects. With the growth of the global economy and the increasing demand for ice, the market for industrial square ice plants is expanding rapidly. As a result, many countries are investing in the development of these plants to boost their industrial production and gain a competitive edge in the market.
In addition, the industrial cube ice plant is an essential component of many industries. It is used in the fishing industry to preserve seafood and in the food processing industry to cool and freeze products. It is also used in the chemical and pharmaceutical industries to cool chemicals and medicines during production.
Furthermore, the increasing emphasis on energy conservation and sustainable development is driving the development of more efficient and environmentally friendly industrial square ice plants. These innovations are expected to further increase the demand for industrial square ice plants in the future.
|
Large capacity cube ice machine for hotels & restaurants paremeters
|
|||||||
|
Model Parameters
|
CV 1000
|
CV 2000
|
CV 3000
|
CV 5000
|
CV 10000
|
CV 20000
|
|
|
Daily output (T/24 h)
|
1
|
2
|
3
|
5
|
10
|
20
|
|
|
Compressor Power
|
4.34 kw
|
7.88 kw
|
10.58 kw
|
21 kw
|
42 kw
|
73.5 kw
|
|
|
Fan Power of Cooling Tower
|
0.18 kw
|
0.37 kw
|
0.56 kw
|
0.75 kw
|
1.5 kw
|
2.2 kw
|
|
|
Cooling Pump Power
|
1.1 kw
|
1.5 kw
|
1.5 kw
|
2.2 kw
|
4 kw
|
5.5 kw
|
|
|
|
L (mm)
|
1800
|
1630
|
1980
|
2890
|
5730
|
7100
|
|
W (mm)
|
1000
|
1600
|
1630
|
1780
|
1780
|
2250
|
|
|
H (mm)
|
1700
|
1706
|
1860
|
1860
|
2130
|
2300
|
|
|
Unit N.W. (kg)
|
800
|
1000
|
1200
|
1600
|
3000
|
5000
|
|
|
1. Size of cube ice: 22*22*22 mm ; 29*29*22 mm ; 38*38*22 mm.
2. Compressor brand: Bizter / Frascold; refrigerant: R507/ R404A;Cooling Method: Water Cooling / Air Cooling.
3. Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). 4. Operating Conditions: T(water supply):20 ℃, T(ambient):32 ℃, T(condensing): 40 ℃, T(evaporating):-10 ℃. 5. Note: The actual ice production varies due to the influence of the water supply temperature and ambient temperature. 6. The final interpretation of the above mentioned parameter is in Icesource, there will be further notice, if there any technical change. |
|||||||
