Product Details:
|
| Product Name: | Direct Cooling Ice Block Machine | Compressor: | Copeland/Bitzer |
|---|---|---|---|
| Cooling Method: | Air Cooling/Water Cooling | Refrigerant: | R507/R404A |
| Ice Size: | Customized | Ice Shape: | Block Ice |
| Evaporator: | Stainless Steel | Control Mode: | Automatic/Semi-automatic |
| High Light: | Direct Cooling Ice Block Making Machine,Automatic Ice Block Making Machine |
||

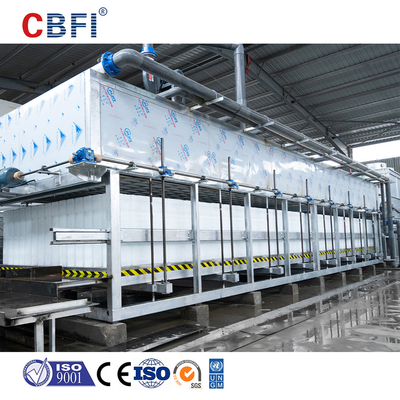

Direct Cooling Ice Block Making Machine With Automatic Ice Harvest And Ice Pushing System
Direct block ice machines are commonly used in settings such as food and beverage production facilities, hospitals, and research companies. These machines are designed to produce large quantities of ice for industrial use. Modern direct block ice machines are equipped with features such as automatic ice harvesting, ice thickness control, and automatic defrosting, making them highly efficient and easy to use.
Features
| Automatic Ice Harvesting System | Direct block ice machines are equipped with an automatic ice harvesting system, which automatically harvests ice blocks when they are ready. This feature ensures that the ice blocks are of consistent size and shape, making them easy to handle and transport. Additionally, the automatic ice harvesting system saves time and reduces the need for manual labor. |
| Ice Thickness Control | Direct block ice machines have an ice thickness control system, which allows users to adjust the thickness of ice blocks according to their needs. This feature ensures that the ice blocks are produced to exact specifications, making them suitable for use in a variety of settings. |
| Automatic Defrosting | Direct block ice machines are equipped with an automatic defrosting system, which reduces the need for manual defrosting. This feature ensures that the ice machine is always operating efficiently, saving time and reducing the need for costly repairs. |

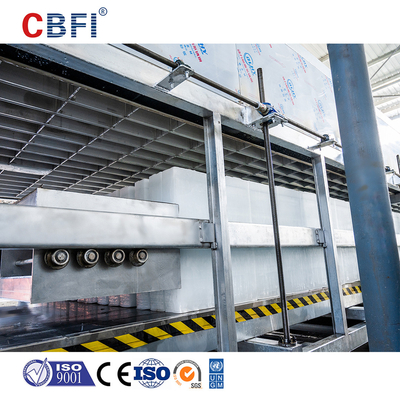

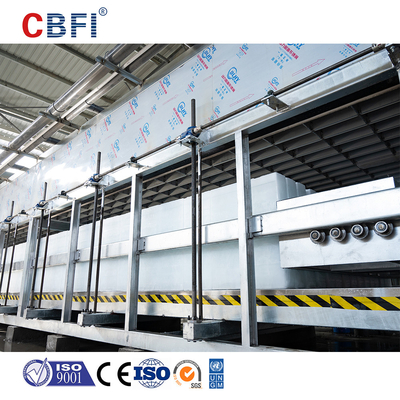

| Pusher System | Direct block ice machines are equipped with a pusher system, which pushes ice blocks out of the ice machine and into a storage bin. This feature ensures that the ice blocks are easily accessible and ready for use. |
Applications
1. Food and Beverage Production Facilities
Direct block ice machines are commonly used in food and beverage production facilities, where large quantities of ice are required for food storage, transportation, and display. The automatic ice harvesting, ice thickness control, and pusher system features ensure that the ice blocks are produced to exact specifications, making them suitable for use in a variety of settings.
2. Hospitals
Direct block ice machines are also used in hospitals, where ice blocks are required for medical purposes such as cooling down patients and keeping medication and samples at a stable temperature. The automatic ice harvesting, ice thickness control, and pusher system features ensure that the ice blocks are of consistent size and shape, making them easy to handle and transport.
3. Research Companies
Direct block ice machines are used in research companies, where ice blocks are required for scientific experiments and research projects. The automatic ice harvesting, ice thickness control, and pusher system features ensure that the ice blocks are produced to exact specifications, making them suitable for use in a variety of settings.
|
Direct Cooling Block Ice Machine Parameters
|
|||||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of Ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
L*W*H (mm)
|
||||||
|
ABI 10
|
12.02
|
4.22
|
2.2
|
5
|
120*100*500
|
2600*1100*2000
|
|
|
10
|
240*100*500
|
2600*1100*2000
|
|||||
|
ABI 20
|
22.9
|
7.7
|
3
|
5
|
120*100*500
|
2700*1510*2000
|
|
|
10
|
240*100*500
|
2700*1510*2000
|
|||||
|
ABI 30
|
30.9
|
10.33
|
4
|
10
|
240*100*500
|
3100*1650*2000
|
|
|
15
|
280*120*500
|
3400*1725*2000
|
|||||
|
ABI 50
|
61.8
|
20.5
|
5.5
|
20
|
260*120*730
|
4350*2310*2250
|
|
|
25
|
320*120*730
|
4500*2165*2250
|
|||||
|
No.
|
Cooling Capacity
(kw) |
Power
(kw) |
Lift Motor
(kw) |
Weight of ice (kg)
|
Ice Size
|
Machine Size
|
|
|
L*W*H (mm)
|
Compressor unit L*W*H (mm)
|
Evaporator L*w*H (mm)
|
|||||
|
ABI 100
|
95.8
|
32.22
|
7.5
|
25
|
320*120*730
|
6450*2600*2250 (one-piece)
|
|
|
11
|
30
|
310*150*730
|
2400*1700*2000
|
4900*2110*2250
|
|||
|
ABI 150
|
142.4
|
47.8
|
11
|
30
|
310*150*730
|
2950*2000*2250
|
5550*2460*2250
|
|
40
|
410*150*730
|
2950*2000*2250
|
5550*2460*2250
|
||||
|
ABI 200
|
185.4
|
61.5
|
15
|
40
|
410*150*730
|
3025*2200*2250
|
6800*2460*2600
|
|
50
|
350*180*950
|
3025*2200*2250
|
3800*2560*2600
|
||||
|
ABI 300
|
249.9
|
85.5
|
22.5
|
40
|
410*150*730
|
3325*2200*2500
|
6800*2460*2250*3
|
|
50
|
350*180*950
|
3325*2200*2500
|
6800*2460*2250*3
|
||||
|
1.Operating conditions: ambient temperature 32℃, water supply temperature 20℃. Due to the continuous updating of product technology, if the data is changed, it will be reflected in the quotation plan. The above data is for reference only, which is subject to actual conditions.
2.The above information is according to water cooled condenser spec. Size of machine is without cooling tower, cooling tower usually install in the outside.
3.Operating condition: water temperature: 23 Cent degree, evaporate temperature:-12 Cent degree, condensing temperature 40 Cent degree, reference valve under 50 Hz power supply. Real production of machine will have a little change according to change of water temperature and ambient temperature.
|
|||||||
