Product Details:
|
| Name: | Tube Type Ice Maker Machine | Compressor: | High Efficiency |
|---|---|---|---|
| Ice Shape: | Tube Ice | Unit Structure: | Integral |
| Automation: | Automation | Ice Tube Color: | Transparent |
| Refrigerant: | R507/R404a | Application Fields: | Food Processing |
| High Light: | Tube Type Ice Maker Machine,3000kg Ice Maker Machine,5000kg Air Cooled Tube Ice Maker |
||

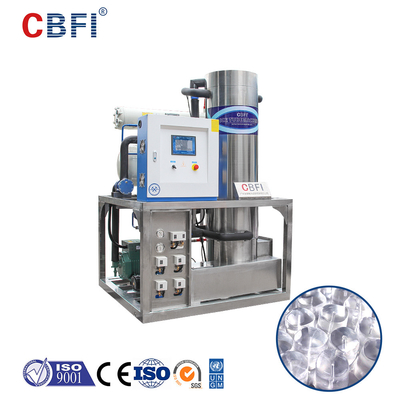

3000kg 5000kg Tube Type Ice Maker Machine Air Cooled Water Cooling Tube Ice Maker
Ice machines are essential equipment in many industries and households. They are used for making ice as well as for preserving products that require low-temperature conditions.
The 3-ton wind-cooled tube ice machine
The 3-ton wind-cooled ice machine is a compact and efficient ice machine that uses air as its refrigerant. Its compact size makes it suitable for use in small to medium-sized businesses like bars, cafes, and restaurants. The following are the features of the 3-ton wind-cooled ice machine:
1. Energy-efficient: The 3-ton wind-cooled ice machine uses a highly efficient compressor that consumes less energy than comparable machines.
2. Fast ice production: This ice machine can produce up to 3 tons of ice in 24 hours, making it ideal for businesses that require a constant supply of ice.
3. Low maintenance: Since this ice machine uses air as its refrigerant, it is relatively easy to maintain. There are fewer moving parts, and it does not require a water supply, reducing maintenance requirements.
4. Quiet operation: The 3-ton wind-cooled ice machine produces minimal noise, making it suitable for use in settings where noise can be a disruption.
The 5-ton water-cooled ice tube machine
The 5-ton water-cooled ice machine is a larger and more powerful machine than the 3-ton wind-cooled machine. It is ideal for businesses that require larger amounts of ice, like hotels, hospitals, or factories. The following are the features of the 5-ton water-cooled ice machine:
1. High production capacity: The 5-ton water-cooled ice machine can produce up to 5 tons of ice per day, which makes it suitable for large businesses that require a vast supply of ice.
2. Efficient cooling: Since water is a better conductor of heat than air, the 5-ton water-cooled ice machine uses water as its refrigerant, which makes it more efficient than the wind-cooled machine.
3. Low operating costs: The 5-ton water-cooled ice machine is more energy-efficient than traditional ice machines, resulting in lower operating costs.
4. Long lifespan: The 5-ton water-cooled ice machine has a significantly longer lifespan than other ice machines, reducing the need for frequent replacements.
Wind-cooled and water-cooled ice machines' appropriate scenarios
The choice between wind-cooled and water-cooled ice machines depends on several factors, including the availability of water, cost, and location.
Wind-cooled ice machines are suitable for businesses that have limited access to water or do not want to incur additional water costs. They are ideal for small to medium-sized businesses such as cafes, bars, and restaurants. Additionally, wind-cooled ice machines are quieter than water-cooled ice machines, making them suitable for use in sound-sensitive environments.
On the other hand, water-cooled ice machines are suitable for larger businesses or those that require a constant supply of ice. They are more energy-efficient than wind-cooled ice machines and have a higher production capacity. However, water-cooled ice machines require a substantial supply of water and are suitable for use in environments where water is abundant.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
