Product Details:
|
| Name: | Ice Tube Machine | Capacity: | 1-50 Ton |
|---|---|---|---|
| Material: | Stainless Steel | Tube Ice Length: | 30~55mm |
| Ice Making Cycle: | 16~22 Mins | Cooling Way: | Water Cooling/Air Cooling |
| Tube Ice Diameter: | 22mm,28mm And 35mm | Refrigerant: | R507/R404a |
| High Light: | 16 Mins Ice Tube Machine,Ice Tube Machine High Accuracy |
||

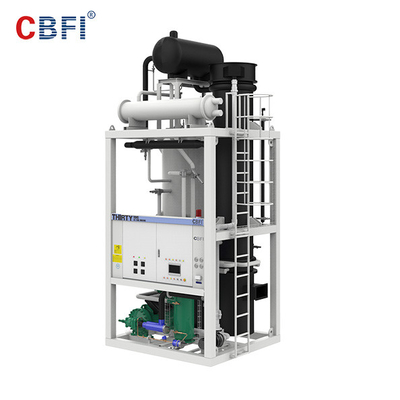

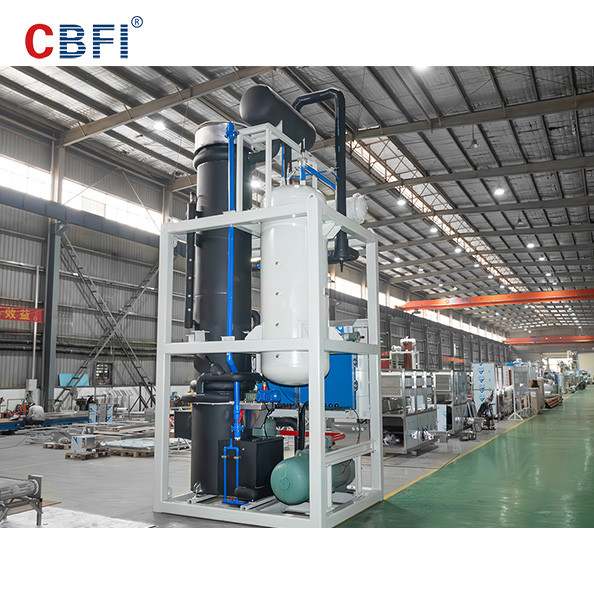

Efficient Ice Tube Machine with High-accuracy 16-22 Mins Ice Making Cycle
Ice is an essential element in many industries, including food and beverage, medical, and chemical. The production process of ice requires modern and efficient equipment to ensure that the ice produced meets the requirements of different industries. High-efficiency and high-precision ice tube machines with a 16-22 minute ice-making cycle are gradually being recognized by many customers due to their unique advantages.
Advantage 1: Energy-Saving and Environmental Protection
The design of the high-efficiency and high-precision ice tube machine includes an energy-saving system. This means that the machine can efficiently operate with minimum power consumption, resulting in significant energy savings. Additionally, the machine uses environmentally-friendly refrigerants that reduce environmental pollution. The energy-saving and environmental protection properties of the machine make it a sustainable choice for various industries.
Advantage 2: High Production Capacity
One of the critical advantages of high-efficiency and high-precision ice tube machines is their ability to produce large quantities of ice daily. These machines have a capacity of up to several tons of ice per day, which meets the requirements of many industries. The high production capacity of the ice tube machine ensures that industries with high demands for ice can be met.
Advantage 3: Automatic Control System
The high-efficiency and high-precision ice tube machine has an automatic control system that ensures that the machine operates at optimal levels. The automatic control system can adjust the cooling temperature, the ice-making cycle, and the power supply, depending on the environmental conditions. The automatic control system enables the machine to operate efficiently without human intervention, thus reducing the operating costs and the possibility of errors resulting from human input.
Advantage 4: High Precision Ice Production
The ice tube machine adopts a high-precision ice-making technology, which ensures that the ice produced meets the requirements of various industries. The high-precision ice-making technology ensures that the ice cubes produced are uniform in size and shape, which is critical to industries such as the food and beverage, medical, and chemical industries. The high precision ensures that the ice produced can be used in various applications without causing issues.
Advantage 5: Easy Maintenance
The high-efficiency and high-precision ice tube machine has a modular design that makes it easy to maintain. The modular design means that components can be easily replaced, making it easier for maintenance work to be carried out. Additionally, the machine has a self-cleaning system that reduces the need for manual cleaning. The easy maintenance properties of the machine result in reduced downtime, increased efficiency, and ultimately reduces operating costs.
Product Parameters
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
|
1. Compressor brand: Bitzer /Franscold ; Refrigerant: R 22/ R 404 A; Cooling Method: water cooling / air cooling.
2. Power supply:voltage 380V/3P/50Hz(for non-standard voltage, unit configuration needs to be calculated separately ).
3. Operating conditions: T (water supply):20℃ , T (ambient): 32℃, T(condensing):40℃, T (evaporating):-12℃. 4. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) 5. (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there any technical change. ) |
|||||||
