Denmark Danfoss Expansion Valves Ice Tube Maker Large Refrigerant Tank CE

Basic Information
Place of Origin: China
Brand Name: CBFI
Certification: ISO, CE
Model Number: TV
Minimum Order Quantity: 1 set
Price: USD 1~10000000
Packaging Details: wooden case or Bubble film
Delivery Time: 30 days after the deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 to 60 sets/ month
Contact Now
Detail Information
Condition: Brand New Output: 1 Ton To 30 Tons
Tube Ice Diameter: 22mm, 28m, 35mm Machine Shipping: One 20 Feet Container Or One 40 Feet Container
Compressor: Semi Hermetic Type Or Screw Type Control: Germany Siemens
Electric Accessories Brand: LG And Schneider Expansion Valves: Denmark Danfoss
Solenoid Valves: Italy Castal

Product Description

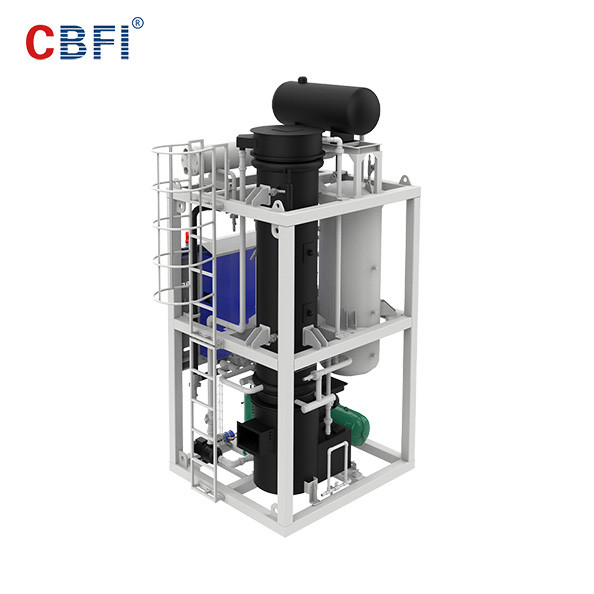

CBFI Stainless steel evaporator, Large refrigerant tank, Denmark Danfoss expansion valves Tube Ice Machine





Model Ice Making Capacity Rated Power Circulationg Water Pump Power Cooling Water Pump Capacity Cooling Fan Capacity Ice Cutter Motor Machine Dimension Weight of Machine
No. Ton/24h Kw Kw Kw Kw Kw WxHxL(mm) KG
TV10 1.0 4.28 0.55 1.1 0.18 0.75 1100x900x1760 900
TV20 2.0 7.77 0.55 1.5 0.37 0.75 1250x1000x1950 1200
TV30 3.0 12.33 1.1 1.5 0.56 0.75 1400x1100x2200 1500
TV50 5.0 21 1.5 2.2 0.75 1.5 1600x1400x2250 1800
TV100 10.0 29.2 1.5 4 1.5 1.5

1200x1200x3100

2300x1550x1800

3500
TV150 15.0 49 2.2 5.5 1.5 1.5

1500x1200x4500

2700x1950x2250

4250
TV200 20.0 58.5 2.2 5.5 2.2 2.2

1600x1300x4700

3100x2200x2250

6500
TV300 30.0 87.6 2.2 15 2.2 2.2

3000x2200x2500

2200x1900x6200

7200





Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by our engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.
