Stable Performance Ice Cube Maker Machine With 1 Ton - 20 Ton Daily Capacity

Basic Information
Place of Origin: Guangzhou,China
Brand Name: CBFI
Certification: CE
Model Number: CV10000
Minimum Order Quantity: 1 set
Price: $100,000
Packaging Details: International Standar Case
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Contact Now
Detail Information
Cooling Way: Air Cooling/Water Cooling Ice Size: 22*22*29/29*29*29mm
Evaporator: Cube Ice Mold Material: 304 Stainless Steel
Daily Capacity: 1 Ton- 20 Ton Container: International Standard Container

Product Description

stable performance Ice Cube Machine with famous brand components

Note:
1. Reference valve under 50Hz power supply 380v/50hz/3p, real production of machine will ahve a little change according to change of water temperature and ambient temperature.
2. The above information is according to adopt water cooled condenser
3. Size of machine is before installation, it did not mention size of cooling tower, and the cooling tower usually install in the outside.
Machine running condition:
1. evaporate temperature:-12 ℃,
2. condensing temperature: 38 ℃,
3. water temperature: 16 to 20℃,
Stable Performance Ice Cube Maker Machine With 1 Ton - 20 Ton Daily Capacity


Stable Performance Ice Cube Maker Machine With 1 Ton - 20 Ton Daily Capacity

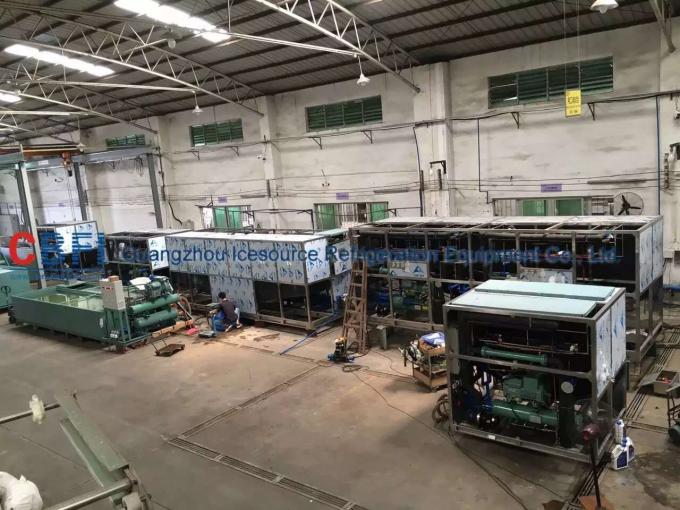

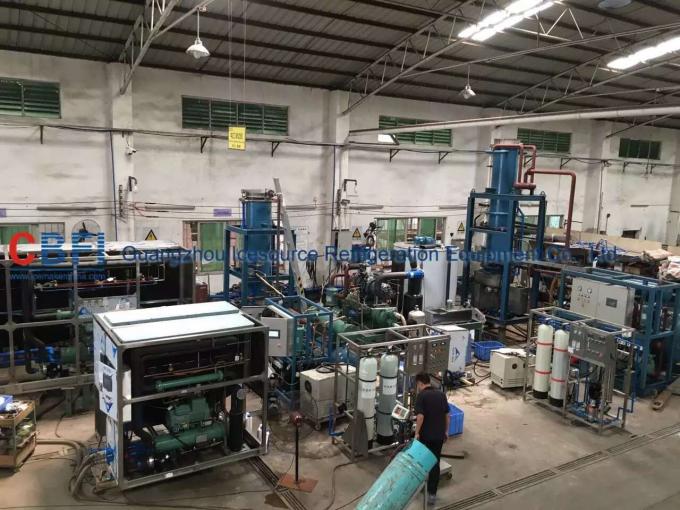

cube ice machine produce in our factory

Product Application

CBFI commercial cube ice maker is widely used in hotels, restaurants, bars, fast-food shops, supermarkets and cold drink shops, etc. CBFI cube ice machine is highly efficient, automatic operation, energy saving and environmental friendly and quickly becoming the most popular choice for clients around the world.



 Cube ice :
Cube ice size:
22mm x 22mm x 22mm,
29mm x 29mm x 22mm.


Product Model
Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
W*H*L(mm)
KG
CV1000
1.0
3.69
0.37
1.5
0.37
1800*1000*1600
800
CV2000
2.0
7.11
0.37
1.5
0.55
1630*1600*1686
1000
CV3000
3.0
9.68
0.37
2.2
0.75
1980*1630*1840
1200
CV5000
5.0
18.84
0.55
2.2
1.5
2890*1780*1840
1600
CV8000
8.0
28.52
1.1
4
1.5
4820*1780*2000
2500
CV10000
10.0
37.68
1.1
4
1.5
5730*1780*2000
3000
CV15000
15.0
52.41
1.65
5.5
2.2
8620*1780*2000
4500
CV20000
20.0
75.36
2.2
8
3
11460*1780*2100
6000
