Industrial Coil Pipes Brine Ice Block Machine 100kg 50kg

Basic Information
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: CE / ISO
Model Number: BBI Series
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1. Standard wooden case for packing main frame of block ice machine. Containerized design no need packing. 2. Machine installed completely and strictly tested in our factory before shipping. 3. Completely machine:ice machine, cooling tower, water pumps
Delivery Time: 30 working days after received your deposit
Payment Terms: T/T or western Union or moneygram
Supply Ability: 30 sets per month
Detail Information
Expansion Valve: Denmark Danfoss Cooling Way:: Water Cooling; Air Cooling ; Evaporative Cooling
Block Ice Weight: 5 Kg, 10 Kg, 20 Kg, 50 Kg, 100 Kg Compressor: Germany ; America Copeland ; Hanbell
Refrigerant: R22 Or R404a Electrical Component: LG
Capacity: 1000 Kg To 100000 Kg Ice Can Material: Stainless Steel 304
Evaporator: Coil Pipes
High Light:

Brine Ice Block Machine


50kg Ice Block Machine

Product Description

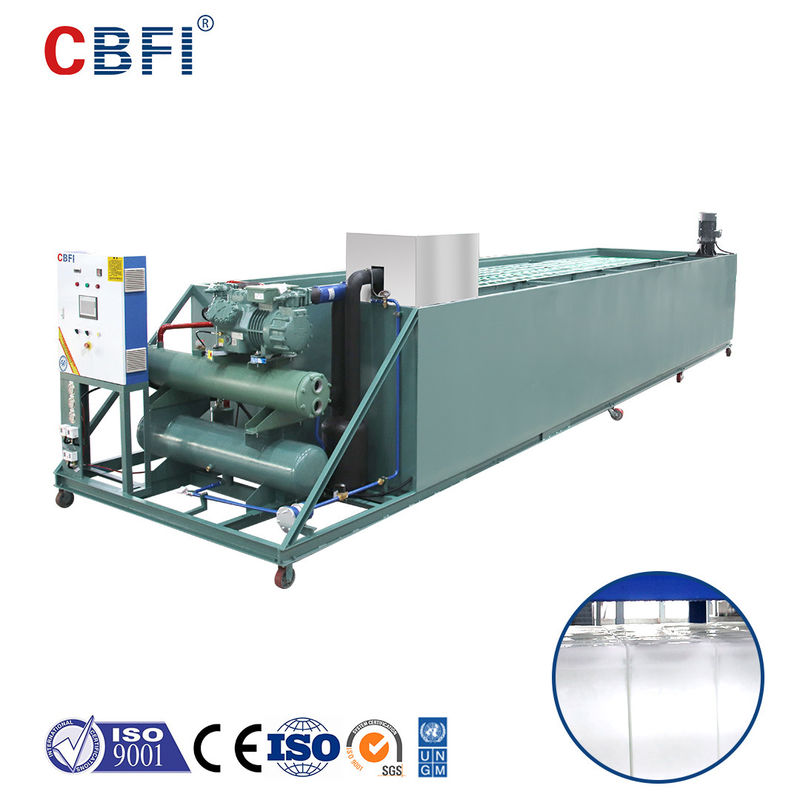

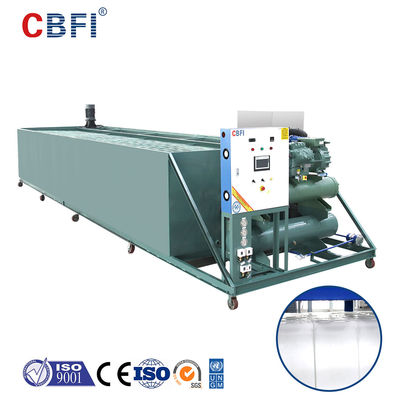

High Productivity Industrial Coil Pipes Brine Ice Block Machines


Industrial Coil Pipes Brine Ice Block Machine 100kg 50kg 0


BBI Series Block Ice Machine is the second generation ice block machine developed by CBFI, adopting coil pipe evaporator. For its high efficiency, low power consumption and more “fool” typed installation, the BBI ice block machine has enjoyed its popularity around the world.




BBI Series Block Ice Maker Machine Features


1. The temperature of ice is low and it can reach 10celsius belew zero.

2. Because of the block structure,it is convenient for store.

3. The integrity design and installation convenience,it can be used if you install electricity and water.

4. The principle is simple and the maintenance and repair is easy.

5. The ice-making tank adopt the Polyurethane foam technology. It promises a good hest insulation.

6. It can be made into different size of ice block machine to meet different currents' need to ice.

7. The large ice block machine use the crane to take ice,so the work quantity is small.

8. There are 1ton to 100tons production per day models to choose.




BBI Series Block Ice Maker Machine Projects

We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea.




Brine system block ice machine structure and application

(1)Brine system block ice machine structure: refrigeration unit, brine tank (ice making tank), water cooling tower/ air cooling fan, and necessary components. We will prepare the three in unit, you just need to connect the power and water pipes for the three parts. Pleas see the picture in the attachment.

(2)Daily production: 1 ton per day to 100 tons per day. And if the capacity is more than 20 tons per day, it cannot ship the whole machine in container. So we do the local installation and construction in your place.

(3)Weight of block ice: 2.5kg,5kg, 10kg, 20kg…100kg, also can be done as your requirement.

(4)Application: the block ice is use to reduce temperature, especially in Africa country where the power is not stable and the climate temperature is high. When the power is off, people use the block ice to cooling the drinking and beverage. And block ice is also used to keep fish fresh or crushed into small pieces to fresh vegetable and fruit.





Item Production
















Weight of


No. Ton/24H KW KW KW KW L*W*H KG
BBI10 1.0 3.92 2.2 1.5 0.37 2820*1410*965 900
BBI20 2.0 7.11 2.2 1.5 0.55



BBI30 3.0 9.68 2.2 2.2 0.75



BBI40 5.0 12.56 4 2.2 0.75



BBI50 5.0 14.6 4 2.2 1.5



BBI60 6.0 18.84 4 2.2 1.5



BBI80 8.0 21.30 4 4 1.5



BBI100 10.0 26.60 5.5 4 2.5



Note: Dimension of machine for reference only, its real size according to after final confirm size of each ice block and quantity of ice block cans. The above information is according to adopt water cooled condenser. Size of machine is before installation. It didn mention size of cooling tower, cooling tower usually install in the outside.







1. Whats the deliver time of your machine?

1~5ton, 30 days since the deposit arrived at our account, 5~20 ton, 45 days. (based on the electricity 380V/50Hz/3p, some special design lead time will be longer )

2. Whats the payment method you accept ?

Pay via Alibaba, T/T, LC, In Cash, Western Union, Money Gram. 30% deposit, balance should by paid before shipping.

3. How long the warranty for machine I buy ?

12 months since the deliver date.

4. how to install the machine ?

a. manual book and video will be provided to guide you how to install the machine, and also our service online

b. technician can be sent to customer’s site too, while the round ticket, visa, accommodation is at customer cost, Installation fee 100 USD/day/person. Local labors are necessary to support our technician’s work
