Product Details:
|
Capacity: | 5 Tons | Tube Lce Size: | Ice Diameter Is 22mm, 28mm And 35mm |
---|---|---|---|
Refrigerant: | R404a/R507 | Ice Storage Capacity: | Customized |
Expansion Valve: | Danfoss From Denmark | Solenoid Valve: | Castel From Italy |
Application: | Industrial Or Commercial | Core Components: | Pressure Vessel, Motor, Other, Bearing, Pump, Gearbox, |
High Light: | R507 Ice Tube Machine,5 Tons Ice Tube Machine |

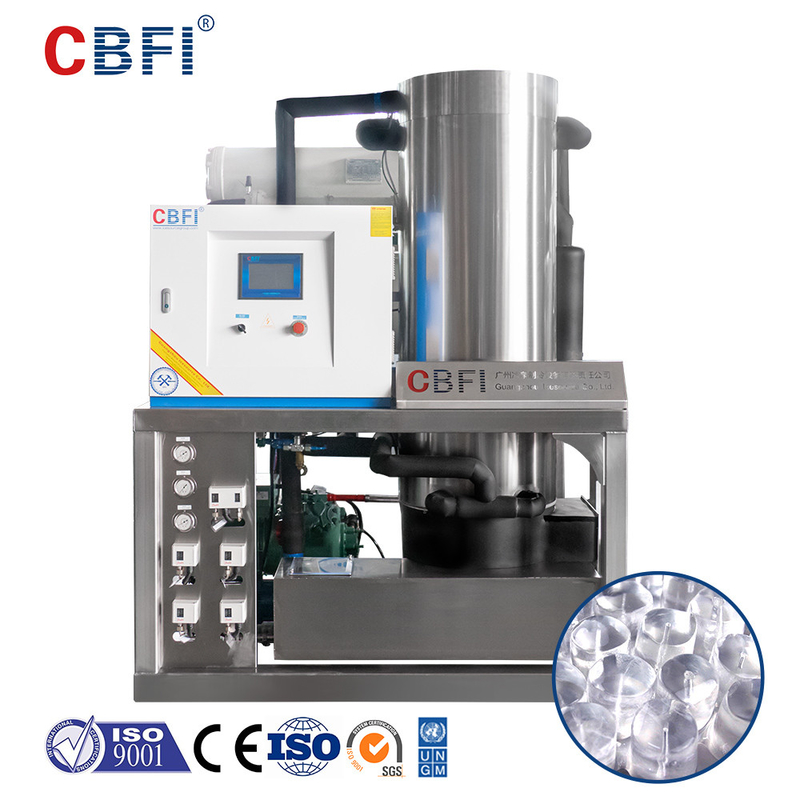

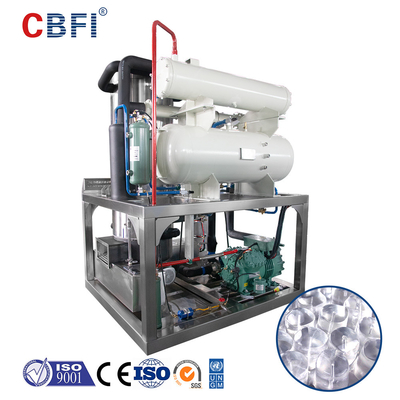

5 Tons Quality China Factory Big Capacity Commercial Industrial Tube Ice Making Ice Machine
Introduction to Our Company's Tube Ice Machine
Our company is a leading manufacturer of tube ice machines with a focus on delivering reliable, high-quality, and technologically advanced products to our customers. Our tube ice machines have a reputation for producing ice that is of a small diameter and has a smooth, even cut. In this article, we will introduce you to our tube ice machine and highlight its key features.
Reliability
Our tube ice machines are known for their reliability. With a sturdy frame, high-quality components, and cutting-edge technology, our machines are built to last. We use only the best materials and components in the manufacturing process to ensure that our machines can withstand rigorous use and provide reliable performance day in and day out.
Advanced Technology
Our tube ice machines are a reflection of the most advanced technology available in the industry today. Each machine is designed with precision and equipped with cutting-edge features that make the production process efficient, reliable, and easy to operate. The technology used in our machines ensures that they are easy to maintain, energy-efficient, and eco-friendly.
Small Diameter Tube Ice
One of the key advantages of our tube ice machines is that they produce ice with a small diameter. This makes it easier to handle, transport, and store the ice. The small diameter also means that the ice melts more quickly, making it ideal for applications where quick cooling is needed. With our tube ice machine, you can be assured that you will get high-quality ice that will meet your specific needs.
Product Parameters
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
Main Host
|
Brine Tank
|
||||||
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
Smooth Cut Ice
Our tube ice machines also produce ice that has a smooth, even cut. This is important because it makes it easier to handle and use the ice. It also looks more attractive and is more hygienic than ice that has an uneven cut. With our tube ice machine, you can be confident that you will get ice that is of the highest quality and meets your specific requirements.
Conclusion
In conclusion, our tube ice machine is a technologically advanced and reliable product that produces high-quality ice with a small diameter and smooth, even cut. Our commitment to quality, reliability, and innovation is evident in every aspect of our tube ice machine. Whether you need ice for a commercial or industrial application, you can rely on our tube ice machine to deliver ice that is of the highest quality and reliably meets your specific needs. Thank you for considering our tube ice machine, and we look forward to serving you soon.
