|Place of Origin:||Guangzhou, China|
|Certification:||ISO, CE, BV, SGS|
|Minimum Order Quantity:||1 set|
|Price:||USD1 - USD999999|
|Packaging Details:||Standard wooden case for the 1 ton Tube ice machine|
|Delivery Time:||30 work days|
|Payment Terms:||Western Union, L/C, T/T, MoneyGram|
|Supply Ability:||60 set per month|
|Tube Ice Machine Type:||Freon System Commercial Tube Ice Maker Machine||Expansion Valve:||Denmark Danfoss|
|Electrical Components:||LG||Refrigerant:||Freon R22/R404a|
|Warranty:||12 Months||Voltage:||AC / 3 Phase / 200-600V|
|Tube Ice Diameter:||22 Mm, 28 Mm, 38 Mm||Tube Ice Length:||30 Mm To 50 Mm|
|Compressor:||Germany / Germany Bock/ America Copeland||Daily Capacity:||1 To 30 Tons|

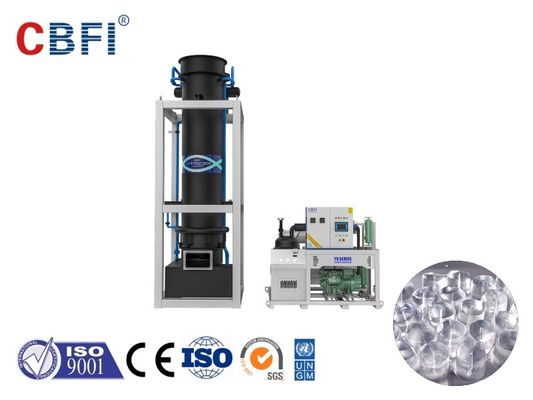

R22 Tube Ice Maker Machine,
7.2KW Tube Ice Maker Machine
1 To 30 Tons Freon System Commercial Tube Ice Maker Machine Operation
1. Ice tube machine for produce food grade ice too, tube ice is edible ice.
2. Diameter of tube ice we usually design it as 22mm, 28mm, or 35mm,Length of ice is about 30 mm to 50 mm.
3. Daily capacity of ice tube machine can be from 1 ton to 40 tons.
4. Tube ice macine was designed save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.
|Item||Compressor||Water circulating pump||Ice cutter||Cooling tower||Water pump|
|Cooling capacity||Power||Power||Power||Fan Motor Power||Power|
|1 ton||17.8 KW||7.2 KW||0.37 KW||0.75 KW||0.18 KW||1.1 KW|
|2 tons||22.3 KW||7.9 KW||0.55 KW||0.75 KW||0.37 KW||1.5 KW|
|3 tons||30.1kw||10.6 kw||1.1 KW||0.75 kw||0.56 KW||1.5 KW|
|5 tons||60.2 kw||21 kW||1.5 KW||1.5 KW||0.75 kw||2.2 KW|
|10 tons||83.3 kW||29.2 kW||1.5 KW||1.5 KW||1.5 KW||4 kw|
|15 tons||139 kw||49 kW||2.2 KW||1.5 kw||1.5 kw||5.5 kw|
|20 tons||166.6 kw||58.5 kw||2.2 kw||2.2 kw||2.2 kw||5.5 kw|
|30 tons||249.9 kw||87.6 kw||2.2 kw||2.2 kw||2.2 kw||7.5 kw|
1. It can be directly eaten
2. It can be used to freeze drinks
3. Mix wines
4. Cool food stuffs
5. Make ice pastries and keep fresh
1. Perfect design: adopt 3D simulation assembly, compact structure,easy operate and maintain
2. health: all the metal of the ice-making machine that will touch with water are SUS304,impurities and metal ions that effect transparent function was discharged from circulating bin during the end of each cycle of ice making.
3. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
4. Full automatically: PLC system controls the whole ice making process.
Tube ice maker machien technical parameters:
1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
3. The delivery time normally is 30 days after receive the deposit.
4. If necessary, we will arrange the shipping for you.
The above information is according to adopt water cooled condenser.
Size of machine is before installation. Size of machine is the same with the size before
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
1. water temperature: 28Centi degree,
2. evaporate temperature: -12Centi degree,
3. condensing temperature: 40Centi degree,
4. reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
some questions and answers here:
1. Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2. Q: do you test the ice machine in your factory?
A: yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
3. Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
