|Machine Weight:||900KG||Water Cooling Machine Dimension:||1100*900*1780|
|Electrical Components:||LG||Refrigerant:||Freon R22/R404a|
|Warranty:||1 Year||Voltage:||V/P/HZ 380/3/50|
|Tube Ice Diameter:||22 Mm, 28 Mm, 38 Mm||Cooling Tower:||0.25KW|
|Compressor:||Germany / Germany Bock/ America Copeland||Daily Capacity:||1 To 30 Tons|
Commercial Ice Tube Maker,
Ice Tube Maker 17.8KW,
1 Ton Tube Ice Machine

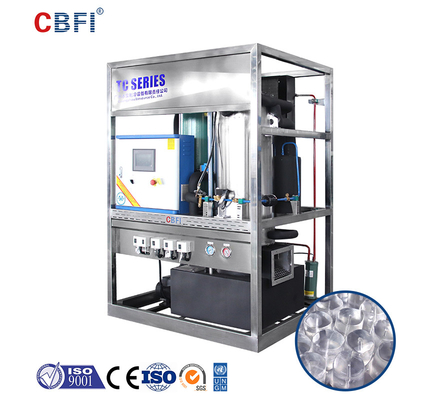

Commercial 1 ton Ice Machine/Ice Tube Maker/industrial Ice Tube Ice Making Machine
|Item||Compressor||Water circulating pump||Ice cutter||Cooling tower||Water pump|
|Cooling capacity||Power||Power||Power||Fan Motor Power||Power|
|1 ton||17.8 KW||7.2 KW||0.37 KW||0.75 KW||0.18 KW||1.1 KW|
|2 tons||22.3 KW||7.9 KW||0.55 KW||0.75 KW||0.37 KW||1.5 KW|
|3 tons||30.1kw||10.6 kw||1.1 KW||0.75 kw||0.56 KW||1.5 KW|
|5 tons||60.2 kw||21 kW||1.5 KW||1.5 KW||0.75 kw||2.2 KW|
|10 tons||83.3 kW||29.2 kW||1.5 KW||1.5 KW||1.5 KW||4 kw|
|15 tons||139 kw||49 kW||2.2 KW||1.5 kw||1.5 kw||5.5 kw|
|20 tons||166.6 kw||58.5 kw||2.2 kw||2.2 kw||2.2 kw||5.5 kw|
|30 tons||249.9 kw||87.6 kw||2.2 kw||2.2 kw||2.2 kw||7.5 kw|
1. It can be directly eaten
2. It can be used to freeze drinks
3. Mix wines
4. Cool food stuffs
5. Make ice pastries and keep fresh
1. Daily Production 1 ton per 24 hrs
2. Air cooled or water cooled provided
3. 3D designed to ensure the container transportation. Easy for installation & maintaining
4. All materials have contact with ice we use food grade SUS304 stainless steel to ensure the safety of our ice.
5. All materials have contact with ice we use food grade SUS304 stainless steel to ensure the safety of our ice.
6. Easy to operate, touch screen human friendly interface.
1. The payment can be T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
3. The delivery time normally is 30 days after receive the deposit.
4. If necessary, we will arrange the shipping for you.
The above information is according to adopt water cooled condenser.
Size of machine is before installation. Size of machine is the same with the size before
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
1. water temperature: 28Centi degree,
2. evaporate temperature: -12Centi degree,
3. condensing temperature: 40Centi degree,
4. reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
