1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant

1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant
1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant

Large Image :  1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant

Product Details:
Place of Origin: Guangzhou,China
Brand Name: CBFI
Certification: CE, ISO
Model Number: BBI
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: $100,000
Packaging Details: International Standard Wooden Case
Delivery Time: 30 days after payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 30 sets per month
Contact Now

1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant

Description
Compressor: Germany Cooling Way: Water Cooling
Size Of Ice: 5kg,10kg,15kg,20kg…… Evaporator: Coil Pipe
Daily Capacity: 1ton To 120ton Refrigerant: R507 Or R404a Or R507
Packing: International Standard Wooden Case Electrical Components: South Korea LG
Certification: CE
Highlight:

Block Ice Maker

,

Industrial Ice Block Making Machine



CBFI 1 ton, 2 ton, 5 ton, 10 ton Block Ice Machine with Brine Water Tank, Fast Ice Making

1. Block ice weight:

5kg, 10kg, 15kg, 20kg, 25kg.

1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 0

5kg block ice



1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 1

25kg block ice



2. Application:

  • Ice factory of the ports and docks,
  • Fressh for aquatic products
  • Distance transportation
  • Fishery
  • Food preservation
  • Special areas of cooling
  • Ice sculpture.

1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 2



1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 3

3. Machine details:

  • Capacity: 1 ton to 100 ton per 24 hours
  • Power consumption: 75kw.h per ton
  • Working condition: environmental temperature 32℃,water supply temperature 20℃

1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 4



1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 5



4. Machine modle:



Model Ice Making
Capacity		 Rated
Power		 Agitator
Power		 Cooling Pump
Power		 Cooling Fan
Power		 Machine
Dimension		 Weight
NO. Ton/24h KW KW KW KW L*W*H(mm) KG
BBI-01-s2 1 3.92 1.5 1..1 0.18 2600*1400*830 990
BBI-02-s2 2 6.42 1.5 1.5 0.37 3600*1700*795 1100
BBI-03-s2 3 8.66 2.2 1.5 0.56 4320*1670*795 1300
BBI-04-s2 4 11.19 2.2 2.2 0.75 2000*800*1600
/3110*1470*1075		 1500
BBI-05-s2 5 13.07 2.2 2.2 0.75 6690*1880*800 1700
BBI-06-s2 6 16.79 3 2.2 0.75 2000*800*1600
/5340*1380*1150		 1900
BBI-08-s2 8 19.61 4 4 1.5 8490*2000*1370 2300
BBI-10-m2 10 24 4 4 1.5 2500*1200*2000
/6360*3710*1565		 2700
BBI-15-m2 15 47.54 8 7.5 1.5 3100*1200*2000
/9280*2260*1560		 3700
BBI-20-l2 20 71.5 8 7.5 2.2 3500*1500*2200
/11560*4200*1565		 4700
BBI-30-l2 30 107.7 16 15 4 3500*1500*2200
/11560*5430*1600		 6700
BBI-40-l2 40 156 16 15 4.4 2*3500*1300*2200
/11560*7080*1600		 8700
BBI-50-l2 50 183.5 16 11 3 2*3500*1300*2200
/14170*7080*1600		 10700
BBI-100-l2 100 274.8 30 30 15 4*3500*1300*2200
/12000*13500*1450		 21400





5. Machine feature:

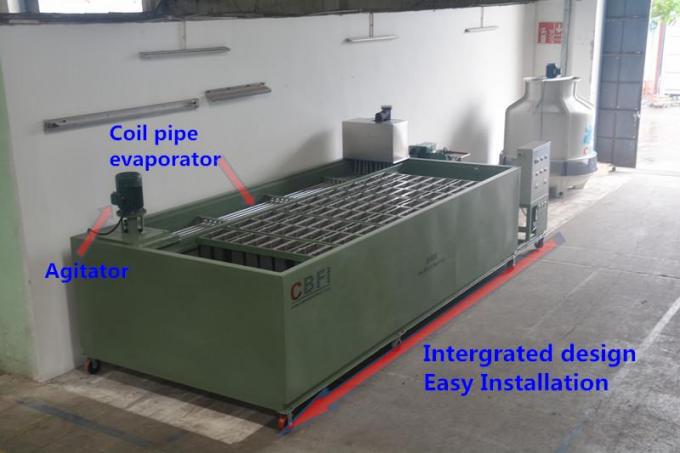

  • Ice block machine have brine design, containerized design and direct evaporate design use stainless stee l make ice cans).
  • Ice block machine for producing big block ice, can design each ice block as 2.5kg, 5kg, 10kg, 15kg, 20kg, or 25kg...... the size all depends on customers' demands.
  • It is big ice so can keep for long time. For some countries, specially, Africa country the power supply is n ot steady, so need big ice keep fresh for food or some other things or chilling drinks and water.
  • Daily capacity of ice block machine can be from 1ton to 100tons.
  • The ice- making tank adopt the Polyurethane foam technology. it promises a good heat insulation.
  • The large ice block machine use the crane to take ice, so the work quantity is small.
  • The integrity design and installation conveniece , it can be used if you install electricity and water.

6. Machine running condition:

  • 1.water temperature: 28 Centi degree
  • 2.evaporate temperature:-12 Centi degree
  • 3.condensing temperature: 40 Centi degree
  • 4.reference valve under 50Hz power supply.
  • Real production of machine will have a little change according to change of water temperature and ambient temperature.

7. Customer cases:

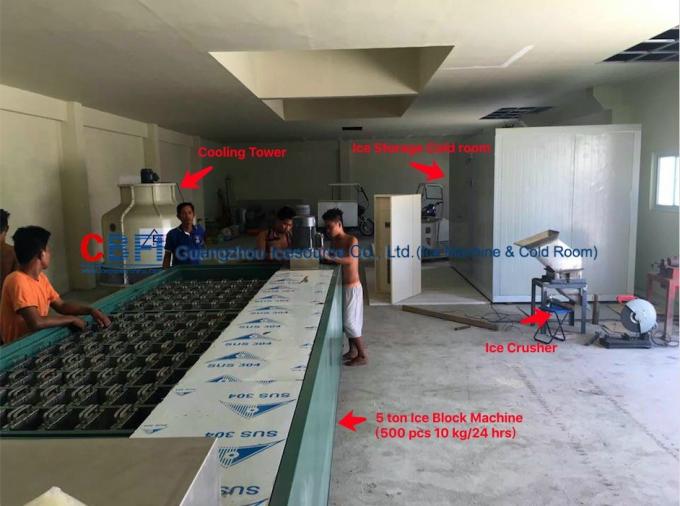

CBFI container block ice machine for Chad



1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 6

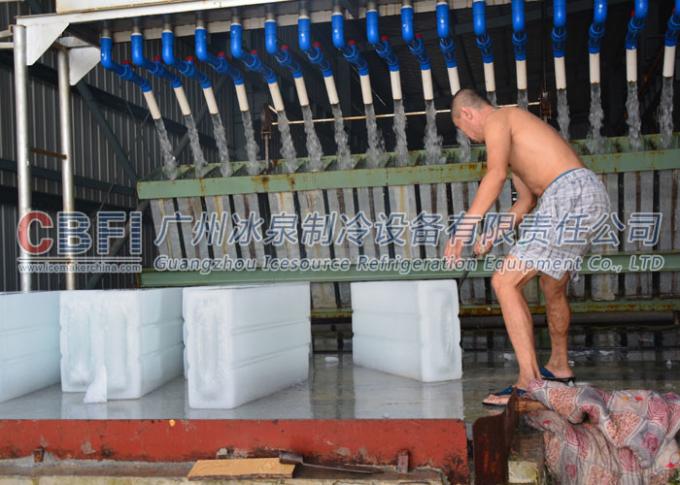

CBFI 20 ton block ice machine in South Sudan, 2015



1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 7

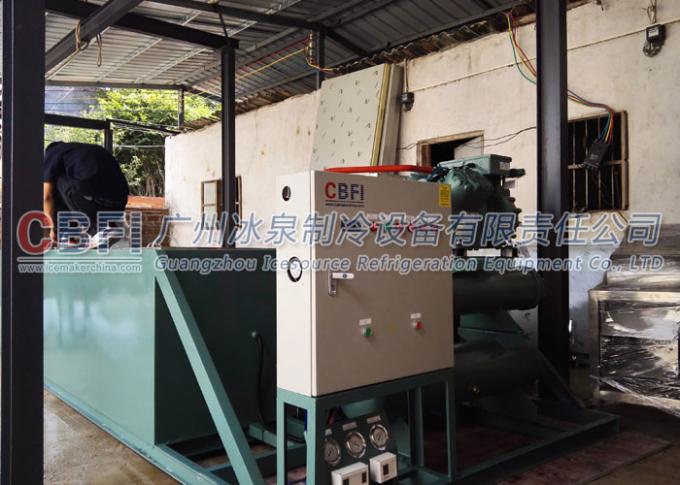

CBFI 20 ton block ice machine for Yemen client, 2016

1 ton , 2 ton , 5 ton , 10 ton Ice Block Machine with Brine Water Tank R404a Refrigerant 8





Tag:

Industrial Ice Block Making Machine,

Block Ice Maker,

Ice Block Making Machine
