Product Details:
|
| Condition: | New | Refrigerant: | R507, R404a |
|---|---|---|---|
| Compressor: | Germany / Taiwan Hanbell | Expansion Valves: | Denmark Danfoss |
| Italy Valves: | Italy Castal | Evaporator: | Stainless Steel 304 |
| Cooling Way: | Water Cooling | Capacity: | 10 Tons Per Day |
| Highlight: | Tube Ice Machine,Ice Tube Maker |
||

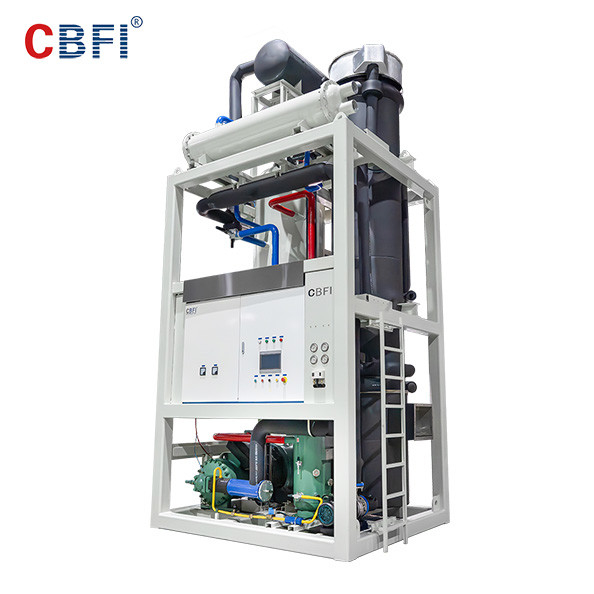

10 Ton Stainless Steel Tubular Ice Maker for Drinks Directly Cooling
Features:
1. High efficiency: will apply the HOT liquid Storage tank, make the machine at least make ice one more times every day.
2. Tube ice size : 22mm, 28mm, 35mm for option , the length of the tube ice can be designed as customer need
3. Specail compressor protecting device: CBFI self-developed oil balance system makes sure lack of oil to compressor when it running.
4. Long life span: The tube we will import the Japan 304 SUS Seamless steel pipe,which can at least use for 20years.
5. The ice making time and production is stable, that is suitable to control your business.
Product Model
|
Model
|
Daily output
(T/ 24 h)
|
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
TV10
|
1
|
4.1
|
0.25
|
1.1
|
1100*900*1780
|
900
|
|
|
TV20
|
2
|
7.44
|
0.25
|
1.5
|
1250*1000*1950
|
1200
|
|
|
TV30
|
3
|
10
|
0.55
|
1.5
|
1300*1100*2200
|
1500
|
|
|
TV50
|
5
|
19.9
|
0.55
|
2.5
|
1600*1400*2250
|
1800
|
|
|
Model
|
Daily output
(T/24 h) |
Compressor Power(kw)
|
Fan Power for Cooling Tower(kw)
|
Cooling Pump Power(kw)
|
Unit Size (L*W*H mm)
(Integrated Type) |
Unit N.W. (kg)
|
|
|
Main Host
|
Brine Tank
|
||||||
|
TV 100
|
10
|
27.9
|
1.5
|
4
|
1900*1600*1850
|
1200*1200*3390
|
3500
|
|
TV 100+
|
10
|
39.8
|
1.5
|
4
|
2400*1700*2000
|
1200*1200*3390
|
3700
|
|
TV 150
|
15
|
46.4
|
1.5
|
5
|
2700*2000*2200
|
1500*1200*4250
|
4250
|
|
TV 200
|
20
|
55.7
|
2.2
|
7.5
|
2800*2200*2500
|
1500*1200*4700
|
6500
|
|
TV 300
|
30
|
83.6
|
2.2
|
7.5
|
3100*2200*2500
|
1800*1500*5700
|
7200
|
|
TV 400
|
40
|
111.4
|
2.2
|
11
|
3900*2250*2500
|
2000*1500*6800
|
8300
|
|
TV 500
|
50
|
139.3
|
3.75
|
15
|
4500*2250*2500
|
2200*1800*7200
|
9500
|
Supporting equipment
1. Ice bin for ice packing the tube ice easily .
2. Cold room for storing ice and keep the ice in high quality, also you can have ice at any time when your client need the ice.
3. Bag sealer for ice bag sealing.
4. Digital scale for ice weighting. make sure each bags with the same kg.
Commercial Tube Ice Application
The tube ice widly use in the food cooling and drink shop , and the party .
Also in the resturant , hotel , surper market.There are large need of the ice every day .
1. The payment can be T/T, L/C, Western Union/ Money Gram and cash.
2. Deposit is 30%. Balance is 70%. When we get your deposit, we start to produce the machine. The balance should be paid before shipping.
3. The delivery time is about 40 days after the deposit.
4. We can also ship for you if you pay the freight to us.
Are you planning for tube ice business, any help feel free to contact us.
