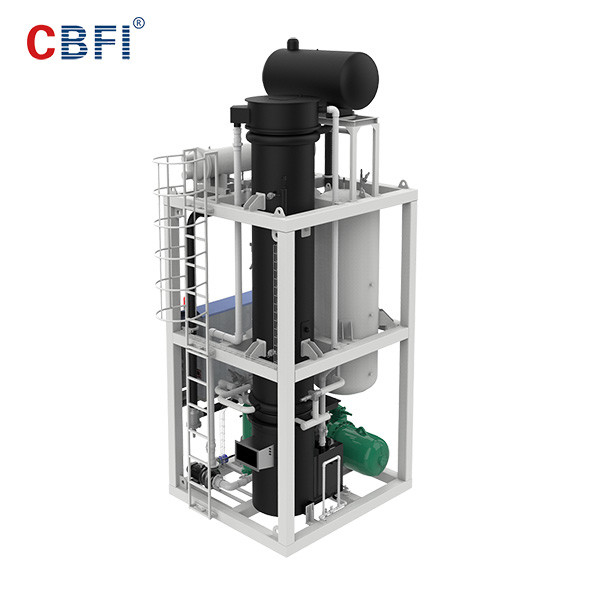

Edible Level 5 Ton Ice Tube Machine With Germany Compressor

Edible Level 5 Ton Ice Tube Machine With Germany Compressor
Edible Level 5 Ton Ice Tube Machine With Germany Compressor Edible Level 5 Ton Ice Tube Machine With Germany Compressor

Large Image :  Edible Level 5 Ton Ice Tube Machine With Germany Compressor

Product Details:
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV50
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
Contact Now

Edible Level 5 Ton Ice Tube Machine With Germany Compressor

Description
Compressor: Germany Compressor Tube Ice Diameter: 35mm, 28mm, 22mm
Evaporator: Stainless Steel 304 Seamless Pipe Cooling Way: Water Cooling
Daily Capacity: 5000kg/24h Control System: Touch Screen With English
PLC: Siemens System Origin: Guangzhou, China
Material: 304 Stainless Steel Refrigerant: R404A
High Light:

Tube Ice Machine

,

Ice Tube Maker

Germany compressor easy control edible level 5 ton tube ice machine



1. Crystal tube ice

Edible Level 5 Ton Ice Tube Machine With Germany Compressor 0

Edible Level 5 Ton Ice Tube Machine With Germany Compressor 1





2. CBFI tube ice machine pictures

Edible Level 5 Ton Ice Tube Machine With Germany Compressor 2



5 ton tube ice machine



Edible Level 5 Ton Ice Tube Machine With Germany Compressor 3

5 ton tube ice machine in our factory



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
 Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
 kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
 0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
 0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
 0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
 1.5
1600*1400*2250
1800

 TV100

    10.0
29.2
1.5
4
1.5
 1.5
1200*1200*3100

 2300*1550*1800
3500
TV150
15.0
49
2.2

5.5
1.5
 1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
 2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
 2.2
3000*2200*2500

 2200*1900*6200
7200


4. Application

tube-ice-machine-application

5. Tube Evaporator Features:
1.Adopting Stainless Steel 304 ensures totally clean tube ice.
2.The adoption of middle partition can avoid ice forming on the evaporator floor freezing and breaking down the ice cutter.
3.Using patent hydraulic expansion technique makes sure water freezing equally, which avoids ice dropping problem.

tube-ice-machine-304stainless-steel-evaporator





6. Customer cases

CBFI 30 ton tube ice machine in Indonesia

Edible Level 5 Ton Ice Tube Machine With Germany Compressor 6



CBFI 30 ton tube ice machines in Malaysia

Edible Level 5 Ton Ice Tube Machine With Germany Compressor 7
