Product Details:
|
Compressor: | Germany (or Adjust According To Your Requirement) | Cooling Way: | Water Cooled Or Air Cooled |
---|---|---|---|
Ice Size: | 22*22*22mm, 29*29*22mm Or 38*38*22mm | Evaporator: | Nickeled Cube Ice Mould |
Material: | 304 Stainless Steel For Completed Frame | Daily Capacity: | 1 Ton To 20 Tons Per Day |
Refrigerant: | R507, R404a, R507 | Electricity Components: | South Korea LG(or Adjust Depends On Your Requirement) |
Highlight: | Commercial Ice Cube Machine,Ice Cube Maker Machine |

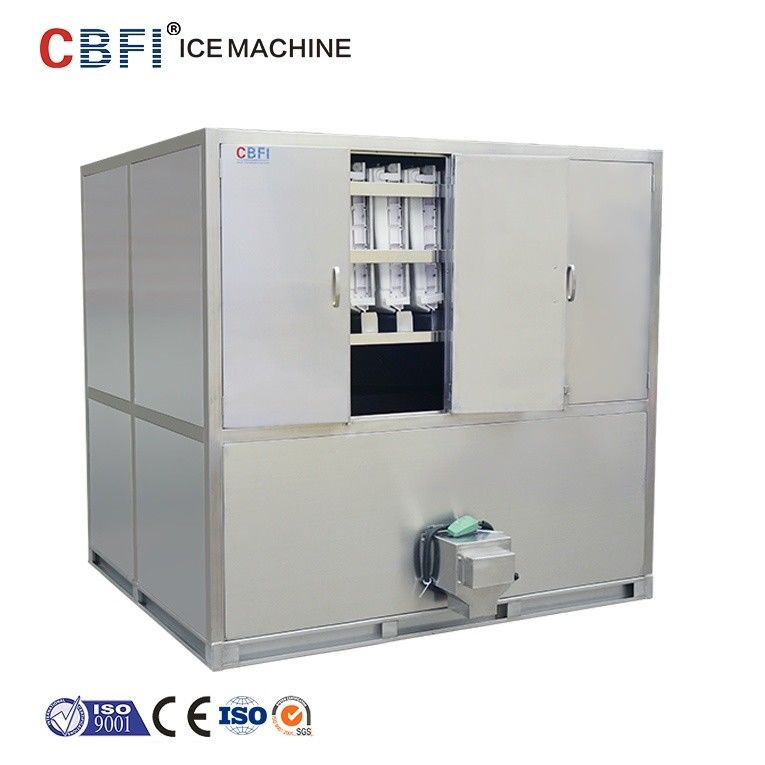

Stainless steel energy saving automatic 3 Tons Cube Ice Machine
2. Cube ice size for choose, 22*22*22,29*29*22 or 38*38*22mm.
3. CBFI 3 tons cube ice machine
4. Advantages of cube ice making machine:
Easy operation:
Using intelligent PLC system or just one cellphone to control the machine that become more convenience.
Integrated machine:
machine unit adopt 3D model, reasonable layout, integrated design, the structure is very compact .
5. Machine parameter
3 ton/24hours Industrial Cube Ice Making Machine Parameters
Working Conditions |
Refrigerant | R507/ R404a |
Cooling way | Water cooling / Air cooling | |
Power supply | 380v/50Hz/3phase , 380v/60Hz/3phase , 220v/50Hz/3phase, 220v/60Hz/3phase |
|
Ambient temp. | +32 ℃ | |
Supply water temp | +20 ℃ | |
Evaporating temp. | -12 ℃ | |
Condenser temp. | +40 ℃ | |
Relative humidity | 85 % | |
Noise | 55dB | |
Compressor | Brand Name | (Germany) |
Product Model | 4NES-14 | |
Power | 9.6KW | |
Refrigerating Capacity | 24KW | |
Cooling Tower (Water cooling) |
Brand Name | CBFI |
Size | Φ1170*1690 mm | |
Power of Cooling Water Pump | 1.5KW | |
Power of Cooling Fan | 0.56KW | |
Ice making water Circulating pump | Brand Name | Nanfang |
Power | 1.5 kw | |
Ice Outlet Motor | Brand Name | Nord |
Power | 0.75kw | |
Delivery time |
35 days after the receipt of deposi |
6. Customer cases
· In Afghanistan, Asia----20 Tons Ice Cube Machine
· In Dubai, Middle East----10 Tons Ice Cube Machine
· In Greece, Europe----5 Tons& 3 Tons Cube Ice Machine
· In Dubai, Middle East ----3 Tons Cube Ice Machine
· In Congo, Africa-----1 Tons Ice Cube Machine
