30 Ton Ice Tube Machine For Food Market with Stainless Steel 304 Evaporator

Basic Information
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV300
Minimum Order Quantity: 1 set
Price: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 45 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
Detail Information
Compressor: Germany Compressor Tube Ice Diameter: 35mm, 28mm, 22mm
Evaporator: Stainless Steel 304 Seamless Pipe Cooling Way: Water Cooling
Machine Weight: 7200kg Control System: Touch Screen With English
PLC: Siemens System Daily Production: 30 Tons
Material: 304 Stainless Steel Refrigerant: Ammonia R717
High Light:

Tube Ice Machine

,

Ice Tube Maker


Product Description

30 Ton Ice Tube Machine For Food Market with Stainless Steel 304 Evaporator

30 ton tube ice machine is very welcomed product in the TV series. Many large ice plants choose it because of the high cost performance. It is the largest freon refrigeration system tube ice machine you can find in the world. And larger capacity with ammonia refrigerant is also provided, contact us for more details. We have designed a whole bunch of equipments to work with the large machine to form a tube ice plant. There are water filter, ice drying line, ice storage with screw system, auto ice packing machine, and ice bag stacking machine.



Product Features

1.  Daily Production 30 ton 24 hrs

2.  Evaporator uses stainless steel & PU foam insulation, tunnels are insulated to save energy and good looking.

3.  Automatic laser welding to make the welding work nice and no leak, ensured the low fault rate.

4.  Unique ice harvesting way to make the process quick and low shock, more efficient and safer.

5.  Able to match the stainless steel conveyor and ice bin, and hand or automatic package system.

6.  Fully auto system ice plant solution provided.



1. Tube Ice Application

Human consumption

Drinks & coffee shop, bar, hotel, restaurant

Supermarket, stores, food market

Food Processing factory

Poultry processing factory

Chemical and concrete project

Hospital & Medical care

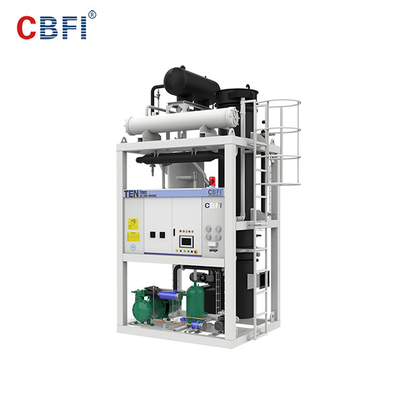

2.  CBFI tube ice machine picture

30 Ton Ice Tube Machine For Food Market with Stainless Steel 304 Evaporator 0

30 Ton Ice Tube Machine For Food Market with Stainless Steel 304 Evaporator 1



3.  Tube icee MachinAdvantage:

1)  Stainless 304 steel outer cylinder evaporator, improve the insulated performance

2)  Seamless Stainless 304 evaporator tube made in Japan

3)  Touch Screen Controller, operate the machine like your smart phone

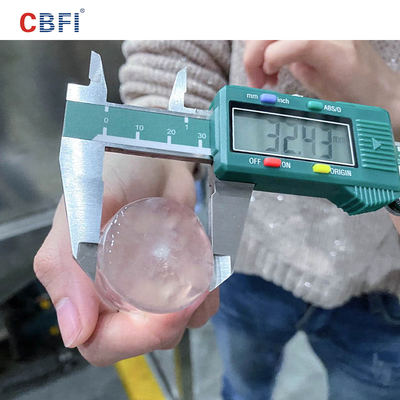

4)  Tube ice length uniform and smooth incision

5)  Transparent ice, hard and not easy melting

6)  Heat Exchanger: improve the gas evaporative efficiency and make compressor will not be impacted by liquid gas



30 Ton Ice Tube Machine For Food Market with Stainless Steel 304 Evaporator 2



4. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200








5. Company Introduction



Guangzhou Icesource Co,.Ltd was established in 2004, specialized in ice machine and cold room manufacture, including cube ice machine, tube ice machine, block ice machine, flake ice machine, plate ice machine, water chiller and cold room, product was export to Europe, North and South America, Asia, Middle East, Africa.

Icesource is located in Guangzhou city, branch company include Guangzhou Ice Spring Refrigeration Equipment Co. Ltd., Guangzhou Huibo Electrical Installation Engineering Co., Ltd, Icesource(Chengdu) Co,.Ltd



Inventor of large capacity Cube Ice Machine 3 ton per day

Build the first set large capacity 100 ton block ice machine by Freon system

Partners of 2008 Beijing Olympic Games Edible Ice Supplier

Partners of 2010 Shanghai EXPO Edible Ice Supplier

Build the biggest Edible Ice Plant in Dubai, UAE

Build the biggest Edible Ice Plant in Doha, Qatar

Build the biggest Edible Ice Plant in South Korea

30 Ton Ice Tube Machine For Food Market with Stainless Steel 304 Evaporator 3
