|PLC:||Germany Siemens||Compressor:||Germany / Germany Bock/ America Copeland|
|Expansion Valve:||Denmark Danfoss||Solenoid Valve:||Italy Castel|
|Refrigerant:||R22/R404a||Ice Shape:||Tube Ice/ Shell Ice|
|Ice Diameter:||22mm; 28mm; 35mm||Cooling System:||Air Cooled, And Water Cooled|
|Ice Length:||30mm To 50mm|

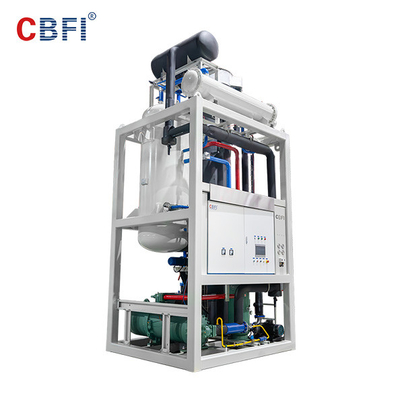

Tube Ice Machine,
Ice Tube Maker
High Output Tube Ice Machines For Fast Food Shops / Supermarkets/bars
1. Ice type: edible ice.
2. Ice Diameter: 22mm, 28mm, or 35mm, length of ice: 30mm to 50 mm.
3. Daily capacity: 1ton to 50tons.
4. Design: save space, high efficiency heat exchange, and energy saving, so it is widely favored by market.
1. It can be ate easily
2. It can be used to freeze drinks
3. Mix wines
4. Cool food stuffs
5. Make ice pastries and keep fresh
1. Perfect design: 3D simulation assembly, compact structure,easy to operate and maintain
2. healthy: all the metal of the ice-making machine that will touch with water are SUS304
3. Efficient performance: ice maker adopt PU insulation material, make the ice maker with best thermal performance.
4. Fully automatical: PLC system controls the whole ice making process.
Tube ice machine technical parameters:
|Item||Compressor||Water circulating pump||Ice cutter||Cooling tower||Water pump|
|Cooling capacity||Power||Power||Power||Fan Motor Power||Power|
|1 ton||17.8 KW||7.2 KW||0.37 KW||0.75 KW||0.18 KW||1.1 KW|
|2 tons||22.3 KW||7.9 KW||0.55 KW||0.75 KW||0.37 KW||1.5 KW|
|3 tons||30.1kw||10.6 kw||1.1 KW||0.75 kw||0.56 KW||1.5 KW|
|5 tons||60.2 kw||21 kW||1.5 KW||1.5 KW||0.75 kw||2.2 KW|
|10 tons||83.3 kW||29.2 kW||1.5 KW||1.5 KW||1.5 KW||4 kw|
|15 tons||139 kw||49 kW||2.2 KW||1.5 kw||1.5 kw||5.5 kw|
|20 tons||166.6 kw||58.5 kw||2.2 kw||2.2 kw||2.2 kw||5.5 kw|
|30 tons||249.9 kw||87.6 kw||2.2 kw||2.2 kw||2.2 kw||7.5 kw|
The above information is based on water cooled condenser.
Size of machine is the same with the size before installation.
It didn’t mention size of cooling tower, cooling tower usually install in the outside.
Machine running condition:
1. water temperature: 28℃,
2. evaporate temperature: -12℃,
3. condensing temperature: 40℃,
4. reference valve under 50Hz power supply.
Real production of machine will have a little change according to change of water
temperature and ambient temperature.
1. Standard wooden case.
2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe
3. Machine come into use, customer only need prepare power for the machine.
4. All required components for install the machine will be provided.
some questions and answers here:
1. Q: are you add refrigerant in the ice machine?
A: yes, the machine is full of refrigerant, once with water and electric it can work. yes, ice machine leaves factory with carefully examination after it was produced for 3 to 5 days. And when we install them at customer’s factory, we retest the ice machines.
2. Q: can you load ice machine into container?
A: we have containerized ice block machine. Our export ice machine is designed based on the standard of container, it is easily to load. The 25kg ice of 10tons can load in container of 40 feet. for domestic ice machine of over 12 tons per day, we design based on the standard of truck, which can easily drive into your factory.
3. Q: all your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: our ice machine and power,voltage can suitable for your country, please make the power requirement be clear in your order.
