Product Details:
|
| Refrigerant: | R507 Or R404a | Ice Production Capacity: | 1000kg Per 24 Hours |
|---|---|---|---|
| Ice Diameter: | 22 &28 &35mm | Machine Size: | 1100*900*1780mm |
| Evaporator: | Stainless Steel SUS304 | Compressor: | Germany |
| Ice Cutter: | Different Length About 3~5cm. | ||
| High Light: | Tube Ice Machine,Ice Tube Maker |
||

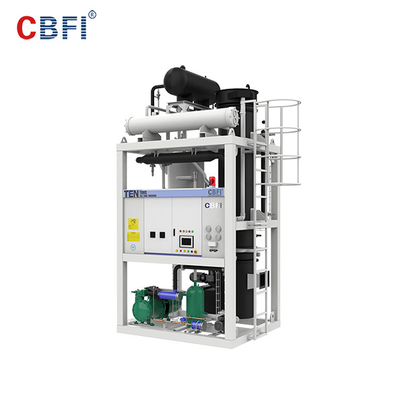

CBFI 1 ton Ice Production Capersity Per Day Single-phaseTube Ice Making Machine
1.Evaporator: The evaporator is adopt stainless steel and with special heat treatment,the ice machine has better thermal performance.
2.Healthy: All the metal of the ice machine that touch with water are 304 stainless steel, impurities will be discharged through the water circulating bin.
3.Certification: As for the tube ice machine,we got CE/ISO9001/ISO10004 certification.
| Name | 1 ton/24h Tube Ice Machine |
| Model | TV 10 |
| Daily Capacity | 1000kg |
| Machine Dimension | 1100*900*1780mm |
| Weight | 900kg |

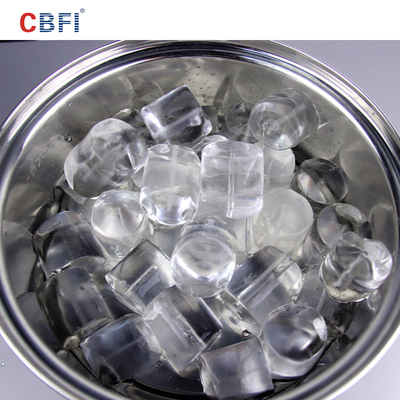

Ice Output Information
| Shape | Tube |
| Ice Diameter | 22mm,28mm,35mm |
| Ice output shift per day | 72 |
| Ice Density | 500kg~550kg |
| Tube Mould Material | Seamless Stainless Steel 304 Tube (Made In Japan) |
Ice Application:
Tube ice machine features
1. Adopt oil balance equipment and oil reservoir. It is to keep enough oil to come back to compressor and lubricate it .
2. CBFI Evaporator adopts PU insulation that is formed with stainless steel cover together. It can improve refrigeration capacity and save power, and also the material can keep ice clean.
3. Efficient performance: ice maker adopt special alloy material and with special heat treatment, make the ice maker with best thermal performance.
4. PlC control system can enable the machine produce ice, clean the machine, and solve problems automatically.
| Item | Compressor | Water circulating pump | Ice cutter | Cooling tower | Water pump | |
| Cooling capacity | Power | Power | Power | Fan Motor Power | Power | |
| 1 ton | 17.8 KW | 4.1 KW | 0.37 KW | 0.75 KW | 0.18 KW | 1.1 KW |
| 2 tons | 22.3 KW | 7.9 KW | 0.55 KW | 0.75 KW | 0.37 KW | 1.5 KW |
| 3 tons | 30.1kw | 10.6 kw | 1.1 KW | 0.75 kw | 0.56 KW | 1.5 KW |
| 5 tons | 60.2 kw | 21 kW | 1.5 KW | 1.5 KW | 0.75 kw | 2.2 KW |
| 10 tons | 83.3 kW | 29.2 kW | 1.5 KW | 1.5 KW | 1.5 KW | 4 kw |
| 15 tons | 139 kw | 49 kW | 2.2 KW | 1.5 kw | 1.5 kw | 5.5 kw |
| 20 tons | 166.6 kw | 58.5 kw | 2.2 kw | 2.2 kw | 2.2 kw | 5.5 kw |
| 30 tons | 249.9 kw | 87.6 kw | 2.2 kw | 2.2 kw | 2.2 kw | 7.5 kw |
Machine operating condition
1. water temperature: 28Centi degree,
2. evaporate temperature:-12Centi degree,
3. condensing temperature: 40Centi degree,
4. reference valve under 50Hz power supply.
Real production of machine will change a little according to change of water
temperature and ambient temperature.
Payment Terms:
T/T (Telegraphic transfer via bank),30% of total value is in advance；70% should be paid before shipping. (Price may different for other payment term)
1. Warranty period is12 months since the delivery date. If any quality problem under the warranty, we will sent you free spare parts or sent technician to help you
2. We can provide you with the design drawing.
3. Manul book and video will be provided to guide you to install the machine, and also the on line service provided by our technician
4. Engineer is available to your local place to install the machine. While, the visa, round-trip ticket, accomodation is at your cost, and installation charge 100 USD/day.
