Product Details:
|
| Tube Ice Machine Capacity: | 3 Tons | Compressor: | Germany / Germany Bock/ America Copeland |
|---|---|---|---|
| Expansion Valve: | Denmark Danfoss | Solenoid Valve: | Italy Castel |
| Refrigerant: | R507 | Ice Shape: | Tube Ice |
| Ice Outside Diameter: | 22mm/28mm/35mm | Condending Way: | Air Cooled Or Water Cooled |
| Machine Weight: | 1500KG | Electricity Power: | 380v 50hz 3p( It Can Be Customized For You) |
| Highlight: | Tube Ice Machine,Ice Tube Maker |
||

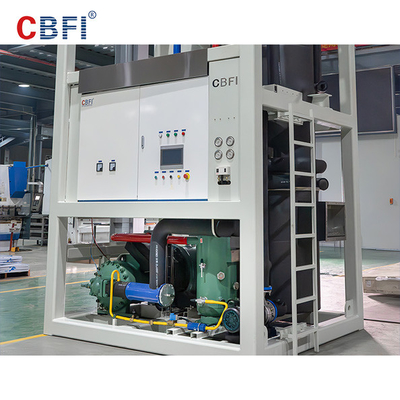

3 Tons Saving Power Tubular Ice Maker For Fast Food Shops / Bars / Restauants
Basic information:
| Model | TV 30 |
| Size | 1300x1100x2200 mm |
| Daily Capacity | 3000kg |
| Weight | 1500kg |
| Ice Shape | tube |
| Ice Size | 22mm, 28mm, 35mm |
| Ice Length | 30~45 mm |
| Ice density | 500~550kg/m3 |
Application:
Cube ice is popular in bars, cold drink stores, restaurants, fast food stores , etc. It is put into the drink like wine, juice and milk tea, which can make the drink more tasty and let you feel cool especially in summer.
Features:
1. Daily Production 3 ton
2. 3D designed to ensure the container transportation. Easy for installation & maintaining
3. All materials have contact with ice we use food grade SUS304 stainless steel to ensure the safety of our ice.
4. PLC intelligent controlled, full automatic production, need no human operation.
5. Automatic laser welding to make the welding work nice and no leak, ensured the low fault rate.
6. Special water system design to make ice good and evenly thickness, clear and pure
7. Able to match the stainless steel conveyor and ice bin, and hand or automatic package system.
8. 3 ton machine is able to make to air cooled machine, which is suitable for areas lack of water resource.
Tube ice machine technical parameters:
| Item | Compressor | Water circulating pump | Ice cutter | Cooling tower | Water pump | |
| Cooling capacity | Power | Power | Power | Fan Motor Power | Power | |
| 1 ton | 17.8 KW | 7.2 KW | 0.37 KW | 0.75 KW | 0.18 KW | 1.1 KW |
| 2 tons | 22.3 KW | 7.9 KW | 0.55 KW | 0.75 KW | 0.37 KW | 1.5 KW |
| 3 tons | 30.1kw | 10.6 kw | 1.1 KW | 0.75 kw | 0.56 KW | 1.5 KW |
| 5 tons | 60.2 kw | 21 kW | 1.5 KW | 1.5 KW | 0.75 kw | 2.2 KW |
| 10 tons | 83.3 kW | 29.2 kW | 1.5 KW | 1.5 KW | 1.5 KW | 4 kw |
| 15 tons | 139 kw | 49 kW | 2.2 KW | 1.5 kw | 1.5 kw | 5.5 kw |
| 20 tons | 166.6 kw | 58.5 kw | 2.2 kw | 2.2 kw | 2.2 kw | 5.5 kw |
| 30 tons | 249.9 kw | 87.6 kw | 2.2 kw | 2.2 kw | 2.2 kw | 7.5 kw |
Machine running condition:
1. water temperature: 28℃,
2. evaporate temperature: -12℃,
3. condensing temperature: 40℃,
4. power supply: 380v 50hz 3p.
Note: Actual ice production may be a little different because of the actual ambient temperature and water temperature
Operation Tube Ice Machine
1. We will pack the machine in standard wooden case.
2. We can ship the machine to your port , and the machine will be delivered after customers pay all money
some questions and answers here:
1. Q: Will you add refrigerant in the ice machine?
A: yes, before sent to your, the machine will be filled with refrigerant. And you just need to connect the machine to the electricity and water, it can work.
2. Q: Can you load ice machine into container?
A: We certainly deliver the machines by containers like 20 feet and 40 feet containers. And some customers like design the machine into the container like container cube ice machine, container tube ice machine, container block ice machine and so on.
3. Q: All your ice machine is based on 380V 50HZ power requirement? Do you have the right power requirement for abord? Such as 440V 60HZ or 220V three phase that suitable for America?
A: We can design the power supply to meet your local electricity power.
