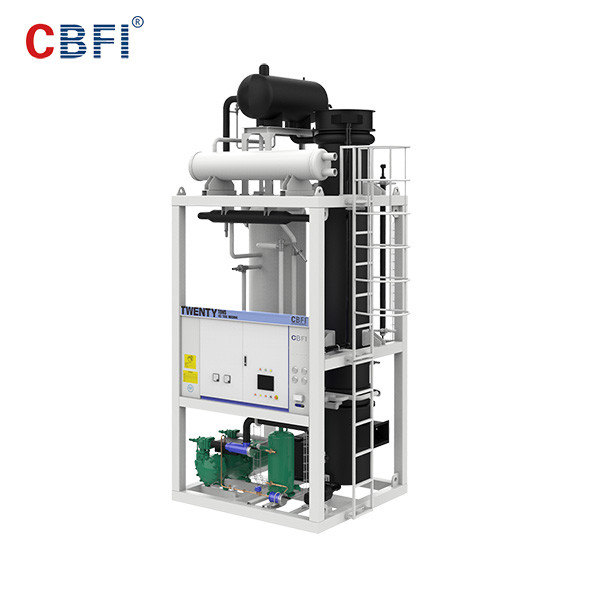

Freon System Edible Ice Tube Machine 12 Months Warranty 380v 50hz 3p

Freon System Edible Ice Tube Machine 12 Months Warranty 380v 50hz 3p
Freon System Edible Ice Tube Machine 12 Months Warranty 380v 50hz 3p

Large Image :  Freon System Edible Ice Tube Machine 12 Months Warranty 380v 50hz 3p

Product Details:
Place of Origin: Guangzhou, China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV10-TV300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD10 - USD999999
Packaging Details: Standard wooden case
Delivery Time: 30 work days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 60-70 set per month

Freon System Edible Ice Tube Machine 12 Months Warranty 380v 50hz 3p

Description
Refrigeration System: Freon Apllication: Cool Drinks In Bars, Hotels, Restaurants, Etc.
Electrical Components: LG Refrigerant: Freon R507/R404a
Warranty: 12 Months Standard Power Supply: 380v 50hz 3p
Tube Ice Diameter: 22 Mm, 28 Mm, 35 Mm Tube Ice Length: 30 Mm To 50 Mm
Material: Stainless Steel Service: Offer Design Drawing Of Ice Factory, Manual Book, Installation Video
High Light:

Tube Ice Machine

,

Ice Tube Maker

Freon System 10 Ton Daily Ice Production Capacity Edible Ice Tube Machine



Machine Parameters
Name 10 Ton/24 hrs Tube Ice Machine
Model TV100
Daliy Capacity 10,000 kg
Machine Demension

2300*1550*1800mm (Machine unit)

1200*1200*3100mm(Evaporator)

Weight 3500 kg

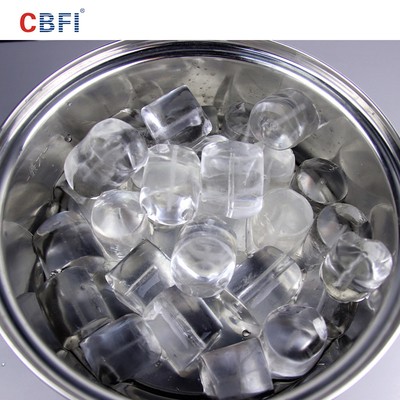

Ice information
Ice shape Tube Ice

Ice diameter

(mm)

Freezing time

(min)

Ice output shift per day

Weight of per hour

(kg)

22/28/35 16 ~ 18 72 417
Ice Length 30~45 mm
Ice Density 500~550kg/m3
Tube Mould Material

Seamless Stainless Steel 304 Tube

(Made In Japan)





Machine running condition


The standard water temperature is 28℃, the standard evaporate temperature: -12℃, thestandard condensing temperature is 40℃, normally the machine can produce 10 tons tube ice per day, but the actual ic eproduction will have a little different based on the specific water temperature and ambient temperature.



Applications

  1. Who will need tube ice machine:
  • Customers need to open tube ice factory
  • Customers who are tube ice machine dealer

      2. Who need tube ice

  • Bars, hotels, restaurants, cold drink stores, supermaket, etc.

Customized service



  1. We will produce the machine based on your need, like the material, power supply, compressor brand, machine size, etc.
  2. We can design ice factroy drawing for you to show you the arrangment of all equipment.
  3. We can provide a whole complete set of tube ice machine equipment for you, including water chiller, water treatment, water tank, tube ice machine, cold room, ice packing machine, ice crusher and so on.
  4. We will offer you manual book and video to help you install the machine, and if you need, technicians can go to your factory to install for you.
  5. We offer 12 months warranty, wintin the warranty free parts and techicians are available for you.



Other



1. The payment ways are T/T,L/C,Western Union, Money Gram and in Cash.
2. The deposit is 30%, after we receive your deposit, we will start to produce the machine for you. The balance 70% should be paid before shipping.
3. The delivery time normally is 30 days after receiving the deposit.
4. If necessary, we will arrange the shipping for you.


Company Profile


Gunagzhou Icesource CO., Ltd. (CBFI) is located in beautiful Guanzghou city, whose commerical business is developed, especially export business.

CBFI has high-efficient and expertise R&D team and proffesional techinical personnel, we own 1 invention patent and 12 practical patents, rated as Guangdong High-tech Enterprise. We have more than 15 years experience, selling tube ice machines to more than 130 countries.
