|Product Name:||2 Ton Tube Ice Maker Machine||Brand Name:||CBFI|
|Ice Shape:||Tube,hollow Cylindrical||Daily Production Cpacity:||2000kg|
|Dimension:||1400*1000*1950mm||Machine Weight:||1200 Kg|
|Refrigerant:||R22,R404a,R507||Power Supply:||380v 50hz 3p(can Be Customized Based On Your Local Power Supply)|
|Cooling Way:||Water Cooling||Warranty:||12 Months|
Tube Ice Machine,
Ice Tube Maker

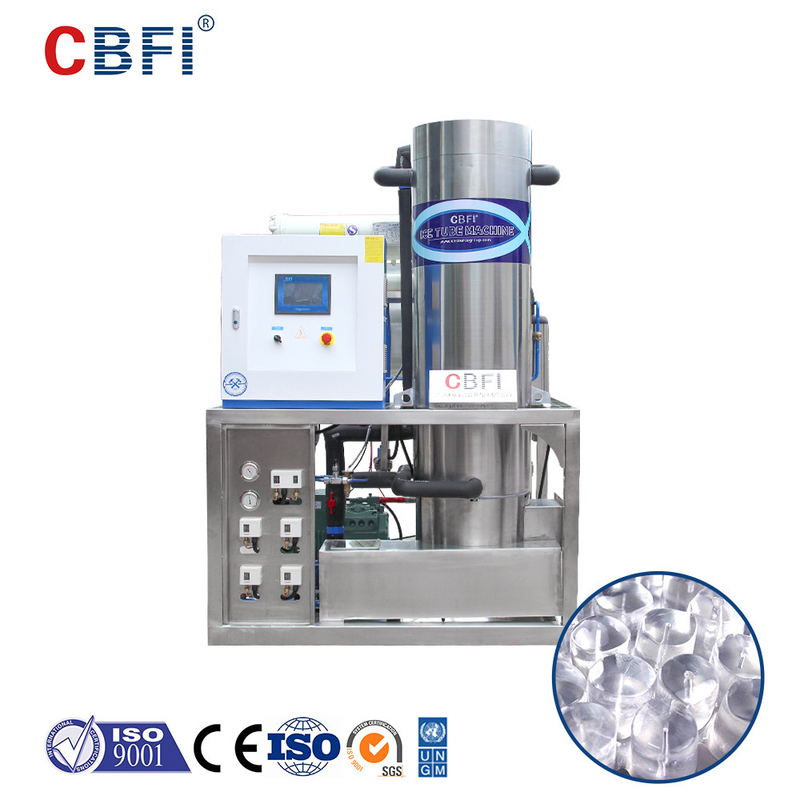

2 ton Purified Safe Bacteria-free tube ice maker machine
2018 China Manufacturing
|Model||Dimension||Daily Production Capacity||Ice Information||Compressor||Condensing Way||Cooling Tower|
|Ice Diameter(mm)||Freezing Time||Brand||Power||Cooling Capacity|
|TV20||1400*1000*1950mm||2000kg||22/28/35||20~22||7.9 kw||22.3 kw||Water Cooling||0.25kw|
Tube ice Machine:
1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. The use of stainless steel SUS304, accords with the health and safety requirements.
5. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
6. Adopt the highest quality spare parts of international brands, such as , Danfoss, Siemens, etc.
Several dimensions for your choices. Outside diameters can be 22mm, 28mm, 38mm; inside diameter can be 5~10mm. Length is 25~42mm.
Tube shape, hollow cylindrical ice;
Hard and thick, has longer melting time;
100% transparent, purified, bacteria-free, reaching food grade;
Tube ice is usually put into drinks, making drinks tasty and cool.
A Whole Set of Equipment
250L RO water filter: rurify water to make ice reach food satndard
250L Water Tank: store purified water
Water Chiller: precool ice making water to improve refrigeration efficiency
Ice packing equipment: pack ice into bags
10m³ ice storage cold room: store tube ice in low temperature
Why Choose CBFI
1. Plan the ice factory project for you for free
2. Offer you specific and detailed design drawing
3. Offer you detailed and professional manual book, videos and pictures to show you how to install and operate the machine
4. Send technicians to your factory to install for you as long as you need
