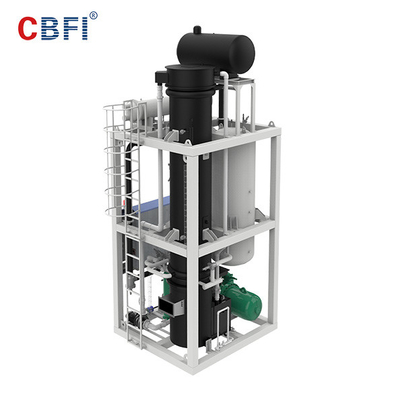

Large Capacity 1~30 Tons Per Day Ice Tube Machine With Stainless Steel Evaporator

Basic Information
Place of Origin: China
Brand Name: CBFI
Certification: CE, ISO
Model Number: TV300
Minimum Order Quantity: 1 set
Price: USD 10000~100000 per set
Packaging Details: International standard wooden box
Delivery Time: 15 days within the balance payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100 sets per month
Detail Information
Power Supply: 380V/3P/50Hz Daily Capacity: 1~30 Tons
Ice Size: 22mm,28mm,35mm Ice Shape: Cylinder Tubes
Material: SUS304 Staineless Steel Refrigerant: R404a Or R22
High Light:

Tube Ice Maker

,

Ice Tube Maker


Product Description

Large capacity 1~30 tons per day tube ice machine with stainless steel evaporator



Large Capacity 1~30 tons Tube Ice Machine



1. Tube ice introduction:

♦ Hollow cylinder ice shape. Clean, transparent, sanitary, it can be directly eaten, for human consumption.

♦ Custom-made Ice Size: Normally to be 28mm*35mm or 34mm*45mm (External diameter*Length)

♦ Small inner hole: Only 5-10mm, can be adjust.

♦ Widely Application: popular for cool drinks, bars, coffee shop, restaurant and so on.



Large Capacity 1~30 Tons Per Day Ice Tube Machine With Stainless Steel Evaporator 0



Different sizes tube ice evaporator, we uses Japan imported stainless steel tubes to ensure the machine stability and safety.



Tube ice is crystal and transparent with long storage period. It isn't likely to melt in a short time,good air permeability. It can be directly eaten or used to freeze drinks, mix wines, cool foodstuffs, make ice pastries and keep fresh, ect.



Commercial Ice Tube Machine Features:



1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.
4. The use of stainless steel SUS304, accords with the health and safety requirements.
5. The use of air pressure control excludes the risk of rupture of the evaporator tube and the tube ice diameter can be adjusted according to customers' needs.
6. Adopt the highest quality spare parts of international brands, such as Bitzer, Danfoss, Siemens, etc.

TV300

Specifications For Tube Ice Machine:
Working Conditions Power Supply 380V/50Hz/3P / 220V/60Hz/3P / 460V/60Hz/3P
Refrigerant R22/R404A
Cooling Way Water Cooling/Air Cooling
Max. Ambient Temp. +45℃
Supply Water Temp. +23℃ to 18 ℃
Condenser Temp. +40℃

TV300

Model TV10 TV20 TV30 TV50
Ice Making Capacity   (Ton/24h) 1 2 3 5
Rated Power  (KW) 4.28 7.77 12.33 21
Circulating Water Pump Power  (KW) 0.55 0.55 1.1 1.5
Cooling Water Pump Capacity  (KW) 1.1 1.5 1.5 2.2
Cooling Fan Capacity  (KW) 0.18 0.37 0.56 0.75
Ice Cutter Motor  (KW) 0.75 0.75 0.75 1.5
Dimension(L*W*H)  (cm) 110*90*176 125*100*195 140*110*220 160*140*225
Weight Of Machine  (KG) 900 1200 1500 1800
Model TV100 TV150 TV200 TV300
Ice Making Capacity   (Ton/24h) 10 15 20 30
Rated Power  (KW) 29.2 49 58.5 87.6
Circulating Water Pump Power  (KW) 1.5 2.2 1.5 2.2
Cooling Water Pump Capacity  (KW) 4 5.5 5.5 15
Cooling Fan Capacity  (KW) 1.5 1.5 2.2 2.2
Ice Cutter Motor  (KW) 1.5 1.5 2.2 2.2
Dimension(L*W*H)  (cm) 120*120*310 150*120*450 160*130*470 300*220*250
120*120*310 270*195*225 310*220*225 220*190*620
Weight Of Machine  (KG) 3500 4250 6500 7200
