Custom Size 120T Ice Block Maker For Aquatic Products Preservation

Basic Information
Place of Origin: Guangzhou city , China
Brand Name: CBFI
Certification: CE / ISO/SG/UN
Model Number: BBI10 to BBI1000
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1. Standard wooden case for packing main frame of block ice machine. Containerized design no need packing. 2. Machine installed completely and strictly tested in our factory before shipping. 3. Completely machine:ice machine, cooling tower, water pumps
Delivery Time: 30 working days after received your deposit
Payment Terms: T/T or western Union or moneygram
Supply Ability: 30 sets per month
Detail Information
Ice Size: Customized Daily Output: 9,18,20 To 100 120 Blocks Of Ice Per Day
Compressor: Germany Bitzer / Bock; Germany Bizter; America Copeland Warranty: 12 Months
Refrigerant:: R22 / R404a Ice Shape: Block Ice
Ice Application: Ice Factories At Ports And Wharves, Food Processing, Aquatic Products Preservation And Cooling Daily Capacity: 1-100tons
High Light:

120T Ice Block Maker

,

80mm Thickness Polyurethane Ice Block Maker


Product Description

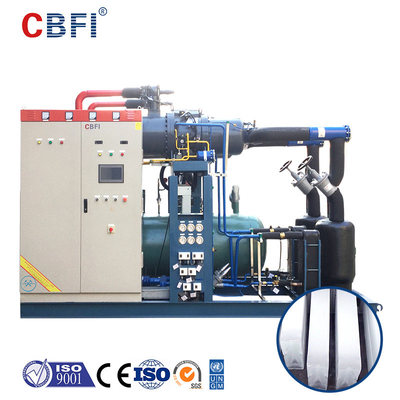

Custom Size 120T Ice Block Maker For Aquatic Products Preservation 0


Customized Size 9,20,100 Big Block Ice Maker For Industrial Cooling


Product Features

● Daily production: 1-100tons per day.
Block Ice Size: Customized
● CE approved product
● Coil pipe evaporator is our invention patent, it has a better evaporating effect with longer lifespan.
● High power water agitator is used to replace the common water pump. The block ice machine is energy saving. Ice making power consumption had declined from 110kW·h to 74kW·h/ton.
● Agitator makes the brine flowing faster, so that shorten the ice frozen time and improve the refrigeration effect of the whole machine. And agitator is much harder to be broken than water pump.
● Ice making tank adopts 80mm thickness polyurethane insulation material. It has good effect in heat insulation.

brine type block ice machine.pdf
Block Ice Application
Block ice is generally used in industrial cooling, long-distance fishing, vegetable distribution and preservation, seafood preservation and other areas.





BBI Model Block Ice Machine Parameters
Name Unit Parameter



Bitzer Compressor Parameter

Model 4GE-23
Cooling Capacity(kW) 33.9
Power(kW) 14.05


Condenser

Model WN-20
Heat Exchange(kW) 74.2
Condensing Temperature Degree Celsius(℃) 38
Evaporating Temperature Degree Celsius(℃) -18
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant   R22
Voltage V/P/HZ 380/3/50
Agitator Power(kW) 2.2


Cooling Tower

Model LX-30
Power(kW) 0.55


Cooling Pump

Model GD65-19
Power 2.2
SS304 Ice Mold Dimension L*W*H(mm) Customized
Machine Dimension L*W*H(mm) Customized
Remarks Crane is not included.


Custom Size 120T Ice Block Maker For Aquatic Products Preservation 1
Custom Size 120T Ice Block Maker For Aquatic Products Preservation 2

FAQ:
Q: How often does the ice block machine add salt?
A: The salt water concentration is tested every 2 weeks (22-25 Baume degrees). When the concentration is lower than the standard concentration, salt needs to be added, because ice film will take away a part of the salt water. Generally, add salt once every 3 months.
Q: The ice block machine for sale tests the pH once a month
A: PH value between 7-8
