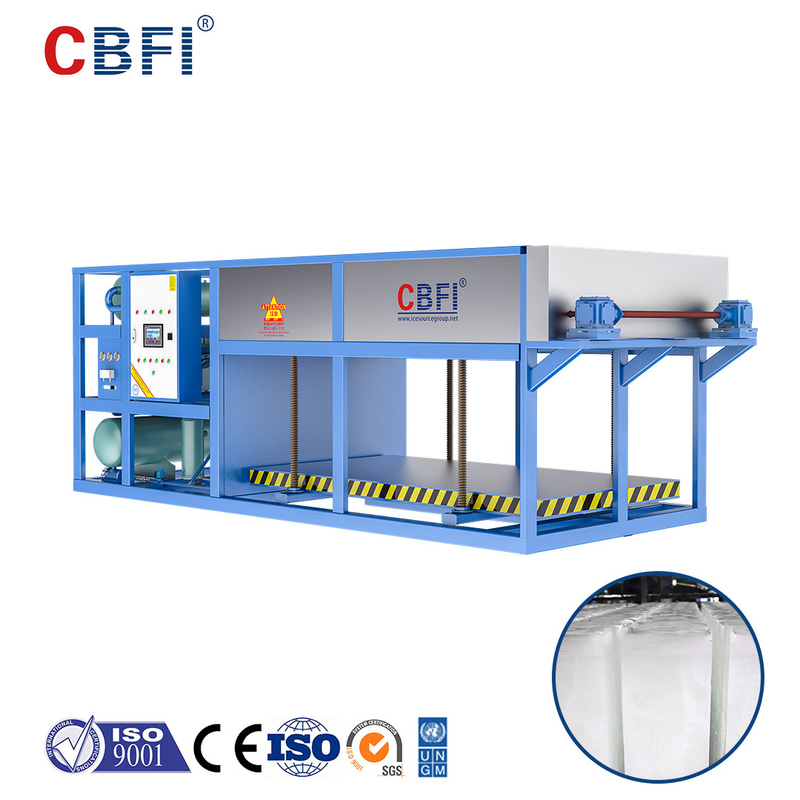

Commercial 5 Tons Direct Refrigeration Ice Block Machine

Basic Information
Place of Origin: Guangzhou city , China
Brand Name: CBFI
Certification: CE / ISO/SG/UN
Model Number: ABI50
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: 1. Standard wooden case for packing main frame of block ice machine. Containerized design no need packing. 2. Machine installed completely and strictly tested in our factory before shipping. 3. Completely machine:ice machine, cooling tower, water pumps
Delivery Time: 30 working days after received your deposit
Payment Terms: T/T or western Union or moneygram
Supply Ability: 30 sets per month
Detail Information
Ice Block Machine Types: Direct Refrigeration Block Ice Machine Use: Commercial Use
Application: Port, Dock,refresh For Aquatic Products, Cooling Ice Size: Customized
Compressor: Germany Bitzer / Bock; Germany Bizter; America Copeland Refrigerant:: R22 / R404a
Daily Capacity: 1-30Tons Warranty: 12 Months
High Light:

5 Tons Ice Block Machine

,

20.5KW Commercial Ice Block Machine


Product Description





Commercial 5 Tons Direct Refrigeration Block Ice Machine



Main Features



● Daily Capacity: 5 tons 24 hrs

● Machine power supply: 3 phase industrial power supply

● PLC controlling system, very easy to use.

● Automatic operation to save your labor work

● Compact design to save your area need.

● The direct cooling block ice machine is easy to operate, easy to transport, and low in cost. Because it is direct refrigeration, ice is hygienic, clean and edible. Compared to other types of products, there is no need to use brine, no ice contamination problems.

● The direct cooling block ice machine uses fresh water to make ice, and the water is directly frozen into ice. You don't need to add other items, only water and electricity are needed to make ice.





automatic type block ice machine.pdf



Commercial 5 Tons Direct Refrigeration Block Ice Machine Application



product-CBFI-img



Ice factory of the ports and docks, refresh for aquatic products, cooling, distance transportation,fishery, food preservation, special areas of cooling, ice sculpture.





CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-1
CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-2
CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-3





Product Parameter





ABI50 5000kg Direct cooling ice block machine parameters
Item Unit Parameters





Bitzer Compressor

Spec 6HE-28
Refrigerating capacity(kw) 61.8
Power(kw) 20.5
Condenser Heat exchange capacity(kw) 95.2
Condensing Temperature Temperature(℃) 38
Evaporating Temperatue Temperature(℃) -10
Ambient Temperature Temperature(℃) 32
Water Supply Temperature Temperature(℃) 20
Refrigerant   R22
Power Supply V/P/HZ 380/3/50
Lifting Motor Power(kw) 5.5
Cooling Tower Power(kw) 0.55
Circulating Pump Power(kw) 0.75
Cooling Pump Power(kw) 2.2
30kg Block Ice Size L*W*H(mm) 250*150*880
40kg Block Ice Size L*W*H(mm) 340*150*880
50kg Block Ice Size L*W*H(mm) 420*150*880
Water Cooling Machine Size L*W*H(mm) 11000*2250*2500







Product Details

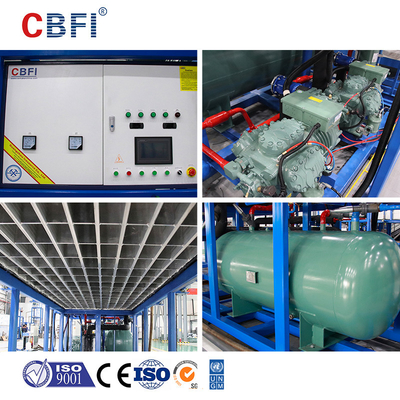

CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-4

Direct Ice Forming Method

The direct cooling ice block machine ice mold material is aluminum plate, the main machine is made of stainless steel, which has the characteristics of anti-rust and anti-corrosion. Equipped with an electric lift to speed up the collection of ice.



++





Auto Control System

The machine is using Siemens PLC and touch screen controller for system control. After very short learning, operator may get to handle the whole machine.



++
CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-5





CBFI-Direct Cooling Block Ice Machine Ice Block Making Machine Turkey-6

Bitzer Compressor

Germany Bitzer is a world famous brand, its after-sales service centers are all over the world. And the quality is on the top of the area. We have more than 15 years of experience using Bitzer compressor in our ice mchines.
