Product Details:
|
Cooling System: | Air Cooled, Water Cooled, Evaporative Cooling | PLC: | Germany Brand Siemense. Schneider |
---|---|---|---|
Capacity: | 30 Tons | Flake Ice Thickness: | 1 Mm To 2 Mm |
Ice Temperature: | -8℃ | Expansion Valve: | Denmark Brand Danfoss |
Power Supply: | 380V/50HZ/3P, 220V/60HZ/3P...380v/60hz/3p | Refrigerant: | R404a/R507 |
High Light: | 30000kg Flake Ice Making Machine,Rake Storage Flake Ice Making Machine,2mm Thickness Flake Ice Making Machine |

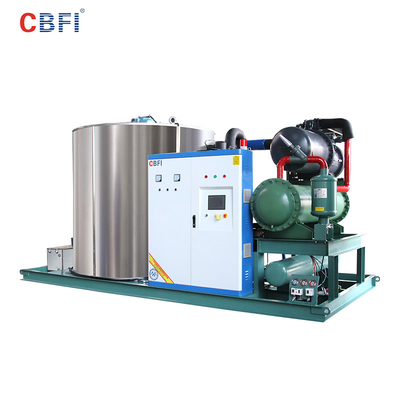

30 Tons Large Flake Ice Machine For Fishery Concrete With Rake Storage System
BF30000, a 30-ton 24-hour ice slicer, is very suitable for fresh fish cooling. Our machines are very popular in aquatic products processing plants. The ice is soft and thin, and does not hurt the skin.
Ice Flake Machine Main Features
1. Daily production capacity: 30 tons for 24 hours
2. Container system is available and movable. And a pre-installed ice machine.
3. Machine power supply: 3-phase industrial power supply
4, PLC control system, easy to use.
5. It can be used in the design of making ice from sea water in water scarce areas.
6. The rake type system, can realize automatic production.
7. Low temperature: ice temperature -8 degrees
8. Sheet ice shape with excellent cooling performance
9. No sharp edges, no damage to cooling products
10. 1~2mm thick, no need to crush, ready to use
Ice Flake Making Machine Product Details
Ice rake system
For high volume ice plants, we can provide you with ice rake cold storage to install an automatic ice plant. The system allows you to reduce labor costs and improve work efficiency.
Automatic control system
We use Siemens PLC and touch screen control system. The system is easy to use and has a high degree of automation.
Pressure control system
We use Danfoss pressure protectors and gauges to build the pressure control system. The excellent quality of the components ensures the stability of the pressure in the system.
Flake Ice Machine Parameter
Model
|
Ice Making Capacity
|
Capacity of Refrigeration
|
Machine Dimension
|
Weight of Machine
|
No.
|
Ton / 24 h
|
kw
|
L*W*H(mm)
|
KG
|
BF 1000
|
1
|
8.85
|
1300*960*1200
|
210
|
BF 2000
|
2
|
17.84
|
1500*1200*1350
|
360
|
BF 3000
|
3
|
24.15
|
1800*1250*1400
|
1000
|
BF 5000
|
5
|
35.1
|
2100*1250*1500
|
1100
|
BF 6000
|
6
|
45.85
|
2500*2040*2200
|
1100
|
BF 8000
|
8
|
52.7
|
2100*1250*1500
|
1300
|
BF 10000
|
10
|
76.1
|
2300*1750*1740
|
1500
|
BF 15000
|
15
|
110.9
|
3200*2100*2000
|
3200
|
BF 20000
|
20
|
151
|
3400*2200*2560
|
4200
|
BF 30000
|
30
|
180
|
3800*2300*2560
|
5000
|
BF 35000
|
35
|
214.2
|
4500*2300*2800
|
6000
|
BF 40000
|
40
|
226.1
|
7800*2100*3000
|
7500
|
BF 50000
|
50
|
268.1
|
5000*2300*3000
|
10000
|
BF 60000
|
60
|
278.4
|
5500*2300*3200
|
12000
|
Specifications For Flake Ice Machine
|
||||
Working Conditions
|
Power Supply
|
380 V/ 50 Hz /3P, 220V/ 60Hz/3P , 460V/60Hz/3P
|
||
Refrigerant
|
R507/R404A
|
|||
Cooling Way
|
Water Cooling/Air cooling / Evaporative Cooling
|
|||
Max. Ambient Temp.
|
+45℃
|
|||
Supply Water Temp.
|
+23℃ to 18℃
|
|||
Condenser Temp.
|
+40℃
|
|||
Noise
|
55 DB
|
Flake Ice Machine Application
Dye chemical industry, large-scale concrete projects, large-scale fresh supermarkets, meat processing, large-scale wholesale fisheries markets, food processing companies, etc
