Product Details:
|
| Compressor: | Germany / Germany Bock/ America Copeland | Expansion Valve: | Denmark Danfoss |
|---|---|---|---|
| Solenoid Valve: | Italy Castel | Electrical Components: | LG |
| Refrigerant: | R507/R404a | Ice Shape: | Tube Ice/ Shell Ice |
| Ice Diameter: | 22mm; 28mm; 35mm | Cooling System: | Air Cooled, And Water Cooled |
| High Light: | Industrial Tube Ice Maker Machine,Semi Automatic Tube Ice Maker Machine |
||

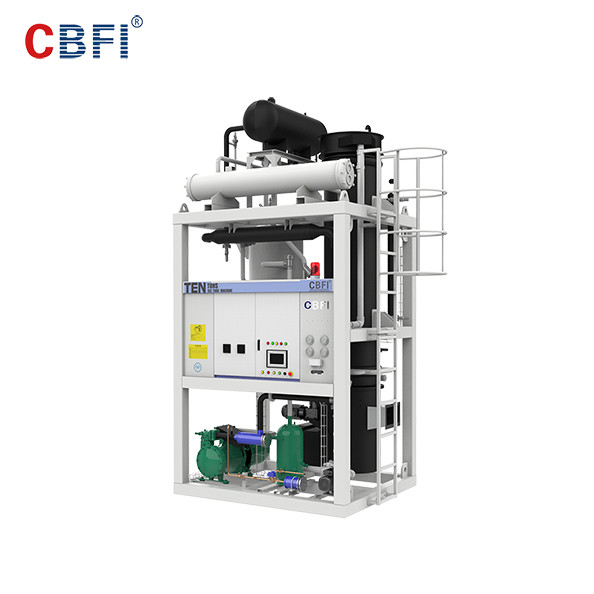

CBFI Industrial Tube Ice Maker Machine With Semi-automatic Packing
CBFI® Tube Ice Machine R&D History and Certificates
1. Started tube ice machine production in 2011.
2. In 2015, 20 tons Freon tube ice machine was successfully developed
3. In 2019, Large Ammonia Tube Ice Machine
CBFI has CE certificate for tube ice machine, and three inventional patents including tube ice making machine itself, a tube ice cutter, and a new kind of tube ice cutter.
Tube Ice Machine Features
Why Choose Us?
Superior R&D team
1. latest technology on the refrigeration system which reduce the electricity consumption
2. special design on the ice defrosting
3. CBFI's unique tube ice machine evaporator process
4. special design for the ice cutter.
Mature pre-sales and after-sales service
1. It can make different size tube ice.
2. Localized after-sales service in some countries.
3. Provide Installation or After-sales Service Global Wide.
Easy Operation
Fully automatic, easy installation, easy operation, easy maintenance
| Tube Ice Machine Parameters | |||||||
| Model | Daily output (T/24h) |
Compressor Power |
Fan Power for Cooling Tower | Cooling Pump Power |
Unit size (L*W*H mm) (Intergrated Type) |
Unit N.W. (kg) |
|
| TV10 | 1 | 4.1kw | 0.25kw | 1.1kw | 1100*900*1780 | 900 | |
| TV20 | 2 | 7.44kw | 0.25kw | 1.5kw | 1250*1000*1950 | 1200 | |
| TV30 | 3 | 10kw | 0.55kw | 1.5kw | 1300*1100*2200 | 1500 | |
| TV50 | 5 | 19.9kw | 0.55kw | 2.2kw | 1600*1400*2250 | 1800 | |
| Model | Daily output (T/24h) | Compressor Power |
Fan Power for Cooling Tower | Cooling Pump Power |
Unit size (L*W*Hmm)(Split Type) | Unit N.W. (kg) |
|
| Main Host | Brine Tank | ||||||
| TV100 | 10 | 27.9kw | 1.5kw | 4kw | 1900*1600*1850 | 1200*1200*3390 | 3500 |
| TV100+ | 10 | 39.8kw | 1.5kw | 4kw | 2400*1700*2000 | 1200*1200*3390 | 3700 |
| TV150 | 15 | 46.4kw | 1.5kw | 5kw | 2700*2000*2200 | 1500*1200*4250 | 4250 |
| TV200 | 20 | 55.7kw | 2.2kw | 7.5kw | 2800*2200*2200 | 1500*1200*4700 | 6500 |
| TV300 | 30 | 83.6kw | 2.2kw | 7.5kw | 3100*2200*2500 | 1800*1500*5700 | 7200 |
| TV400 | 40 | 111.4kw | 2.2kw | 11kw | 3900*2250*2500 | 2000*1500*6800 | 8300 |
| TV500 | 50 | 139.3kw | 3.75kw | 15kw | 4500*2250*2500 | 2200*1800*7200 | 9500 |
| ?Compressor Brand: / Frascold; Refrigerant: R507/R404A; Cooling Method: Water Cooling / Air Cooling; ? Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ? Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating):-12ºC. ? (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.) ? (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.) |
|||||||
It has a hollow or solid cylinder that is widely used for Cold drinkings, Restaurants, bars, café, Supermarkets and Convenience Store Food processings etc.
