Industrial 10 Ton Ice Tube Machine R717 Bacteria Free

Basic Information
Place of Origin: Guangzhou,China
Brand Name: CBFI
Certification: ISO, CE, BV, SGS
Model Number: TV100
Minimum Order Quantity: 1 set
Price: USD48000 - USD67000
Packaging Details: Standard wooden case for the 10 ton Tube ice machine
Delivery Time: 30 work days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 60 set per month
Detail Information
Cooling Pump: 4KW Dimension: 2300*1550*1800mm (Machine Unit) 1200*1200*3100mm(Evaporator)
Machine Weight: 3500 Kg Brand Name: CBFI
Daily Ice Production Capacity: 10000kg Ice Shape: Tube Ice
Refrigerant: Ammonia R717 Evaporating Temperature: -12℃
Power Supply: 380v 50hz 3phase Cooling Way: Water Cooling
Certification: CE
High Light:

10 Ton Ice Tube Machine

,

R717 Ice Tube Machine

,

Bacteria Free Ice Tube Machine


Product Description

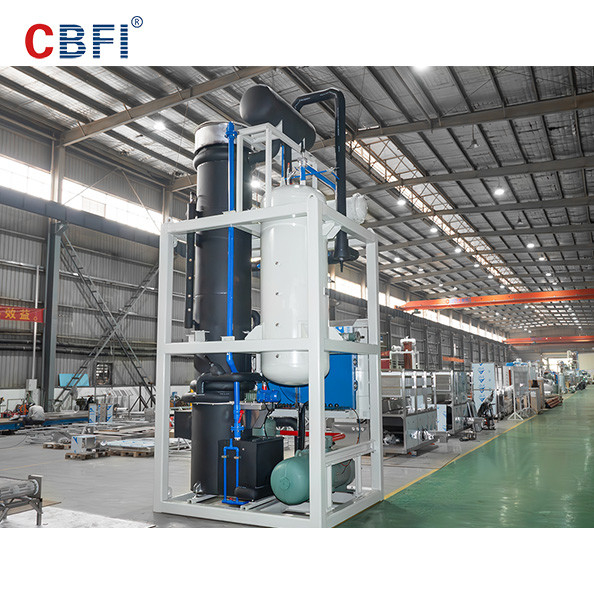

Ice Tube Machine Industrial Large Production 10ton Tube Ice Machine



10 ton tube ice machine is a split type ice machine. The ice making part is set apart from the main body, so that you can design the ice plant in a better way to use all the space. It is recommended to equip a screw type ice storage with cold source. Then the tube ice could last over night before packing.





Technical Specifications

TV100 10 ton Tube Ice Machine Parameters
Name Unit Parameter
Tube Diameter mm Φ22 Φ28 Φ35





Compressor Parameter

Model 6FE-50
Cooling Capacity(kW) 79
Power(kW) 27.9



Condenser

Model WN-55
Heat Exchange(kW) 164.5
Condensing Temperature Degree Celsius(℃) 40
Evaporating Temperature Degree Celsius(℃) -12
Ambient Temperature Degree Celsius(℃) 32
Water Temperature Degree Celsius(℃) 20
Refrigerant   Ammonia R717
Voltage V/P/HZ 380/3/50



Motor Power

Ice Cutting Motor(kW) 1.5
Recircling Pump(kW) 1.5



Cooling Tower

Model LX-60
Power(kW) 1.5



Cooling Pump

Model GD80-21
Power 4
Cooling Fan Power Power(kW) 1.5
Water Cooling Machine Dimension L*W*H(mm) 1900*1600*1850
Refrigerant Quantity kg 250 275 30
Machine Weight kg 3500




Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 0


Working Conditions



Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 1



Product Characteristics



1. Use hot Freon gas to make ice fall off fast with the whole process takes only 150~180 seconds.
2. After the ice is off, the water of low temperature is used for ice-making, saving energy consumption and increasing the volume of production of ice.
3. With the unique water distributive pan and air mouth, the water can evenly flow on the tube wall of the evaporator spirally, so it improves the efficiency of heat transfer.

4. Making every ton of ice just need 80kw.h, saving electricity power

5. Use of stainless steel SUS304, make sure the ice is purified and safe.

6. Adopt PLC control system, make ice, deice, clean machine and check problems automatically.

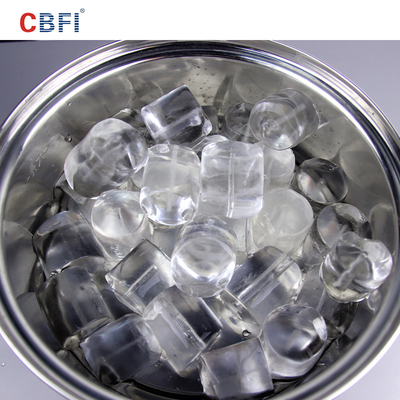

7. Tube ice is 100% transparent, purified, bacteria-free, reaching food grade



Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 2



Application



Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 3



A Whole Set of Tube Ice Maker Machine Equipment



  • 10 tons tube ice maker machine: make tube ice
  • 500L RO water filter: purify water to make ice reach food standard
  • 500L Water Tank: store purified water
  • Water Chiller: precool ice making water to improve refrigeration efficiency
  • Ice packing equipment: pack ice into bags
  • 50m³ ice storage cold room: store tube ice in low temperature

Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 4Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 5



Company Profile



  • CBFI is based in beautiful city, Guangzhou, China. Company area covers about 14000㎡.
  • Our company has got ISO9001 certifcate,ISO14001 certificate,ISO18001, and our products all have CE certificates. Our machines can work efficiently, safely and stably.
  • Our machine production reachs high degree of automation, having high production capacity.
  • We have high-efficient and expertise R&D team and professional technicians, which are the powerful support for high quality.
  • CBFI has 1 invention patent and 12 practical patents,rated as Guangdong High-tech Enterprise and Guangdong Top500 Innovation Enterprise.
  • Dating back to 2001, CBFI has more than 15-year experience in producing ice maker machines and cold rooms. Our machines hve been sold to about 130 countries around the world.



Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 6



CBFI Welome all of you to Visit our factory



Industrial 10 Ton Ice Tube Machine R717 Bacteria Free 7
